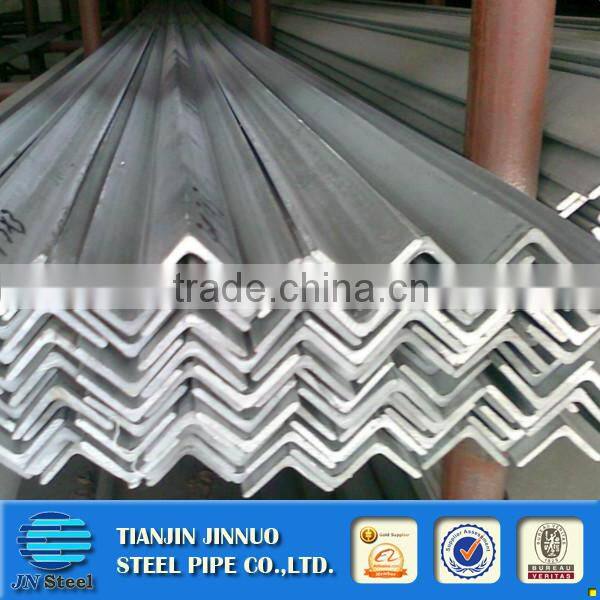

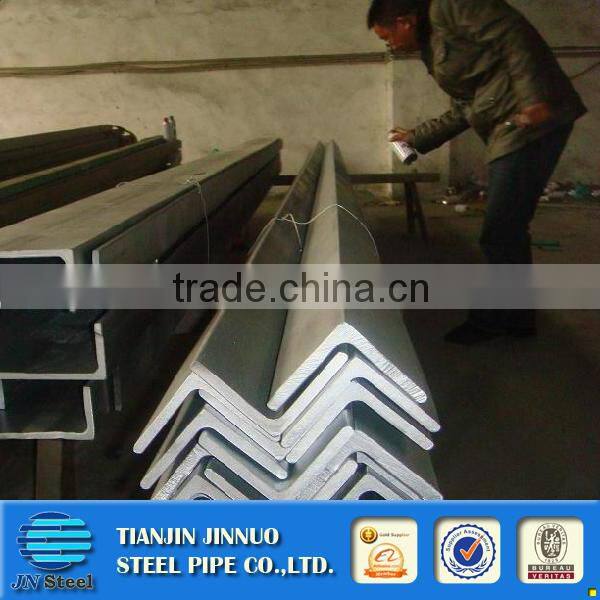

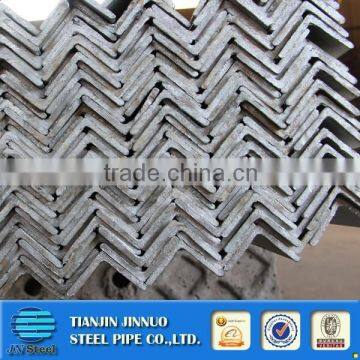

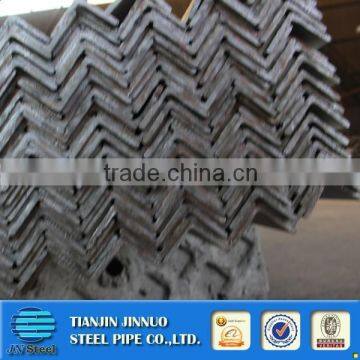

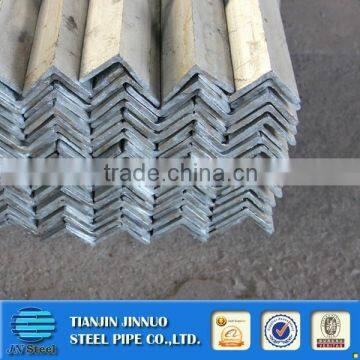

Hot Rolled Angle Steel 100x100
- xingang port tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Standard | AISI, ASTM, BS, DIN, GB, JIS | Dimensions | 20*20*3---200 *200*24mm | |
| Grade | S235JR-S335JR Series | Place of Origin | Tianjin, China | |
| Brand Name | jinnuo | Model Number | q235 | |
| Type | Equal | Application | construction |
Product Description
Specifications
hot rolled equal steel angle

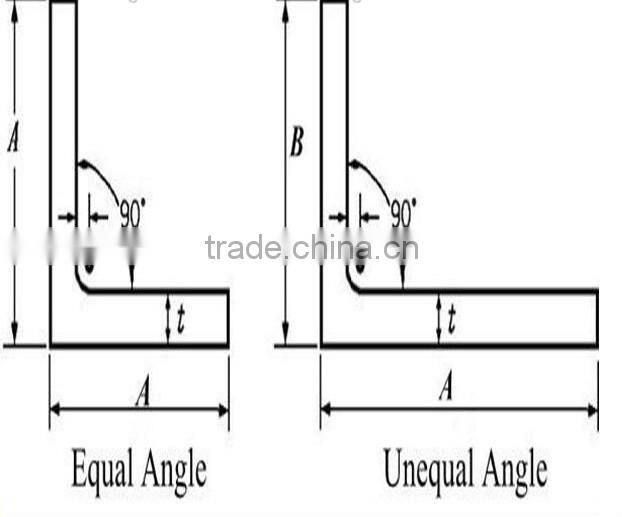

Type:equal,unequal
Material:Q195-345 SS400
Length:3000-12000mm
Application:construction
Hot rolled equal steel angle
1) Material: SS400, ST37-2, A36, S235JRG1, Q235, Q345 etc.
2) Size: 20*20*3---200 *200*24mm,
3) Thickness:3-18mm
3) Length: 6meter, 9meter, 12meter

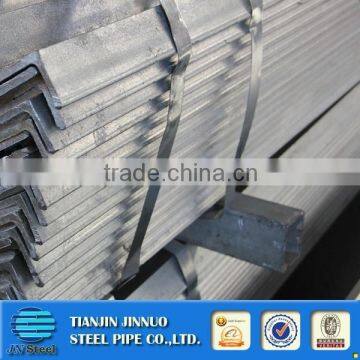

4) Packing: In Bundles by export standard (according to client's requests)
5) Payment Terms: L/C / T/T
6) Minimum Order Quantity: 20 Tons
7) Delivery Time: within 25 days after receiving the deposition
Specification | Weight (kg/m) | Specification | Weight |
25*25*3 | 1.124 | 90*90*8 | 10.946 |
25*25*4 | 1.459 | 90*90*10 | 13.476 |
30*30*3 | 1.373 | 100*100*6 | 9.366 |
30*30*4 | 1.786 | 100*100*7 | 10.83 |
40*40*3 | 1.852 | 100*100*8 | 12.276 |
40*40*4 | 2.422 | 100*100*10 | 15.12 |
40*40*5 | 2.976 | 100*100*12 | 17.898 |
45*45*3 | 2.088 | 110*110*7 | 11.928 |
45*45*4 | 2.736 | 110*110*8 | 13.532 |
45*45*5 | 3.369 | 110*110*10 | 16.69 |
50*50*3 | 2.332 | 110*110*12 | 19.782 |
50*50*4 | 3.059 | 125*125*8 | 15.504 |
50*50*5 | 3.77 | 125*125*10 | 19.133 |
50*50*6 | 4.465 | 125*125*12 | 22.696 |
63*63*5 | 4.822 | 125*125*14 | 26.193 |
63*63*6 | 5.721 | 140*140*10 | 21.488 |
63*63*8 | 7.469 | 140*140*12 | 25.522 |
70*70*5 | 5.397 | 140*140*14 | 29.49 |
70*70*6 | 6.406 | 160*160*10 | 24.729 |
70*70*7 | 7.398 | 160*160*12 | 29.391 |
70*70*8 | 8.373 | 160*160*14 | 33.987 |
75*75*5 | 5.818 | 160*160*16 | 38.518 |
75*75*6 | 6.905 | 180*180*12 | 33.159 |
75*75*7 | 7.976 | 180*180*14 | 38.383 |
75*75*8 | 9.030 | 180*180*16 | 43.542 |
75*75*10 | 11.089 | 180*180*18 | 48.634 |
80*80*6 | 7.376 | 200*200*14 | 42.894 |
80*80*7 | 8.525 | 200*200*16 | 48.68 |
80*80*8 | 9.658 | 200*200*18 | 54.401 |
80*80*10 | 11.874 | 200*200*20 | 60.056 |
90*90*6 | 8.35 | 200*200*24 | 71.168 |
90*90*7 | 9.656 |
|
