Shotcrete Machine Gunite Machine Machine
| Model | PZ-5 Electric | PZ-7 Electric | PZ-5 Gas Driven | PZ-5 Diesel | |
| Output | 5m3/h | 7m3/h | 5-6m3/h | 5m3/h | |
| Max. Convey Distance | Horizontal | 200m | 200m | 200m | 200m |
| Vertical | 20m | 20m | 20m | 20m | |
| Use ratio of material | Cement/Dinas 1:3-5 | Cement/Dinas 1:3-5 | Cement/Dinas 1:3-5 | Cement/Dinas 1:3-5 | |
| Water Cement Ratio | ≤0.4-0.45 | ≤0.4-0.45 | ≤0.4-0.45 | ≤0.4-0.45 | |
| Max. Aggregate Size | Ø 20mm | Ø 20mm | Ø 15mm | Ø 20mm | |
| Hose Inner Diameter | Ø 51mm | Ø 64mm | Ø 51mm | Ø 51mm | |
| Operating Air Pressure | 0.4~0.6MPa | 0.4~0.6MPa | 0.2~0.6MPa | 0.4~0.6MPa | |
| Air Consumption | 7-8m3/min | 8-10m3/min | 8-9m3/min | 7-8m3/min | |
| Filling Height | 1.1m | 1.1m | 1.1m | 1.1m | |
| Rotor Speed | 11r/min | 11r/min | 11r/min | 11r/min | |
| Rotor Diameter | 438mm(160) | 480mm(160) | 440mm | 438mm(160) | |
| Motor Power | Y132-6-5.5kw | Y132-6-7.5KW | / | / | |
| Vibration Motor | 0.3KW | 0.5KW | / | 0.3KW | |
| Voltage | V | V | / | V | |
| Wheel Tread | 600mm | 600mm | 600mm | 600mm | |
| Dimension | 1520*820*1280(mm) | 1520*820*1280(mm) | 1710*960*1450(mm) | 1520*820*1280(mm) | |
Features:
1. We can change the color according to your actual requirements.
2. Customized the voltage motor based on your country.
3. Choose the different wheel according to your needs.
Professional production team, production line, experienced technical experts who engaged in this industry for more than 10 years.
machine.
The main advantage of this technology of spraying concrete is, in particular, its top rate of discharge from the jet (up to 30 m/s) which
enables perfect consolidation of the concrete mixture and high strength of the sprayed concrete. Another important feature is the long distance
transfer which enables the application of concrete mixture at hard to access places (up to 200 m horizontally and 20 m vertically).

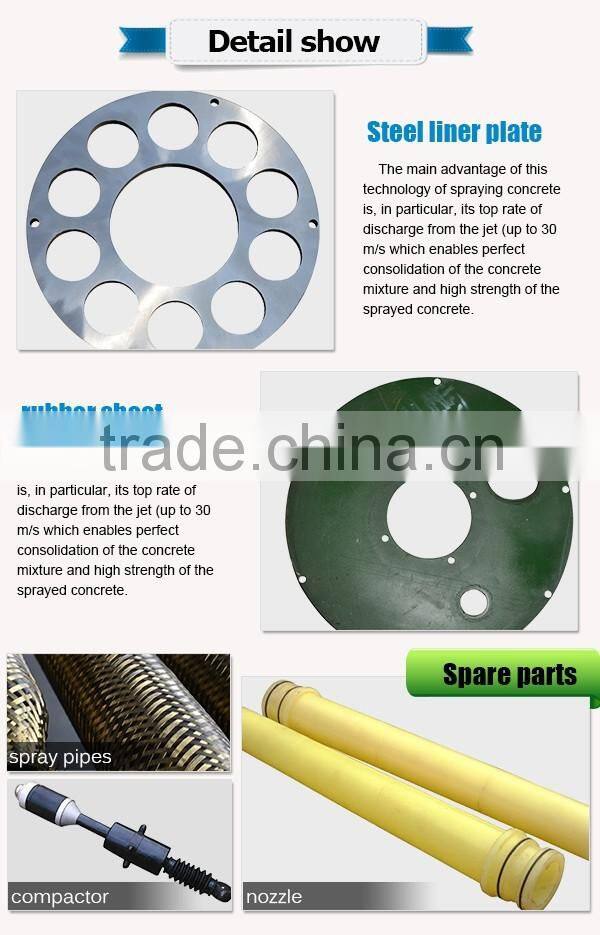

We have the professional production line for the main wearing parts about shotcrete machine:
1.Delivery Buber Hose: More durable than normal kind buber pipe, weaved by the quality steel wire, high resist compression ability, high wear resistance.
2.Rubber Sealing Plate: Adopt nature rubber, working time can meet 400m3.For the normal kind can only meet 130m3.
3.Rotor Disk: Casting by quality carbide tools, The working time is 3-5 times than normal kinds,and can meet 600-800m3,it's prefect for the rotor type shotcrete machine.
Warm tips: Shotcrete machine wearing parts, please prepare more original accessories when purchasing machine.
Standard export package,fumigation-free wooden case to protect the machine from long-distance delivery.
1000 sets/month
Shotcrete machine Application:

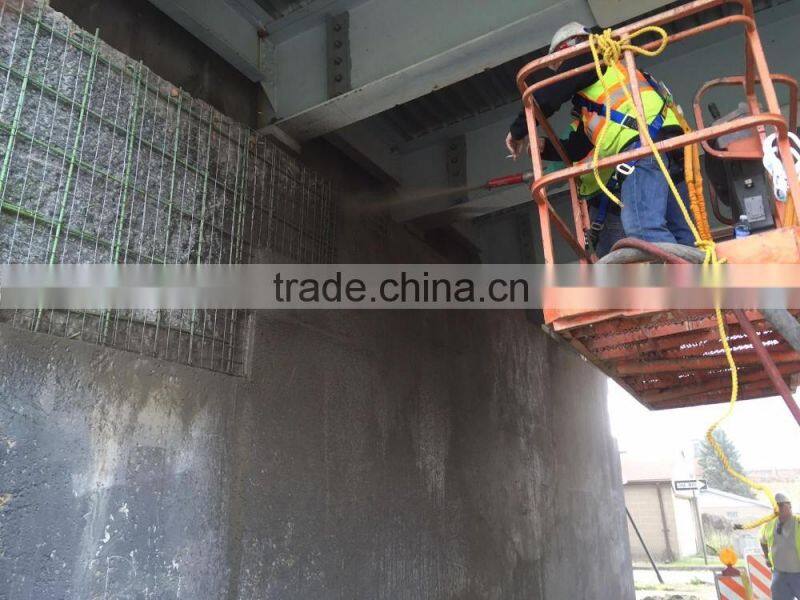

Shotcrete machine are mainly used for railway and highway, subterranean basement walls, Seismic
reinforcing/ retrofitting of buildings, channels, shear Walls, retaining Walls, bridge retrofits, architectural concrete,
mining, tunnel, culvert, subway, hydropower engineering(such as tunnels,dams and pools) and underground excavation engineering etc.
It has many obvious advantages such as simple structures, easy operation and convenient after sales service and very long serviceable life etc.

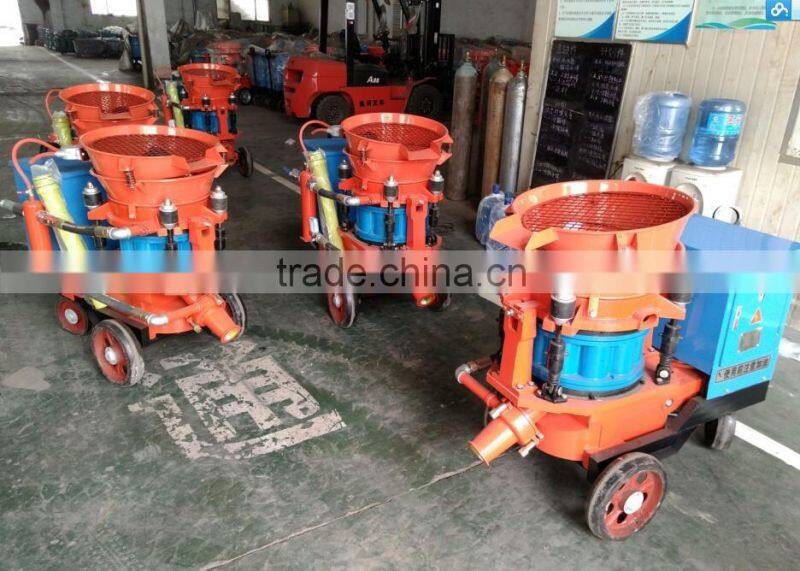

The exclusive exhibition of our company can show all the machines and accessories. Sincerely welcome your visit and on-site testing machine.
Factory Yard Video:/watch?v=OI72hZdZlpw

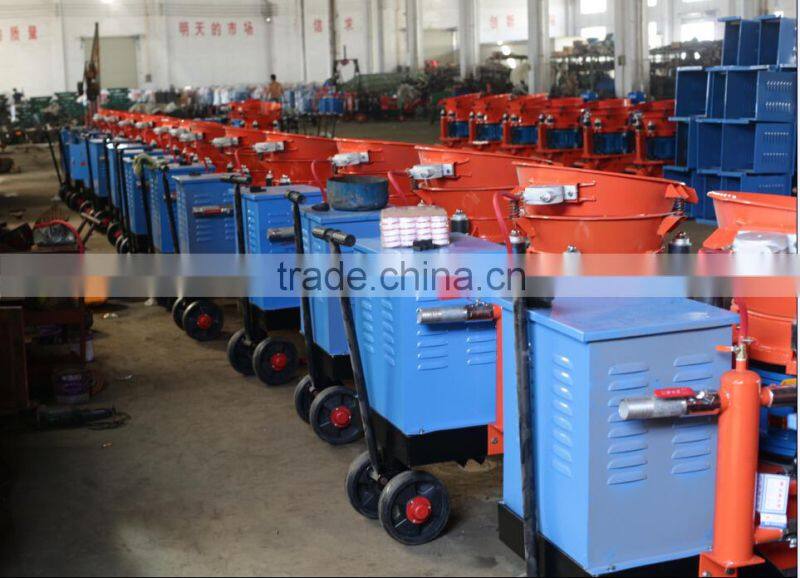

Standard production, strict and regulate assembly line work, strict quality control and inspection.
Professional sales and after sale service team, timely and efficiently to solve your problem.
Our company go through the international BV certification authority, and we have the ability to provide you the products with reliable quality, competitive price and timely service.
Sincerely welcome you to visit, consult and negotiate business.
Packaging :
Free fumigation safe Wood case package.
MOQ
1set can be acceptable for trail order.
Over 3sets can have wholesale price. Welcome to join us as our sales agent in your market.
OEM and ODM
changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable
QC
Third party inspection : acceptable
1 year guarantee for quality problems
Delivery time:
1 week for our own design.(motor:380v 50hz 3phases)
15-25days for customized model.
Payment :
TT, 30% deposit ,70% before shipment.
L/C at sight (high bank charge, not suggest , but acceptable )
100%TT in advance (specially for air shipment or small amount)
Available shipment by :
FOB Qingdao
FOB shanghai
