Home > Products > Yingchuan Products > high quality concrete dry shotcrete machine for construction and coal mine
high quality concrete dry shotcrete machine for construction and coal mine
- 1000 Set / Sets per Month
- SHANGHAI QINGDAO
- T/T Credit Card
Product Details
Condition: | New | Max. Conveying Distance: | Horizontal:200m Vertical: 20m | Max Aggregate Size: | 20mm |
Hose Inner Diameter: | 51 mm | Air Consumption: | 7-8m3/min | Place of Origin: | Henan, China |
Brand Name: | YINGCHUAN | Model Number: | PZ-5 | Voltage: | 380V or as your request |
Power(W): | 300 | Dimension(L*W*H): | 1280x700x1280mm | Weight: | 600kg |
Certification: | ISO9001:2008, ISO9001:2008 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
high quality concrete dry shotcrete machine for construction and coal :
Main Technical Parameter:
Model | PZ-5 Electric |
Output | 5m3/h |
Max. Convey Distance | Horizontal:200m Vertical: 20m |
Water Cement Ratio | ≤0.4 |
Max. Aggregate Size | Ø 20mm |
Hose Inner Diameter | Ø 51mm |
Rotor Diameter | Ø 438mm |
Operating Air Pressure | 0.4~0.6MPa |
Air Consumpution | 7-8m3/min |
Motor Power | Y132-6-5.5kw |
Voltage | 380V or as your request |
Dimension | 1280x700x1280(mm) |
Net Weight | 600KG |
Wheel | Nylon Wheel;Rubber Wheel;Skid Wheel;Rail Wheel |
Characteristics:
1. We can change the color according to your actual requirements.
2. Customized the voltage motor based on your country.
3. Choose the different wheel according to your needs.
The main advantage of this technology of spraying concrete is, in particular, its top rate of discharge from the jet (up to 30 m/s) which enables perfect consolidation of the concrete mixture and high strength of the sprayed concrete. Another important feature is the long distance transfer which enables the application of concrete mixture at hard to access places (up to 200 m horizontally and 20 m vertically).
Professional production team, production line, experienced technical experts who engaged in this industry for more than 10 years.
We have the professional production line for the main wearing parts about shotcrete machine:
1.Delivery Rubber Hose: More durable than normal kind rubber pipe, weaved by the quality steel wire, high resist compression ability, high wear resistance.
2.Rubber Sealing Plate: Adopt nature rubber, working time can meet 400m3.For the normal kind can only meet 130m3.
3.Rotor Disk: Casting by quality carbide tools, The working time is 3-5 times than normal kinds, and can meet 600-800m3, it's prefect for the rotor type shotcrete machine.

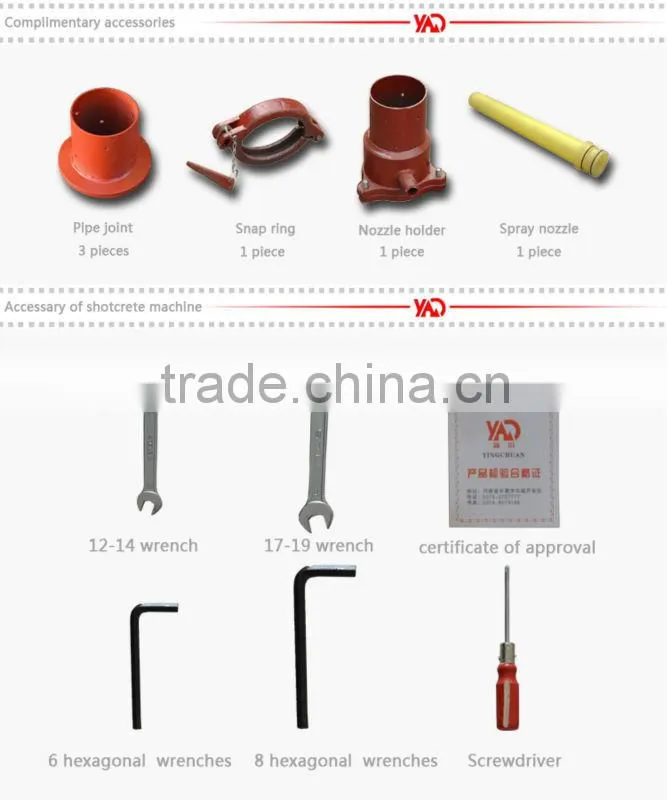

Warm tips: Shotcrete machine wearing parts, please prepare more original accessories when purchasing machine.
Standard export package, fumigation-free wooden case to protect the machine from long-distance delivery.
Production capacity:1000 sets/month
Shotcrete machine are mainly used for railway and highway, subterranean basement walls, Seismic reinforcing/retrofitting of buildings, channels, shear Walls, retaining Walls, bridge retrofits, architectural concrete, mining, tunnel, culvert, subway, hydropower engineering(such as tunnels,dams and pools) and underground excavation engineering etc.
The exclusive exhibition of our company can show all the machines and accessories. Sincerely welcome your visit and on-site testing machine.
Our company go through the international BV certification authority, and we have the ability to provide you the products with reliable quality, competitive price and timely service.
Professional sales and after sale service team, timely and efficiently to solve your problem.
Sincerely welcome you to visit, consult and negotiate business.
