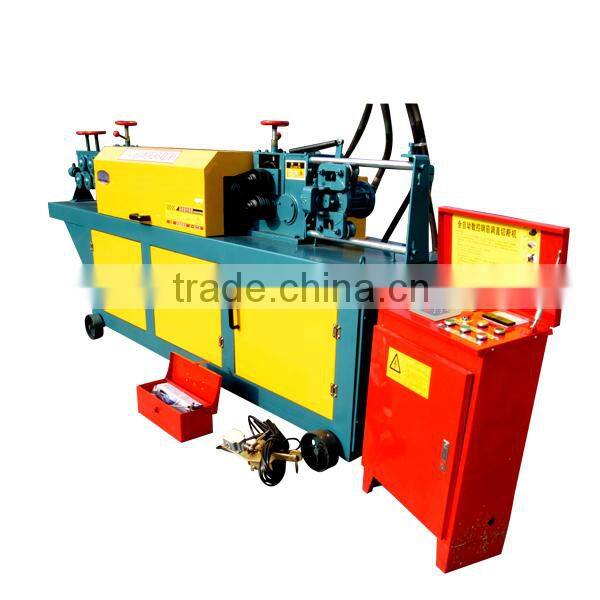

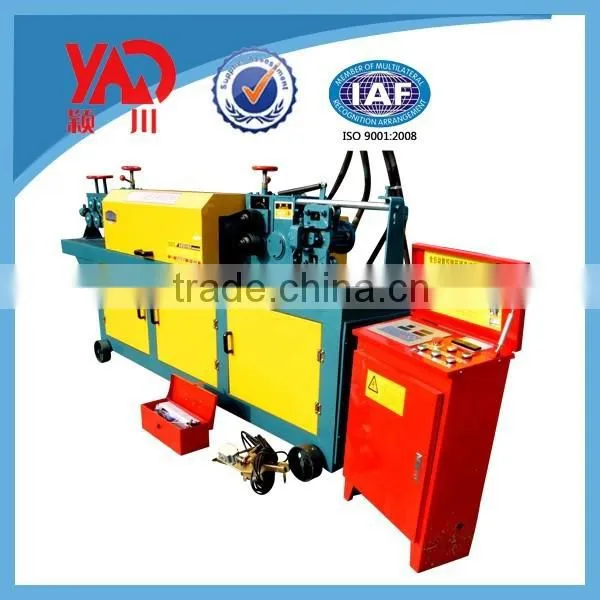

wire straightening & cutting 14mm straightener machine /iron and rebar type
Technical Parameters :
model |
YGT4-14 |
Cut the length of reinforcement |
0.3m-99m |
The normal length of error |
±8mm |
The motor power |
7.5kw |
Power supply |
380V/50Hz three-phase alternating current(ac) |
Straightening cutting off steel bar diameter |
Ø 4- Ø 14mm |
Overall dimensions |
1900*600*1050mm |
Advantages:
1. Worry-saving: The main components can LAST FOR TEN YEARS which almost cost you nothing for maintenance.
2. Time-saving: TWO TIMES THE CUTTING NUMBER of the normal steel bar cutter.
3. Labor-saving: Cut different sizes of steel bar WITHOUT CHANGING the blade.
4. Easy operation.
5.Working Place:The most suitable working place should be harden ground.Please laying star tiles,iron plate, wooden plate or something smooth for normal earth.
Characteristics:
Adopt the TOTALLY ENCLOSED TYPE CASE, featured with high security.
2. The straightening motive power came from the large power motor which can ensure a LONG TIME STABLE OPERATION.

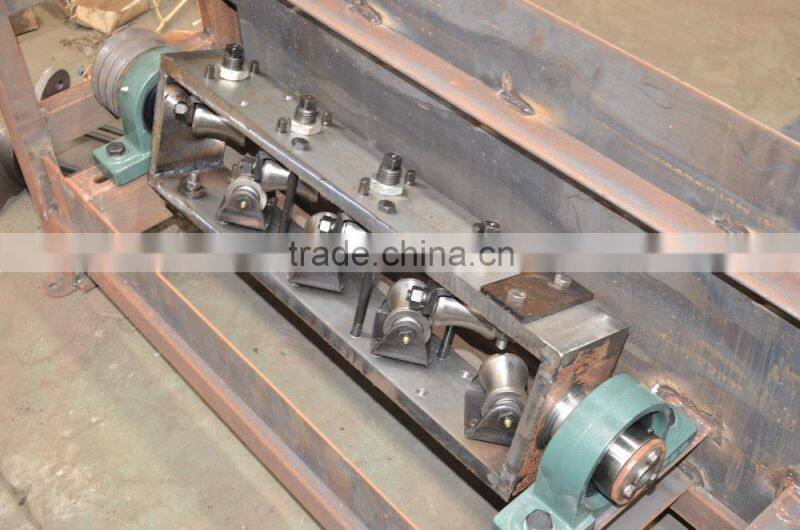

3. The installation of traction and straightening motive power adopt ADJUSTABLE STRUCTURE, which is easy to maintain.
4. Adopt cartridge valve, featured with COMPACT STRUCTURE and CONVENIENT ADJUSTMENT.
5. The oil-way controlling part is hidden under the panel which can RESIST DUST EFFCTIVELY.
6. The feed inlet adopt rotary scuff sleeve, featured with SIMPLE STRUCTURE and EASY CHANGE.
7. Part of the funnel structure was closed which is convenient for DUST-CLEANING.
8. The structure of the cradle is more RESONABLE, as well as new appearance

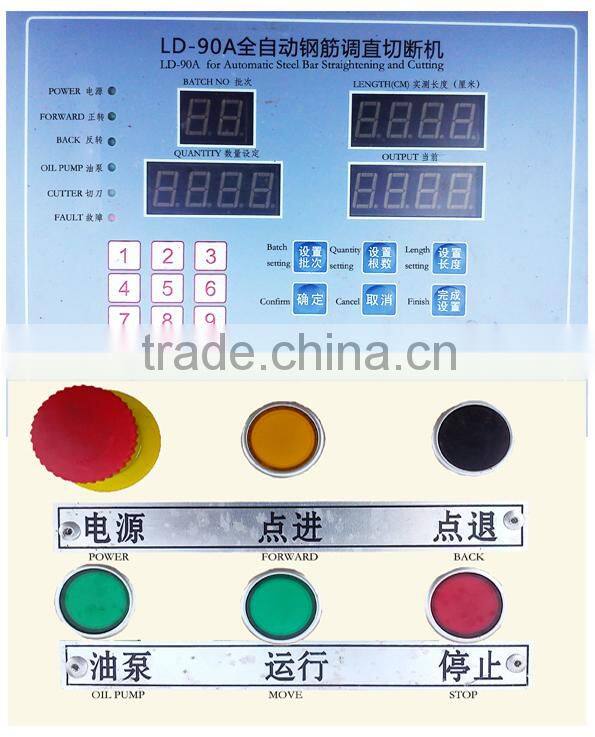

9. Adopt movable operating button which is EASY TO OPERATE.

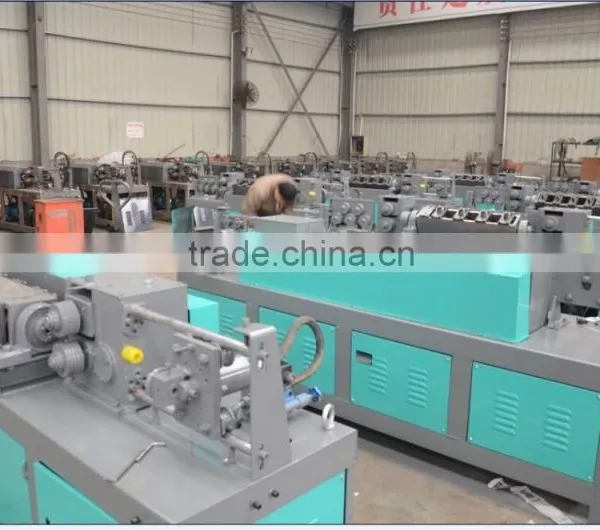

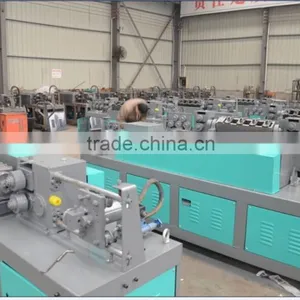

Professional production team, production line, experienced technical experts who engaged in this industry for more than 10 years.
Standard export package,fumigation-free wooden case to protect the machine from long-distance delivery.
Production Capacity:1000 sets/month

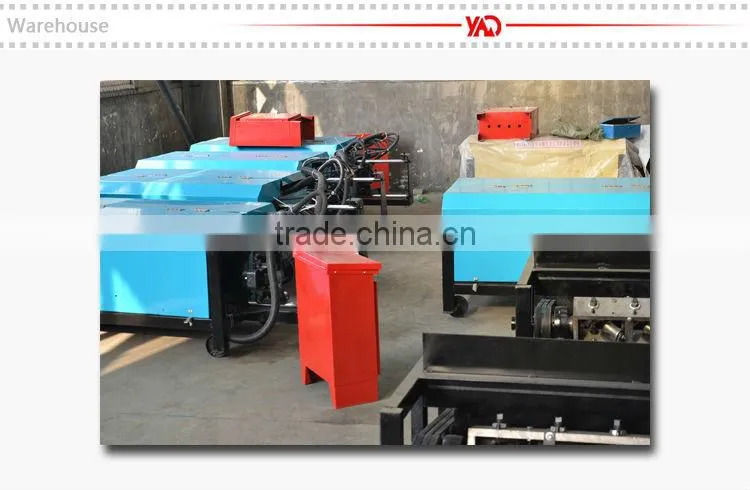

The exclusive exhibition of our company can show all the machines and accessories. Sincerely welcome your visit and on-site testing machine.
Standard production, strict and regulate assembly line work, strict quality control and inspection.
Our company go through the international BV certification authority, and we have the ability to provide you the products with reliable quality, competitive price and timely service.
Sincerely welcome you to visit, consult and negotiate business.
Packaging :
Free fumigation safe Wood case package.
MOQ
1set can be acceptable for trail order.
Over 3sets can have wholesale price. Welcome to join us as our sales agent in your market.
OEM and ODM
changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable
QC
Third party inspection : acceptable
1 year guarantee for quality problems
Delivery time:
1 week for our own design.(motor:380v 50hz 3phases)
15-25days for cusmoized model.
Payment :
TT, 30% deposit ,70% before shippment.
L/C at sight (high bank charge, not suggest , but acceptable )
100%TT in advance (specially for air shipment or small amount)
Available shipment by :
FOB Qingdao
FOB shanghai
