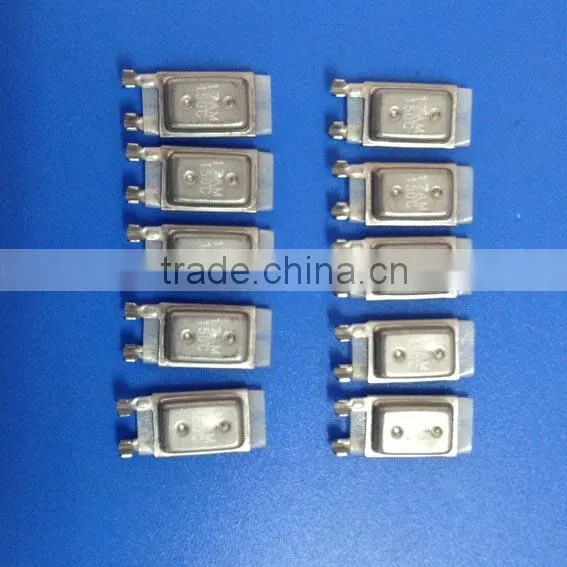

17AM thermal protector,thermal overload protector,thermal overload protector switch

17AM thermal protector,thermal overload protector,thermal overload protector switch , thermal cutoff, thermal cutout, overload protector,  bimetal thermostat switch, temperature limiter

Snap action thermal protector , automatic reset type with UL,VDE, CB, CCC , Rohs compliant

Work principle:

17AM thermal protector is a temperature automatic response devide and is connected in series to the winding of motor. The contacts open on temperature rise and reset after the temperature drops down.

Application:

17AM thermal protector has the following characters: the structure is advanced, the volume is very small, the action is sensitive, large in contact capacity, long life and so on. It’s widely used and protect electric motor; ballast of fluorescent lamp;transformer; DC motor of automobile; integrated circuit and general electric appliance.

Main features:

 Double protection of over current and over heat

Snap action, normal closed, auto reset

Contact rating: 125VAC 16A/ 20VDC 20A/ 250VAC 8A /250VAC 9A
Thermal switch dimension:23.5X10.5X4.7mm

Open Temperature: 50C to 180C,  in 5C increasement

Tolerance for open temperature: +/-5C

Cable:Stardard:AWG18, 65mm long, special requests accepted

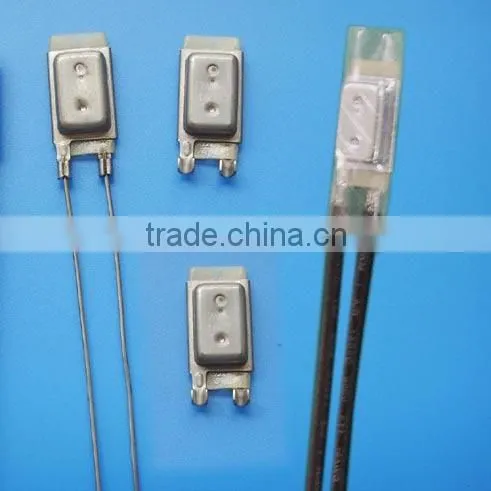

Terminals on same side or on opposite sides.

Suitable for most varnishing processes

Approval: UL,VDE, CB, CCC, Rohs compliant

Advantage:

Advance equipments, automatic production line, large production capacity and high quality guaranteed.

 Dimension:

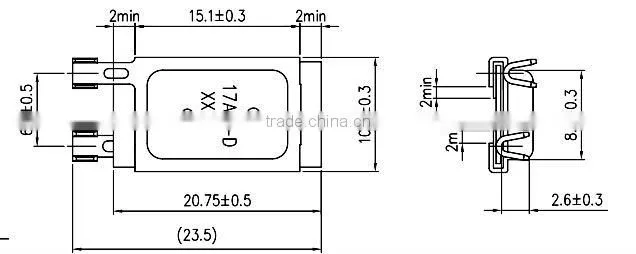

A type:

B type:

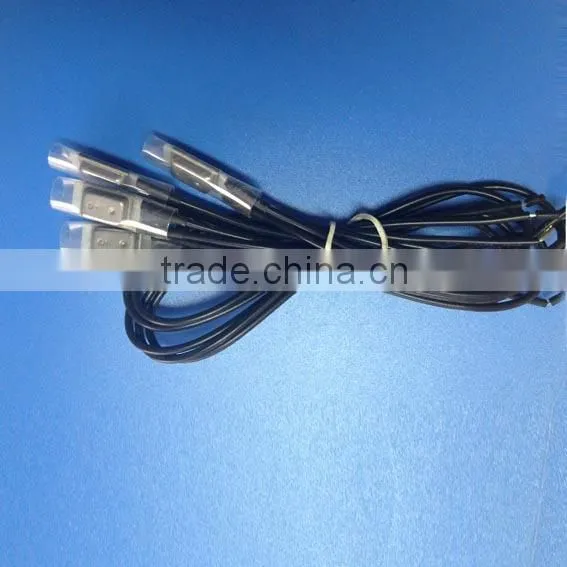

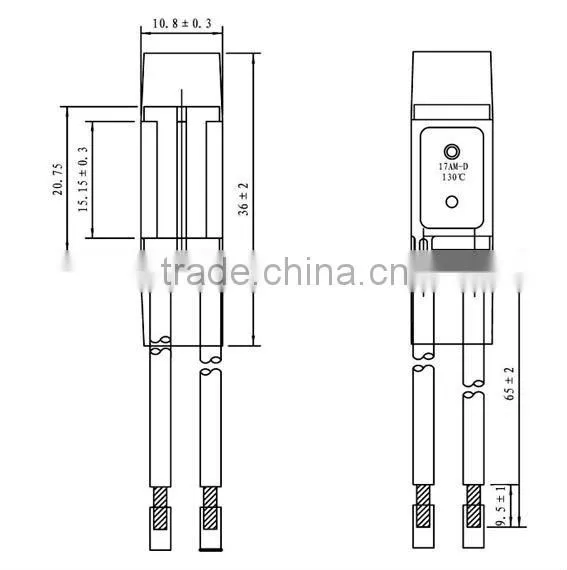

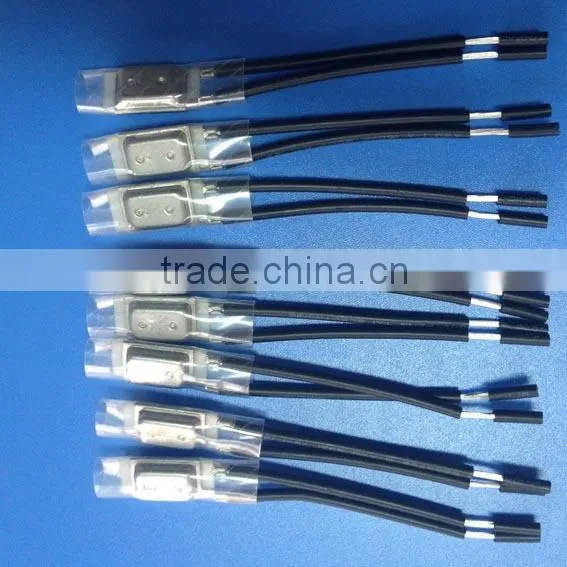

A type: with leadwire and with insulation sleeve, the cable and length can be made according to customer's request:

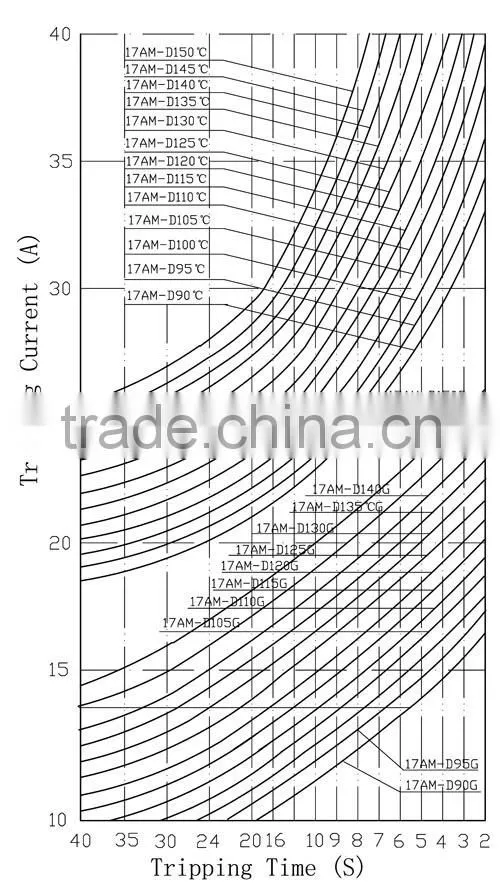

Tripping Current Vs Tripping Time at the Ambient Temperature of 25℃

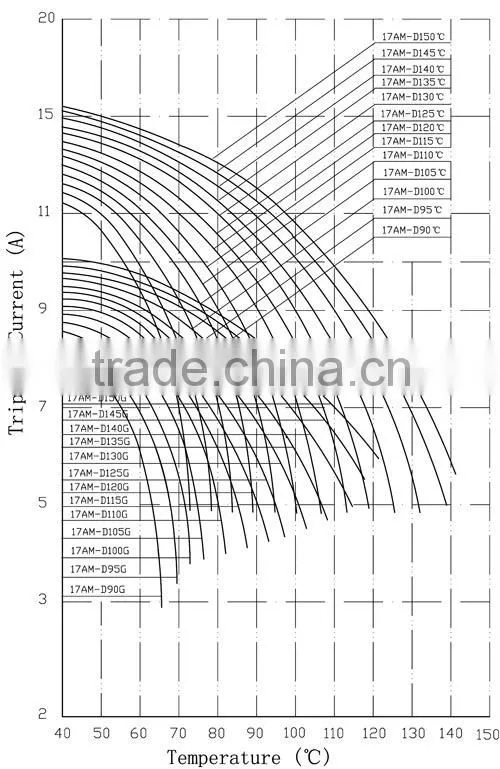

Ultimate Tripping Current Vs Ambient Temperature ( for reference only)

Production Equipments:

Bimetal forming machine:

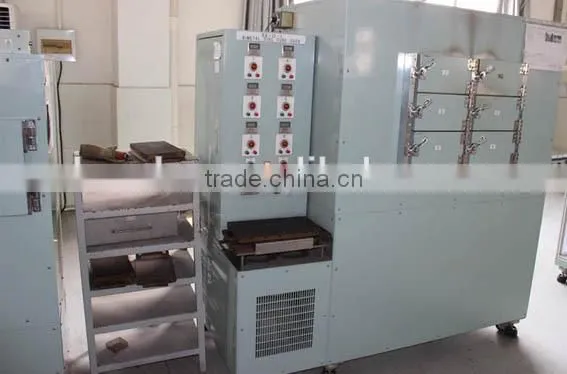

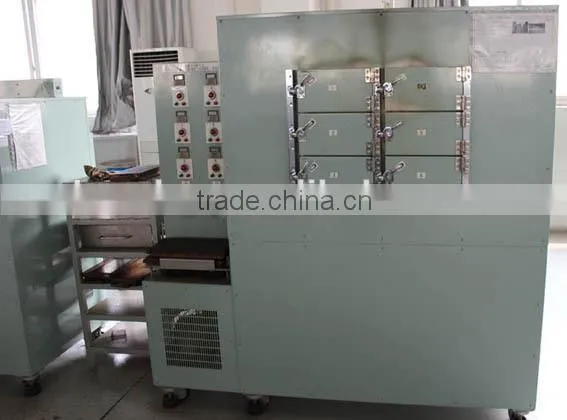

Stabilization Oven:

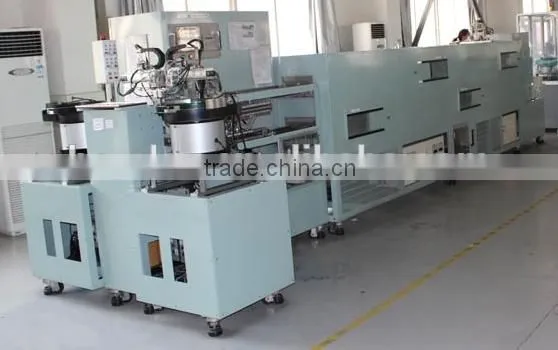

Auto welding machine:

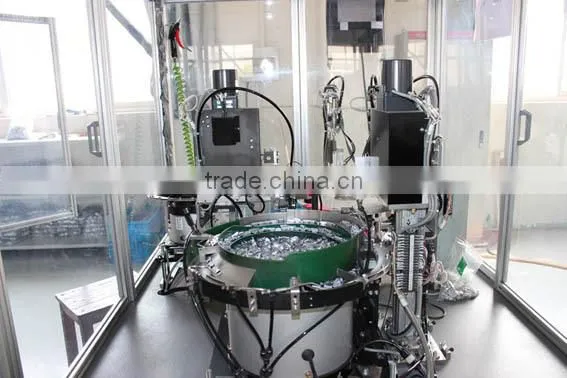

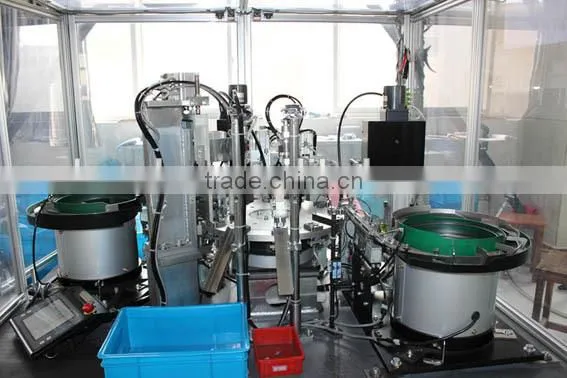

Auto assembly machine:

Testing machine:

Goods ready to be delivery:

Storage Condition:

During the transport and storage, the packages can not be exposed to snows or rains, and should avoid strong force outside.  It shouId be stored in a dry and ventilative warehouse.

Customers' special requests accepted. Pls contact us for more.
