Help CenterCold Winter House Floor Heating -15C Glycol Circle Loop 10kw/15kw/20kw/25kw dc Inverter Geothermal Ground Heat Pump Water Heater
Related Products
-
Snow Winter Floor Heating 120sq Meter House 10KW/220V by EVI Tech -15C Glycol Circle Loop Geothermal Ground Source Pump HeaterUS$ 1,235 - 1,607MOQ: 1 Set -
-25C Cold Winter House Heating+DHW 10kw/15kw/20kw by -15C Glycol Loop Geothermal Heat Pump Industry Heating SystemUS$ 1,186 - 1,607MOQ: 1 Set
-
Extramely -25C Winter Heating Room High COP4.65 220V/10kW EVI Tech.geothermal Glycol/ Brine Water Small Ground Source Heat PumpUS$ 1,466 - 1,607MOQ: 1 Set
-
20kW/10kW Glycol Inlet Brine Water Source Heat Pump Using Minus 25C Extramely Cold Winter Floor Heating and AirUS$ 1,466 - 1,607MOQ: 1 Set
-
Minus 25C Cold Area Hot Water Shower 55C DHW 10kw/15kw/20kw/25kw R407C EVI Geothermal Ground-source Heat PumpUS$ 1,466 - 1,607MOQ: 1 Set
For newest DC Inverter Heat Pump ,pls enter the following Center:
SUNCHI Energy Company Brief
Jiangsu sunchi new energy Co.,Ltd., established in 2005, located in changzhou city , jiangsu province, Sunchi is an professional manufacturer focus on researching, production, service of air source heat pump , ground water source heat pump and solar air conditioner.
Sunchi has got the CE,CB,EN14511 certificate from TUV Lab, and also passed the Australia and New Zealand JAS-ANZ certificate, got ISO9001. ISO18001, ISO14001 and CCC certificate. Now applying European ErP Certificate from TUV lab. Currently the products has been exported to Western Europe, North Europe, South Africa, Middle-East, South American and Australia market.
Sunchi builded new 75,000 Watts multi-function Enthalpy Difference Laboratory In 2012 year, this lab using to strictly control qulity.
Sunchi company offer OEM , ODM co-operation for worldwild business partner , welcome join ours team.

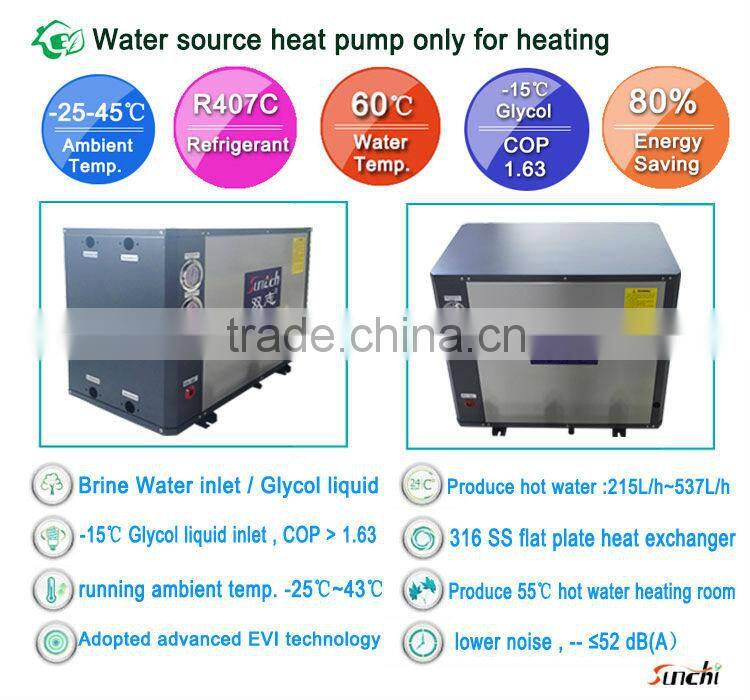

Product Introduction

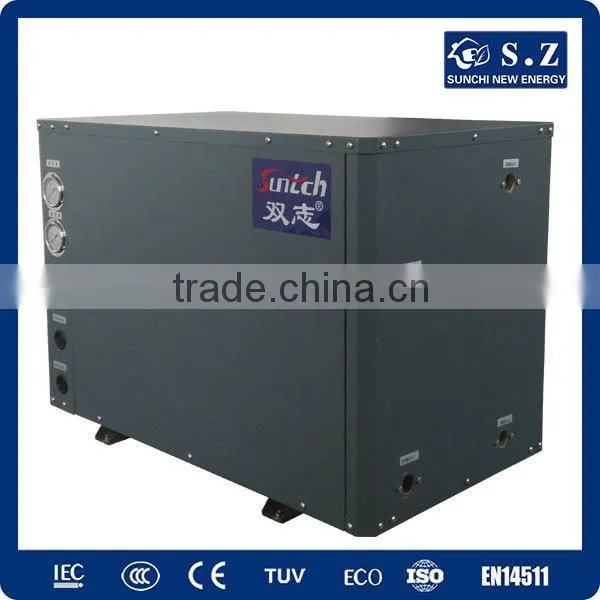

- SUNCHI--EVI Water source / Ground source /geothermal heat pump /GSHP ( suit for home heating )
- Small Capacity 10Kw/ 220V power more popular by family heating
- Brine Water inlet / Glycol liquid all can running in the heating source loop
- -15ºC Glycol liquid inlet machine , COP more than 1.63
- -5ºC Glycol liquid inlet machine , COP more than 2.3
- High efficient and ECO friendly refrigerant , no pollution
- Adopted advanced EVI technology make the glycol can stand -20ºC ( inlet heat source loop)
- Small size 960*560*680mm make install more easy and take less place
- lower noise , running quiet -- ≤52 dB(A)
- Choose 316 SS flat plate heat exchanger--fast transfer
- Produce 55℃ hot water : can be using DHW , heating room
- Focus on single heating function make machine longer using life more than 12 years
- Discharge Side Over Pressure : 4.4mPa
- Produce hot water :215L/h~537L/h
- Cover can be make into Stainless steel as requirement
- Just input 2.15KW electric power can produce 10KW heating capacity
- SUNCHI water to water heat pump suit very cold weather,snow winter, running ambient temp. -25ºC~43ºC
- Digital LED display , auto running / ON& OFF after setting water temp.
-
Multi self-protection functions : high & low pressure , Over current , over load , phase miss, high temperature, water flow and antifreeze protection
Parameter
| Water Source Heat Pump | |||||
| Model | SFXRS-10I | SFXRS-15I | SFXRS-20II | SFXRS-25II | |
| Horse Power | HP | 2.5HP | 4HP | 5HP | 6HP |
| Heating Capacity | kW | 10 | 15 | 20 | 25 |
| Btu/h | 34120 | 51180 | 68240 | 85300 | |
| Rated Input Power | kW | 2.15 | 3.29 | 4.33 | 5.34 |
| Rated Input Current | A | 10.3 | 15.7 | 7.7 | 9.5 |
| Max Input Power | kW | 2.8 | 4.28 | 5.63 | 6.94 |
| Max Input Current | A | 13.4 | 20.5 | 10 | 12.6 |
| COP | W/W | 4.65 | 4.56 | 4.62 | 4.68 |
| Power Supply | 220V/1PH/ 50Hz | 380V/3PH/ 50Hz | |||
| Electric Shock Protection Grade | I | ||||
| Waterproof Grade | IPX4 | ||||
| Operating Ambient Temperature | -25ºC~43ºC | ||||
| Produce Hot Water Temperature | 55ºC | ||||
| Hot Water Yield | L/h | 215 | 322 | 429 | 537 |
| Heating Source Pipe Size | DN | 25 | 25 | 25 | 32 |
| DHW Source Pipe Size | DN | 25 | 25 | 25 | 32 |
| Water Side Pressure Loose | kPa | ≤70 | |||
| Water Pump Head | m | 8 | |||
| Heating Source Pump Flow | m³/h | 2.1 | 3.1 | 4.1 | 5.2 |
| DHW Pump Flow | m³/h | 2.6 | 3.9 | 5.2 | 6.5 |
| Discharge Side Over Pressure | 4.4mPa | ||||
| Sunction Side Lower Pressure | 0.05mPa | ||||
| Compressor / QTY | Scroll | Copeland /1 | Sanyo /1 | ||
| Refrigerant | R407C | 2000g | 3050g | 3500g | 4000g |
| Heat exchanger | Flat plate heat exchanger | ||||
| Noise | dB(A) | ≤52 | ≤56 | ≤60 | ≤62 |
| Unit Dimension | mm | 960*560*680 | |||
| Weight ( NW/GW) | kg | 100/115 | 120/135 | 130/145 | 140/160 |
| Package Size | mm | 1080*660*750 | |||
| Test Condition:Produce side: Input/output water temp.=15ºC/55ºC,Heating Source Water Inlet Temperature:15ºC | |||||
Working principle
Services
1>SUNCHI can supply OEM/ODM service for customers.
2>Produce heat pump according to ISO items , design following customer's special demands,test as Europe EN14511 standard.
3>Supply ours business partner 1%~2% free spare parts according to order quantity.
4>General testing and operational test carried out for every unit before delivery.
5>18 month whole unit warranty period. Using life free technical support.
6>24 hours technical services online
7>Video teach how to install ,how to maintance
Q & A
Q. What are the components need of one geothermal heat pump install system?
A. system install need 3 main parts : heat pump unit, the liquid heat exchange medium (open or closed loop) and the hot water delivery system (ductwork , fan coil , floor heating pipe, radiator ).
Q. If the geothermal heat pump difficult to install?
A. not difficult , it easy install, particularly when they replace another forced air system.
They can be installed in areas unsuitable for fossil fuel furnaces because there is no combustion. (fan coil , floor heating pipe, radiator )must be installed in homes beforehead .
Q. If we choose SUNCHI water source heat pump , we must drig deep well or underground pipe loop ?
A. not need, you can derectly choose energy tower (install outside , on the ground ) connect with my water source heat pump, we specail design and EVI tech,
let the Energy tower closed loop with my water source heat pump by glycol,
this install way will help buyer save much money ,no need open well, also can sure keep heating room at the very cold winter.
Q. If the loop falls below freezing, will it hurt the system?
A. No. The antifreeze in the loop will keep it from freezing. Also we choose using EVI tech , can stand -20C glycol cycle in the loop,so will no ice and freeze.
Q. When install as open loop system, what problems can be caused by poor water quality?
A. Your water should be tested for hardness, acidity and iron content before a heat pump is installed. Mineral deposits can build up inside the heat pump's heat exchanger.
A treatment system may be recommend to improve water quality and extend your equipment's lifetime.
Q. Will the earth loop affect my lawn or landscape.?
A. The actual process of installing the loop will disturb the surface to some degree.
With proper restoration, most loop fields are "invisible" after a couple of months After the initial installation, the loop will have no effect on grass, trees or shrubs.
SUNCHI Business Partner
1> Complying with ISO standard. Quality Ensured.
2> Using world famous Compressor,i.e. COPLAND, PANASONIC, MITSUBISHI,HITACHI, SANYO
3> Complete Inspection covering water system and electricity, ensuring stable hot water production.
4> Equipped with high efficiency tube in shell heat exchanger, finned heat exchanger or plate heat exchanger. All structure pipe and compressor with insulation to prevent heat loss.
5> Evaporator using surface modification of hydrophilic aluminous foil.
6> Electric Expansion valve with accurate flow control and gas distribution.
7> LCD display control panel. Intellectual control over water pump, water supplement, water discharge and defrosting system.
SUNCHI Produce Line
Package and Shipment
1> SUNCHI can sure shipment within 20 working days .
2>All spare parts together loading into package ,one time finished shipment to buyer
3>Take video for buyer before package to 100% sure buyer get product same as order , no any different
Certificate
More information about SUNTCH heat pump, please visit our website: or contact us directly.
We welcome you to come to our factory to visit and know us better.
