SUNCHI Energy Company Brief
Jiangsu sunchi new energy Co.,Ltd., established in 2005, located in changzhou city , jiangsu province, Sunchi is an professional manufacturer focus on researching, production, service of air source heat pump , ground water source heat pump and solar air conditioner.
Sunchi has got the CE,CB,EN14511 certificate from TUV Lab, and also passed the Australia and New Zealand JAS-ANZ certificate, got ISO9001. ISO18001, ISO14001 and CCC certificate. Now applying European ErP Certificate from TUV lab. Currently the products has been exported to Western Europe, North Europe, South Africa, Middle-East, South American and Australia market.
Sunchi builded new 75,000 Watts multi-function Enthalpy Difference Laboratory In 2012 year, this lab using to strictly control qulity.
Sunchi company offer OEM , ODM co-operation for worldwild business partner , welcome join ours team.
SUNCHI Product Introduction

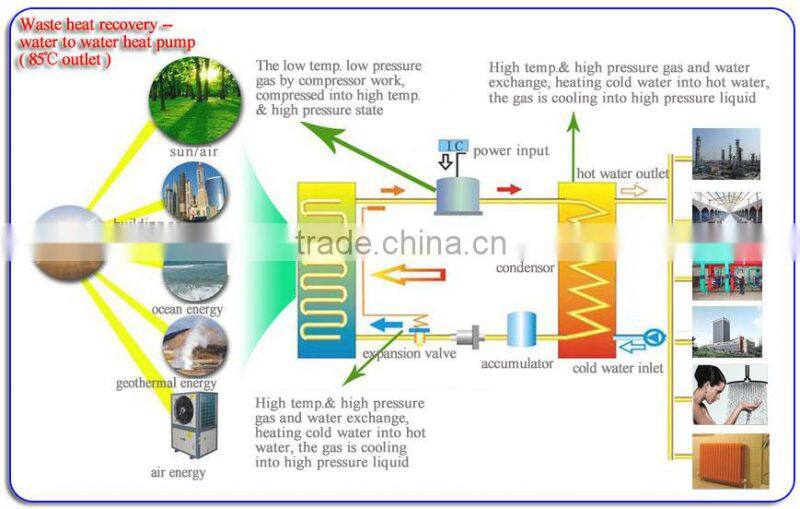

SUNCHI Energy -- 85℃ high temperature heat pump waste heat recovery
1>Flexibility scroll high temperature compressor
2>Intelligent digital throttling technology
3>High temperature super transfer heating system
4>Efficient soldering heat absorber
5>PLC precision connected electronic expension valve
6>Condensing pressure balance valve
7>Environmental protection high temperature heat transfer refregirant
8>Reasonable compact design,complete security protection ,low noise
9>Maximum outlet hot water temperature can reach 85 ℃. It can meet the different demand for residential or commercial using
10>Seven international cutting-edge technology
11> wide margin high-temperature systems
12>ultra-wide adaptive range
13>Blue Shield multistage hub protection
14>nanny no-worry Design
15>Remote monitoring network positioning
16>Safety and environmental protection, clean energy
17>Ultra-reliable, ultra-stable
18>Super energy-saving, environmental protection
SUNCHI ENERGY sure all yours order 100% tested in the test room & online running test, and all products will be double checked by leakage detector before package.
Parameter
| Waste heat recovery -- water to water heat pump ( 85℃ outlet ) | |||||
| Model | SFXRS-16IIG | SFXRS-33IIG | SFXRS-66IIG | ||
| performance | Heating Capacity | kW | 16 | 33 | 66 |
| Rated Input Power | kW | 4.66 | 9.3 | 18.6 | |
| Rated Input Current | A | 9 | 17 | 34 | |
| Max Input Power | kW | 6.4 | 12.8 | 25.6 | |
| Max Input Current | A | 11 | 21 | 42 | |
| COP | 3.43 | 3.54 | 3.54 | ||
| Produce Hot Water | Rated outlet hot waterTemperature | ℃ | 85 | ||
| inlet water temp. | ℃ | 30 | |||
| outlet hot water mode | cycle outlet : 5deg.C temp. difference | ||||
| Power Supply | 380V/3Ph-50Hz | ||||
| Electric Shock Protection Grade | I | ||||
| Waterproof Grade | IPX4 | ||||
| Rated Water Pressure | MPa | 0.6 | |||
| Max Water Pressure | MPa | 1 | |||
| Inlet/Outlet Connect Pipe Size | mm | DN32 | DN40 | DN50 | |
| grounding requirement | Ω | ≤0.1 | |||
| Heat exchanger | Flat plate heat exchanger | ||||
| Compressor | high efficient Scroll INVOTECH | ||||
| Running Ambient temp. | ℃ | -25-45 | |||
| Refrigerant | model | R134A | |||
| Throttling way | Electronic expansion valve | ||||
| Charge | kg | 3.5 | 3.5x2 | 3.5x4 | |
| Unit dimension (L*W*H) | mm | 955*555*640 | 955*800*640 | 1300*1200*840 | |
| Noise | dB(A) | ≤ 54 | ≤ 61 | ≤ 66 | |
| Weight ( NW) | kg | 100 | 180 | 350 | |
| NOTE : | |||||
| 1. The unit design operating conditions : | |||||
| Using side : inlet/outlet water temperature: 80 ℃ / 85 ℃; | |||||
| Heat source: inlet/outlet water temperature 45 ℃ / 40 ℃; | |||||
| 2. The unit operating water temperature range: | |||||
| Using side : outlet hot water range: 70 ℃ ~ 85℃; | |||||
| Heat source : inlet water temperature range: 30 ℃-35 ℃ | |||||

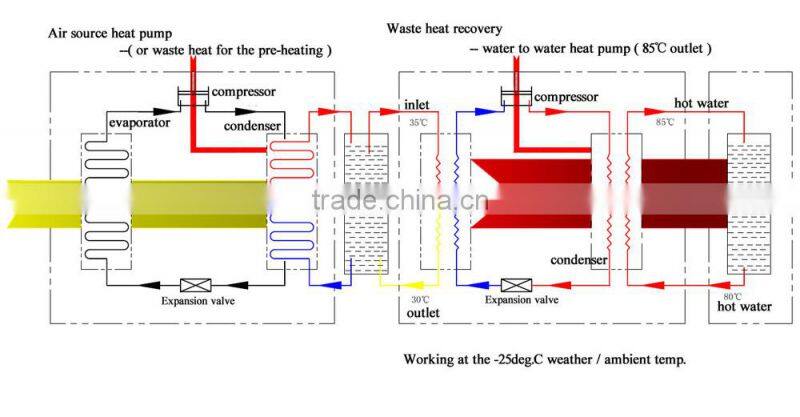

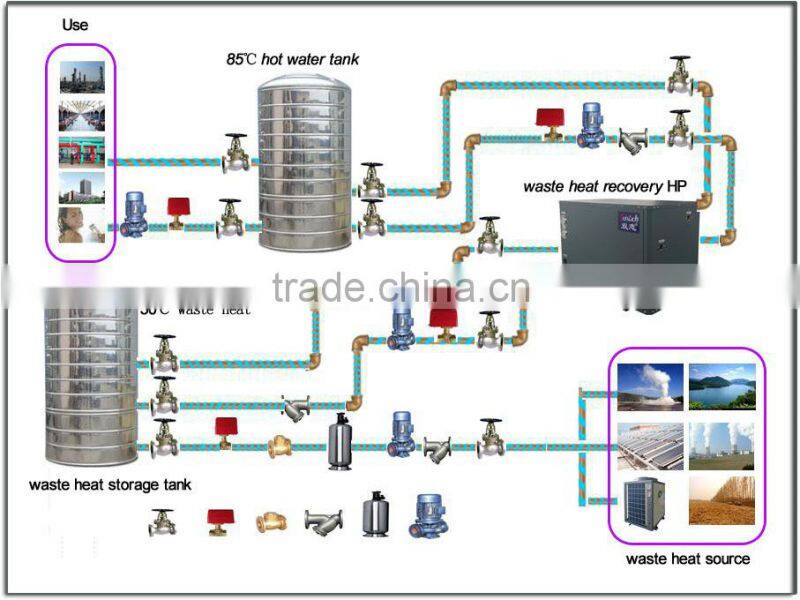

| 3. The unit heat source side : can be connected by solar water heater, air source heat pump, gas heater , oil heater, Waste heat recovery, etc.; | |||||
| 4. If the heat source side using air to water heat pump heater, pls considered choose right Heat pump Capacity as the outdoor ambient temperature | |||||
| 5. The actual use process, should considerate the energy loose (about 5%) after installation system piping, pumps, valves, dirt and others energy loss ; | |||||
| 6. Unit parameters, such as for product improvement and change, without prior notice, please refer to our unit nameplate. | |||||

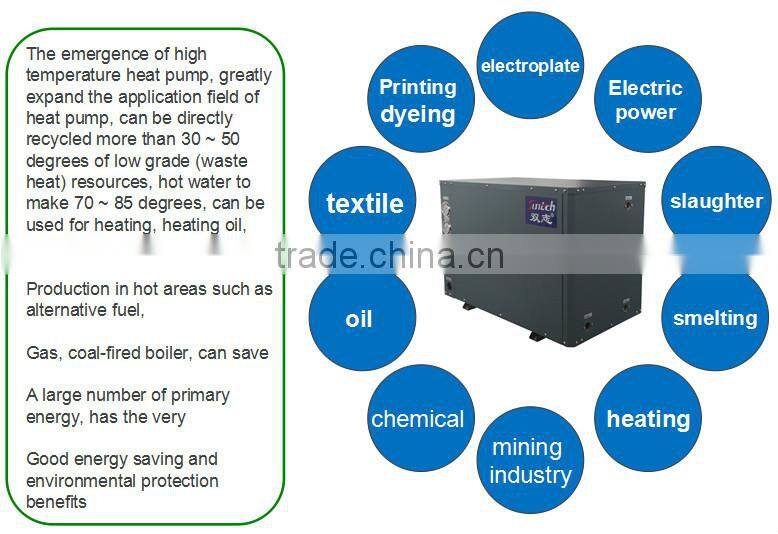

High temperature recovery heat pump unit is applicable to:
Municipal, thermal power, petroleum, electroplating factory, steel, oxidation, surface treatment, metal, chemical industry, electronics, ultrasonic cleaning, auto parts, textile dyeing, slaughterhouses, agricultural and sideline products processing plants, food/beverage preservation , brewery, and end user radiators.
SUNCHI Business Partner
SUNCHI Produce Line
1> Complying with ISO standard. Quality Ensured.
2> Using world famous Compressor,i.e. COPLAND, PANASONIC, MITSUBISHI,HITACHI, SANYO
3> Complete Inspection covering water system and electricity, ensuring stable hot water production.
4> Equipped with high efficiency tube in shell heat exchanger, finned heat exchanger or plate heat exchanger. All structure pipe and compressor with insulation to prevent heat loss.
5> Evaporator using surface modification of hydrophilic aluminous foil.
6> Electric Expansion valve with accurate flow control and gas distribution.
7> LCD display control panel. Intellectual control over water pump, water supplement, water discharge and defrosting system.
Package and Shipment
1> SUNCHI can sure shipment within 20 working days .
2>All spare parts together loading into package ,one time finished shipment to buyer
3>Take video for buyer before package to 100% sure buyer get product same as order , no any different
Services
1>SUNCHI can supply OEM/ODM service for customers.
2>Produce heat pump according to ISO items , design following customer's special demands,test as Europe EN14511 standard.
3>Supply ours business partner 1%~2% free spare parts according to order quantity.
4>General testing and operational test carried out for every unit before delivery.
5>18 month whole unit warranty period. Using life free technical support.
6>24 hours technical services online
7>Video teach how to install ,how to maintance
More information about SUNCHI heat pump, please visit our website: or contact us directly.
Wechat ID: sunchienergy , Skype ID: sales02sc
We welcome you visit our factory to know us better.
