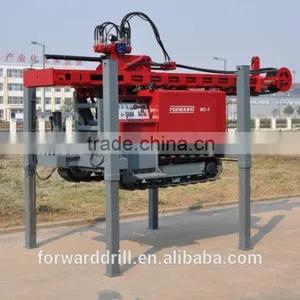

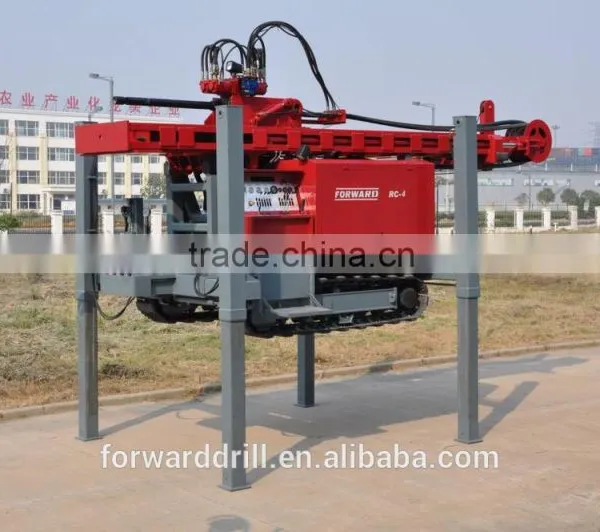

RC4 Water Well Rig

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Water well rig
Power Type	Diesel	Place of Origin	Jiangsu, China
Brand Name	FORWARD	Model Number	RC4
Power(W)	97 000	Weight	13500 Kgs
Certification	CE, ISO9001	Warranty	1 years
After-sales Service Provided	Engineers available to service machinery overseas

Germany diesel, produced in China, all important parts from EUROPE or USA. high quality and efficiency.

Direct/Reverse Circulation Mud Drilling

Direct/Reverse Circulation Air Drilling

DTH Drilling

The maximum diameter of drilling hole -420mm

The maximum hole depth – 400 m

3 types of drilling: mud drilling, air drilling, DTH drilling

Maximum hoist capacity 20t

Maximum spindle torque11 000Nm

Applicable drill rod range 2—5 in

Full hydraulic drive, smooth and reliable operation for each drilling

American hydraulic system

Equipped with reliable clamping system, which can easily be adjusted for height

Fast feed and lifting function reduce the time of drilling

The telescopic mast ensures the reliability of drilling

Crawler chassis guarantees high operation quality

Track
Moving Speed	Low speed		3 km/h
	High speed		4.5 km/h
Diesel engine
Model		CUMMINS 4BT turbocharged
Power		97kW
Type of cooling		Water cooling
Rotation speed		2500rpm
Cylinders quantity/capacity		4 / 3,9 L
Fuel tank capacity		220 L
Drilling capability
2-7/8 in drill rod		500m
3- 1/2 in drill rod		400m
4-1/2 in drill rod		300m
Mast

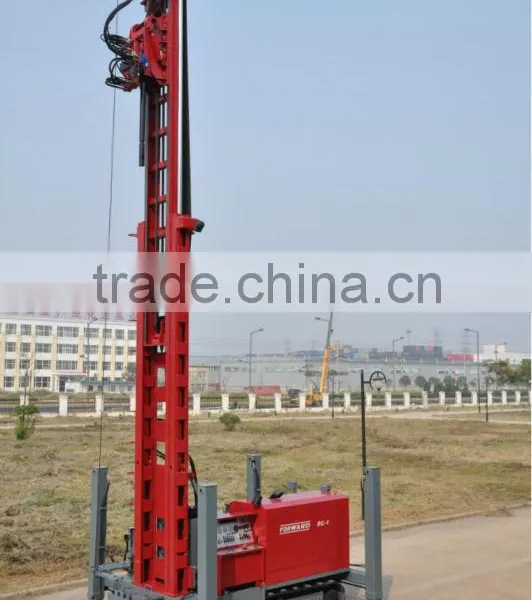

Mast Height (fully extended)		10.9m
Mast height (fully retracted)		6.6 m

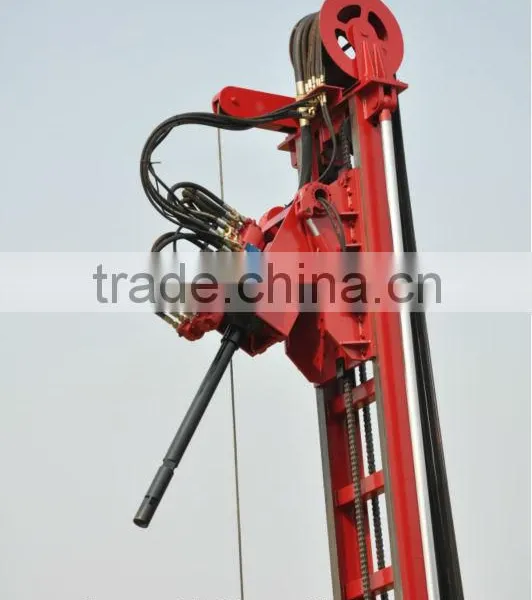

Power head distance (stroke)		7100 mm
Applicable drill rod		Diameter 50-127mm, Length 6.1m
Push and pull ability of power head
Maximum hoist capacity (up)		20 kN
Maximum hoist capacity (down)		10 kN
Maximum hoisting speed		30 m/min
Hoisting speed		Full load 15m/min
Rotation
Gears		2
Low speed	0~60rpm		11 000Nm
High speed	0~120rpm		5 500Nm
Adjusting angle of mast		0-90º
Hoist crane at the top
Maximum hoist capacity		20 kN
Diameter of steel wire rope		8 mm
Length of steel wire rope		45 m

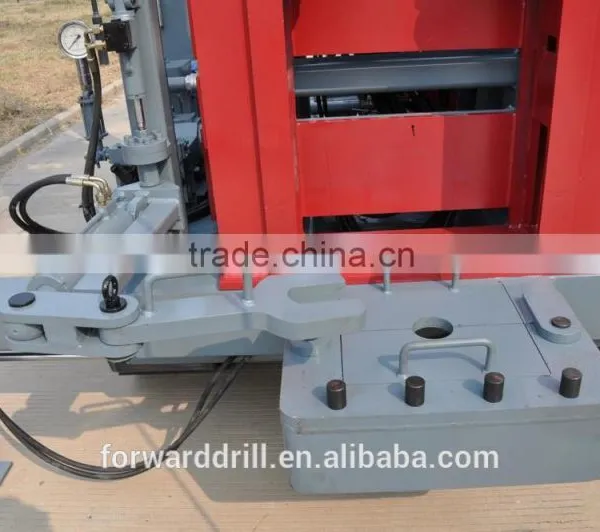

Untwisting system
Applicable drill rod		50-127mm
Maximum torque		40 000 Nm
Dimensions and weight
Dimensions in operation		4.32.810.9 m
Dimension in transportation		6.62.22.9 m
Weight		13 500 kg
