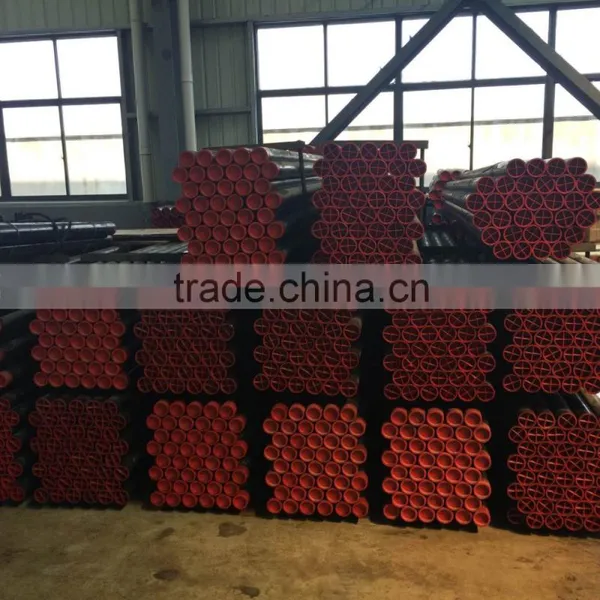

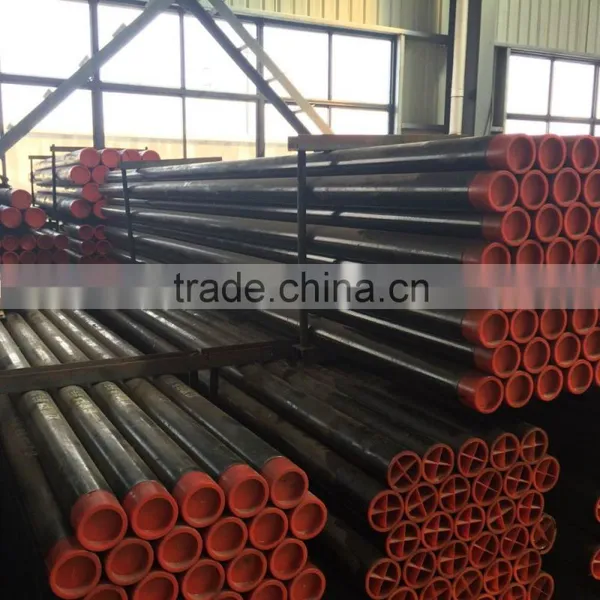

Help CenterCore Drill Rod BW , NW , HW , PW Casing Tube Casing Pipe Core Tubes
Related Products
-
Core Drill Rod Split Tube Aluminium Alloy For Core BarrelNegotiableMOQ: 1 -
BWL NWL HWL PWL Wireline Drill Rod Core Barrel Inner Tube and Outer Tube Drill RodNegotiableMOQ: 1
-
PWL Drill Rod 114.3mm X103.2mm X5.5mm Wireline Drill Rod for Drilling RigNegotiableMOQ: 1
-
HWL Series Drill Rod 88.9mm X77mm .8X5.5mm Wireline Drill Rod for Drilling RigNegotiableMOQ: 1
-
NWL Core Drill Rod 69.9mm X60.3mm X5mm Wireline Drill Rod for Drilling RigNegotiableMOQ: 1
Wireline Drill Rod Tube Casing Tubes Core Tubes (BW,NW,HW)
Our drill rods are all manufactured by CNC machines. They're made of high quality alloy steel.All our drill rods are heat-treated. Our rods will be also suited to drill deep holes. From drillers' feedback, our rods have drilled up to 2000 meters depth.
Specifications:
1. Increased penetration rate
2. Longer service life
3. Lower cost
4. Excellent cemented carbide
5. AW,BW, NW, PW, HW
Size Available:
Wireline Series: B, N, H, P
"WJ" Design: AWJ, BWJ, NWJ, KWJ, HWJ
"W" Design: RW, EW, AW, BW, NW, HW
Metric Series: 33, 42, 50
We also can produce various sizes of casing tubes.
Size Available:
"W" Design: BW, NW, HW, PW, SW, UW, ZW/HWT, PWT
Metric Series: 46, 56, 66, 76, 86, 101, 116, 131, 146
All Chinese Sizes.
No |
ITEM |
OD |
ID |
Thread type |
weight (kg/m) |
1 |
Φ73 |
73.5 |
65.5 |
|
7 |
2 |
Φ89 |
89 |
81 |
|
9.4 |
3 |
Φ108 |
108.5 |
99.5 |
|
12 |
4 5 |
Φ127 Φ146 |
127.5 146.5 |
118 137 |
China-standarded strip connectors |
14 18 |
6 |
Φ168 |
168 |
154 |
|
28 |
|
Φ178 |
178 |
164 |
|
30 |
7 |
Φ194 |
194 |
181 |
|
33 |
Technical parameters:
Description |
OD |
OD |
Weight |
AW 3.0m(10') CASING |
57.10(mm) |
48.40(mm) |
17 (kg/3m) |
AW 1.5m(5') CASING |
2.25(in) |
1.91(in) |
38(Ib/10ft |
BW 3.0m(10') CASING |
73.00(mm) |
60.30(mm) |
31.30(kg/3m) |
BW 1.5m(5') CASING |
2.88 (in) |
2.38(in) |
70 ( Ib/10ft) |
NW 3.0m(10') CASING |
|
|
|
NW 1.5m(5') CASING |
88.90(mm) 3.5(in) |
76.20(mm) 3.00 (in) |
38.4(kg/3m) 86(lb/10ft) |
NW 1.0m(2') CASING |
|
|
|
HW 3.0m(10') CASING |
|
|
|
HW 1.5m(5') CASING |
114.30(mm) 4.50(in) |
101.60(mm) 4.00 (in) |
52.20(kg/3m) 117.00(lb/10ft) |
HW 1.0m(2') CASING |
|
|
|
HWT 3.0m(10') CASING |
|
|
|
HWT 1.5m(5') CASING |
114.30(mm) 4.50(in) |
101.60(mm) 4.00 (in) |
52.20(kg/3m) 117.00(lb/10ft) |
HWT 1.0m(2') CASING |
|
|
|
PW 3.0m(10') CASING |
|
|
|
PW 1.5m(5') CASING |
139.70(mm) 5.50(in) |
127.00(mm) 5.00 (in) |
64.30 (kg/3m) 144.00(lb/10ft) |
PW 1.0m (2') CASING |
|
|
|
