High Penetration Core Drill Bit BW Diamond Casing Shoe Bit Impregnated Rod Shoe Bit
- T/T Money Gram
You May Like
-
High Performance 14MM Core Drill Bits Turbo / BWL NWL HWL PWL Impregnated Diamond Core Drilling Bit
-
Impregnated Diamond Core Drill Bits BWL NWL HWL PWL Longlife for Mining
-
Casing Concrete Core Drill Bits , BW NW HW Diamond Casing Shoes Bits
-
Impregnated Core Drill Bits T2 Series Double Tube For Geological Exploration
-
High Speed Concrete Core Drill Bits , BWL NWL HWL PWL Diamond Core Hole Drill Bits
-
Diamond BWL NWL HWL PWL Rod Shoe Bit Core Drill Bits For Geological Prospecting
Product Details
| Place of Origin | China | Brand Name | SINOCOREDRILL | |
| Model Number | BW NW HW PW | Type | Drill Bit | |
| Machine Type | Drilling Tool | Processing Type | Forging | |
| Use | Ore Mining |
Product Description

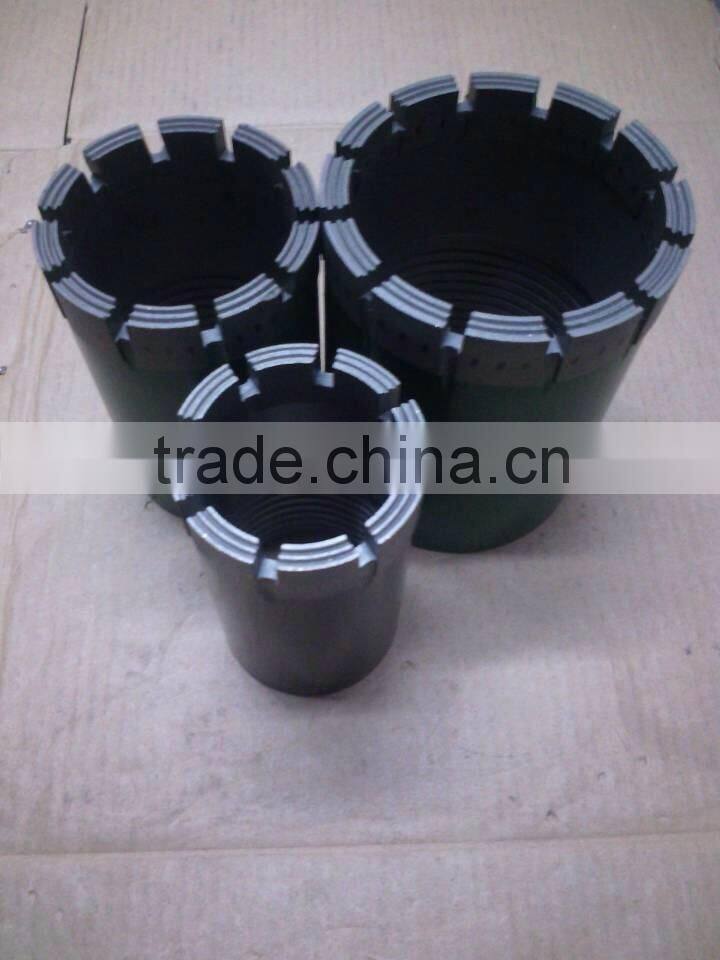

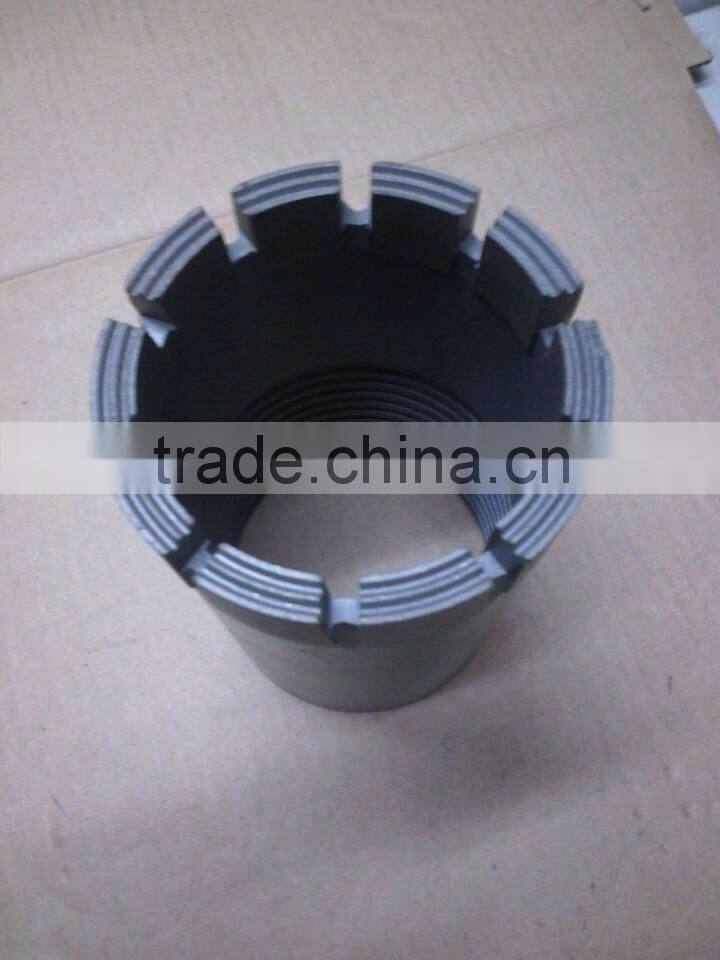

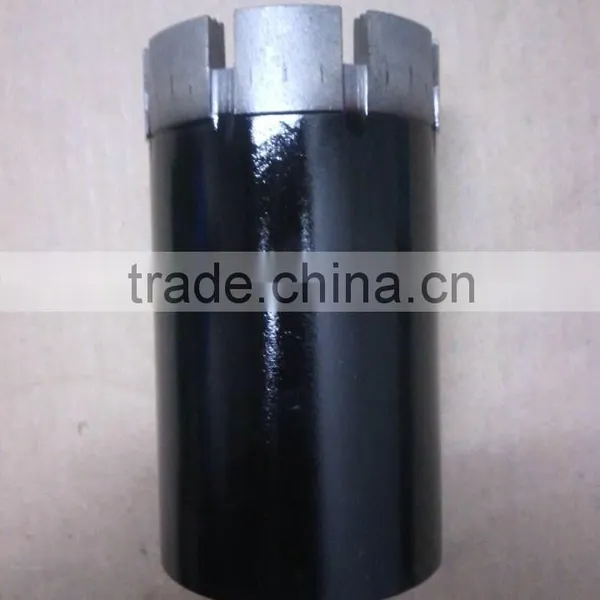

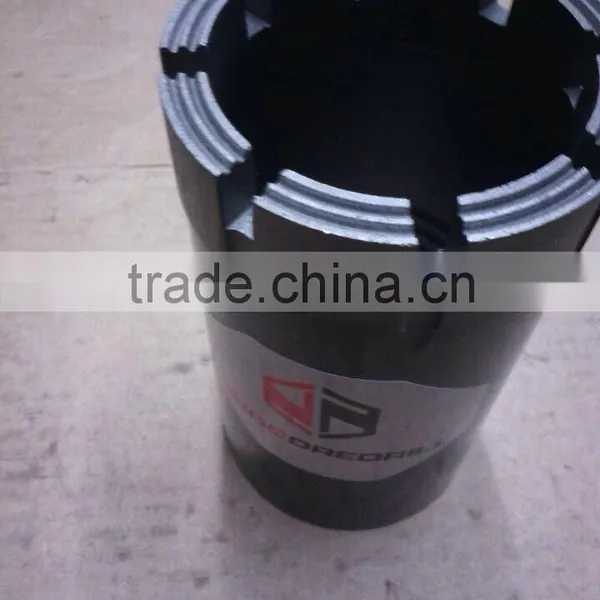

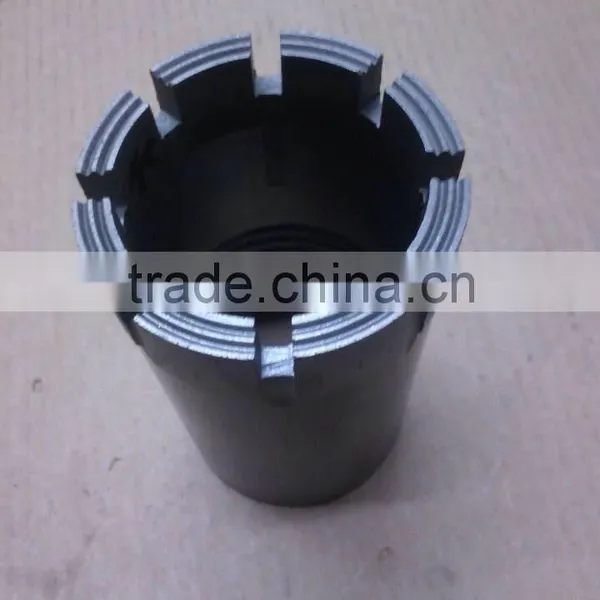

High Penetration Rate Core Drill Bit BW Diamond Casing Shoe Bit Impregnated Rod Shoe Bit
BW Casing Shoe
The casing shoe bits (rod shoes bits) are designed to drill in casings or rods in difficult over burden material to position the rods or casing in the drilling hole. The interior is smooth and sufficiently large enough to allow free passage of coring equipment such as bits, reaming shells core barrels and drill rods. They are manufactured to withstand difficult drilling conditions: for example, unconsolidated overburdened or broken abrasive materials.
Impregnated Casing Shoes Bits
Impregnated casing shoe bits are recommended for very hard and fractured formations. They can be manufactured in all series and varying impregnation heights to suit your individual requirements.
Notice :
To select the right bit for the job, assess the speed and power of your drill for the size and depths of the holes to be drilled and assess ground conditions such as rock type/formation and down-hole conditions.
Size:
SINOCOREDRILL bits are available in all standard drilling sizes . Also, non-standard sized bits can be produced according to requirements from clients.
Crown Height:
SINOCOREDRILL offers crown impreg depths of 9mm, 12mm, and 16mm .The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.
Waterways:
Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.
Matrix:
SINOCOREDRILL impregnated bits matrices can be selected by our engineer according to ground conditions at client's work site.
Threads:
standard WL threads as well as thread types required by clients are available.
Size Available:
WL Series: B, N, H, P
W Series: RW, EW, AW, BW, NW, HW, PW, SW, UW, ZW, HWT, PWT, BWS, NWS, HT, PT, SZ
Metric Series: 46, 56, 66, 76, 86, 101, 116, 131, 146
X Series: RX, EX, AX, BX, NX, HX, PX, SX, UX, ZX
All Chinese Sizes
