hydraulic shearing machine, guillotine cutting machine QC11Y-30X2500

Specifications

HYDRAULIC GUILLOTINE SHEAR QC11Y-30X2500

Features

Hydraulic individual sheet material clamping system with nylon inserts to protect material from indentation from the clamping cylinders along full length of machine.

Adjustable hydraulic variable blade rake system via control panel 0° - 2°

Control box mounted higher than standard on side of machine to protect it from material damaging the control unit due to heavy material loading on sheet supports prior shearing.

Simplified blade gap adjustments to allow for a wide range of material types and thicknesses of 0.7 - 6mm enabling minimised distortion of the cut length.

Transfer balls inserted into work table allowing material to be easily moved to the cut position and squaring arm.

Top shearing blade made from 6CrW2Si quality composite and has two (2) cutting edges allowing minimised down time in blade rotation.

Bottom shearing blade made from 6CrW2Si quality composite and has four (4) cutting edges allowing minimised down time in blade rotation.

The core structure of the steel main frame has been electronically welded ensuring maximum penetration during the manufacturing process. In addition to this feature the cutting beam has been stress relieved eliminating any distortion after manufacturing.

Shadow line lighting has been incorporated into the machine frame providing a clear cutting line on the work piece and enabling scribed or marked material to be cut with simplicity as required.

Heavy duty squaring arm is fitted with a graduated rule and adjustable flip up front stops allowing operator to cut to measure from the front of machine. Flip over stops can be set to repeat cutting length required with accuracy. The arm also aligns the material to be located square to the cutting edge.

Parameter

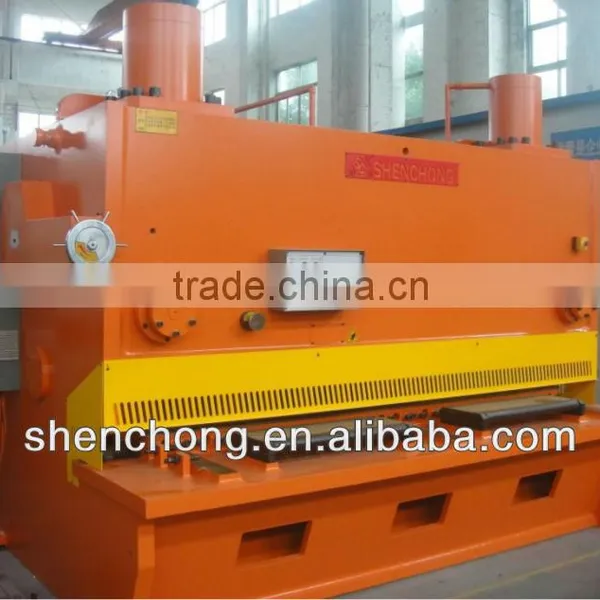

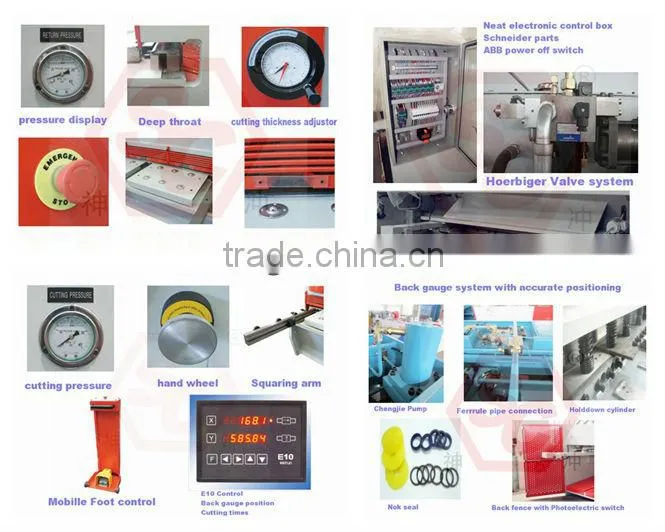

Machine photos

Shenchong profile

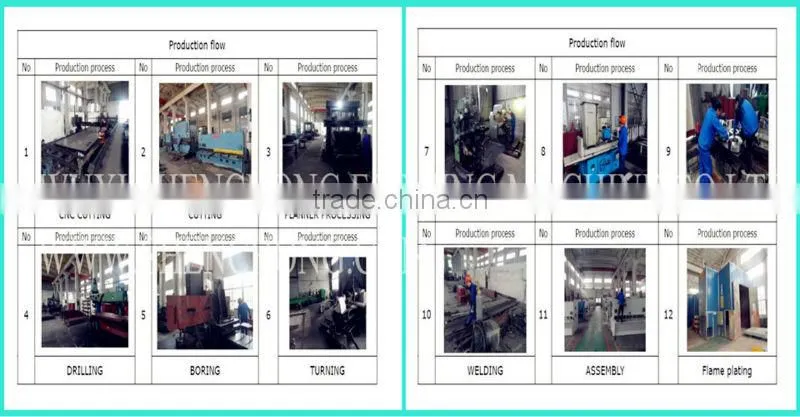

Our workshop

Our certificate

 Our exhibition
