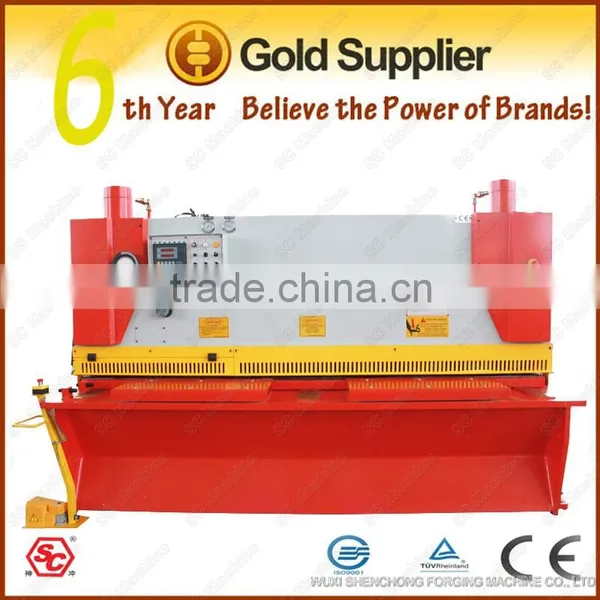

QC11K-6X2500 Wuxi CNC Hot Sale Hydraulic Plate Shearing Machine Factory

US$ 2,000 - 20,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Contact Supplier Request Quote Chat Now

Wuxi Shenchong Forging Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name SC

Model Number QC11K-6x2500

Voltage customize

Rated Power customize

Certification ISO, CE, SGS

Warranty 13 Months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Wuxi plate shearing machine factory
2.ISO,SGS,CE certification
3.Professional factory
4.High precision
5.Easy operation

Details of QC11K-4x3200 Wuxi CNC hydraulic plate shearing machine

(1)this machine belongs to second generation of hydraulic shear, with advanced integrated hydraulic system with an excellent reliability and easy for maintenance.
(2)the shearing angle can not be changed due to the series cylinder.
(3)the rolling guide with 3-point support and improves the shearing quality.
(4)the power storage device returns steadily and quickly.
(5)the rectangular monoblock blades featuring long life with 4 cutting edges.
(6)rapidly, accurately and conveniently adjusting the blade clearance with the handwheel.
(7)the adjustable rake angle can minimize plate deformation.
(8)as the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed. Shearing in sections (adjust the time displayed on liquid crystal), shadow-line cutting.
(9)counter for the motorized back gauge, very accurate and convenient.
(10)rolling plate-support of the machine, this can reduce the hurt of the plates and reduce the conflict force.

Technical parameters of hydraulic plate shearing machine

Model	Mild Steel (450MPA)	Cutting Length (mm)	Depth Of Throat (mm)	Back Gauge Range(mm)	Rake Angle Adjustment	Strokes Per Minute	Main Motor (kw)
4×2000	4	2000	80	750	0.5°~2°	14	5.5
4×2500	4	2000	80	750	0.5°~2°	14	5.5
6×2500	6	2500	80	750	0.5°~1°30′	14	7.5
6×3200	6	3200	80	750	0.5°~1°30′	12	7.5
6×4000	6	4000	80	750	0.5°~1°30′	10	7.5
6×5000	6	5000	80	750	0.5°~1°30′	8	7.5
6×6000	6	6000	80	750	0.5°~1°30′	8	7.5
8×2500	8	6000	80	750	0.5°~2°	14	7.5
8×3200	8	3200	80	750	0.5°~2°	12	7.5
8×4000	8	4000	80	750	0.5°~2°	10	7.5
8×5000	8	5000	80	750	0.5°~2°	7	15
8×6000	8	6000	100	750	0.5°~2°	7	15
10×2500	10	2500	100	750	0.5°~2°30′	10	15
10×3200	10	3200	100	750	0.5°~2°30′	8	15
10×4000	10	4000	100	750	0.5°~2°30′	6	15
10×5000	10	5000	100	750	0.5°~2°30′	5	15
10×6000	10	6000	100	750	0.5°~2°30′	5	15
12×2500	12	2500	100	750	0.5°~2°30′	10	15
12×3200	12	3200	100	750	0.5°~2°30′	8	15
12×4000	12	4000	100	750	0.5°~2°30′	5	15
12×5000	12	5000	100	750	0.5°~2°30′	5	30
12×6000	12	6000	100	750	0.5°~2°30′	5	30
16×2500	16	2500	100	750	0.5°~2°30′	8	15
16×3200	16	3200	100	750	0.5°~2°30′	7	15
16×4000	16	4000	100	750	0.5°~2°30′	6	15
16×5000	16	5000	100	750	0.5°~3°	5	22
16×6000	16	6000	100	750	0.5°~3°	5	37
20×2500	20	2500	100	750	0.5°~3°	6	22
20×3200	20	3200	120	750	0.5°~3°	5	30
20×4000	20	4000	120	750	0.5°~3°	4	30
20×5000	20	5000	120	750	0.5°~3°	4	37
20×6000	20	6000	120	750	0.5°~3°	5	37
25×2500	25	2500	120	750	0.5°~3.5°	5	37
25×3200	25	3200	120	750	0.5°~3.5°	5	37
25×4000	25	4000	120	750	0.5°~3.5°	4	37
30×2500	30	2500	120	750	0.5°~3.5°	4	37
30×3200	30	3200	120	750	1°~3.5°	3	37
40×2500	40	2500	80	750	1°~4°	4	37×2
