SHENCHONG HYDRAULIC VARIABLE RAKE CNC GUILLOTINE for 16mm~40mm Thick Metal Plate
US$ 10,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Shenchong
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Nanjing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Shenchong Brand Sheet Metal Guillotine Shear Manufacture in China, Industry Machinery for Metal Fabrication QC11YUS$ 10,000 - 100,000MOQ: 1 Set -
QC11Y-6X6000 Sheet Metal Guillotine Shear New Condition and Overseas Third-party Support Available After-sales Service ProvidedUS$ 5,000 - 1,000,000MOQ: 1 Set
-
QC11K-8X3200 DAC360 Hot Sale Fully Programmable Shearing Machine, Guillotine Shearing MachineUS$ 10,000 - 40,000MOQ: 1 Set
-
QC11K-8X6200 Hot Sale Fully Programmable Shearing Machine, Guillotine Shearing MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
QC12Y-6x2500 Hot Sale Hydraulic Steel Swing Beam Shearing Machine, Cutting Machine, Guillotine MachineUS$ 10,000 - 80,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
Shenchong
Model Number
WC67Y
Voltage
CUSTOMIZED
Certification
CE,SGS,ISO
Warranty
14 months after delivery
After-sales Service Provided
Engineers available to service machinery overseas
variable rake CNC guillotines are heavy duty, strong machines designed for a long working life. The CNC controller automatically calculates and adjusts the blade gap, the back gauge position, cutting angle and stroke length simultaneously once the data is entered. Therefore the strokes per minute cutting cycle is significantly increased. The cutting angle automatically adjusts according to material thickness minimising the twisting of sheet during the cutting cycle.
Features:
- Variable rake design
- Cybelec DNC60 CNC controlling blade gap, back gauge, stroke and cutting angle
- Adjustable stroke length to reduce stroke time when cutting narrower widths
- Digital stroke counter
- 1000mm powered ball screw backgauge with swing away feature for longer cutting lengths
- Back gauge retract feature
- High quality stainless grade top and bottom blades
- Top blade with 2 cutting edges and bottom blade with 4 cutting edges
- Cutting line illumination
- Front finger guards with windows
- Side throat guards
- Compact low-maintenance hydraulic system
- Hydraulic overload protection
- Powerful material hold downs to prevent sheet sliding during cutting action
- Support table with roller bearings
- 1000mm Front squaring arm with measuring scale, tee slot and flip stop
- 1000mm Front support arms
- Foot pedal for single or continuous cutting cycles
- Photo cell rear guards
- Centralised lubrication system
Options:
- Pneumatic rear sheet support system
- Anti twist device
- Hydraulic automatic swing away back gauge in lieu of standard powered
- Angle gauge
- Tee slots and flip stops on front support arms
- 1 metre lift up finger guard with interlock switch
- Front CE light guards in lieu of standard fixed front guards

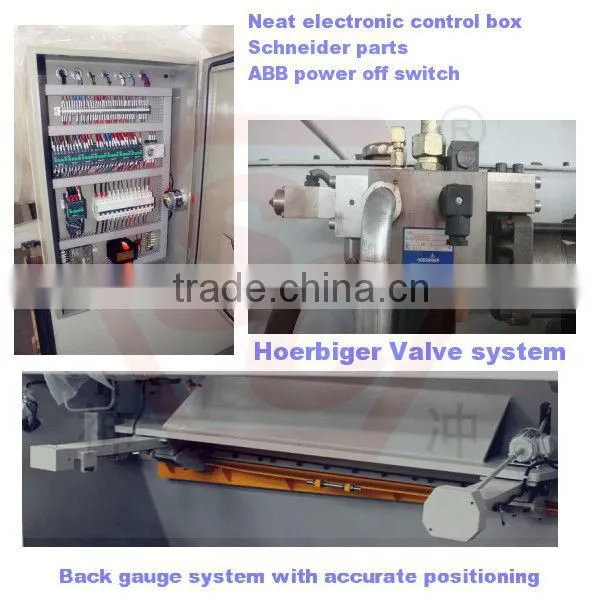

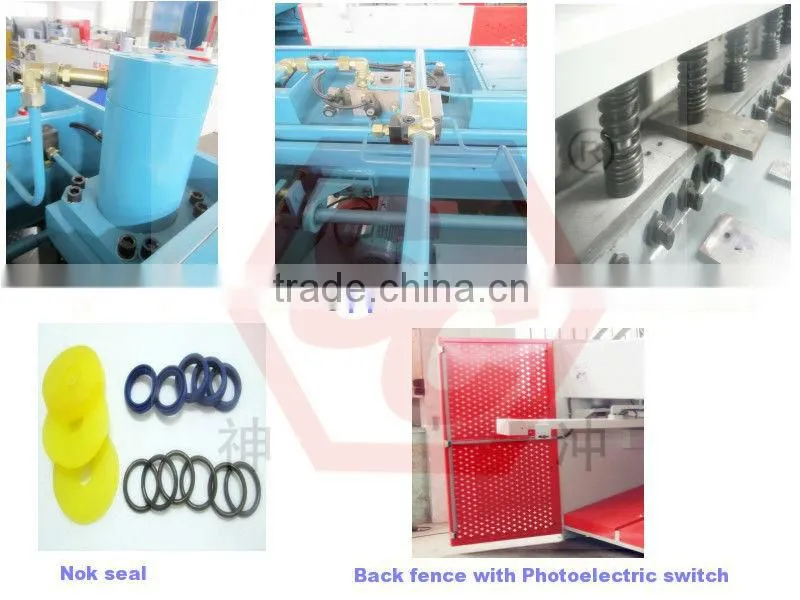

Product details:
Guillotine shear machine certificates:
Production procedures:
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2002
Factory Size
10,000-30,000 square meters
Total Employees
201 - 300 People
