Help CenterSW11-25x1500 Hydraulic Iron Palte Rolling Machine
Related Products
-
SW11-20x3200 Mechanical Symmetry Three-roller Rolling MachineUS$ 20,000 - 52,550MOQ: 1 Set -
SW11-20x2000 Wuxi Mechanical Hydraulic Round Tube Rolling MachineUS$ 3,870 - 31,850MOQ: 1 Set
-
SW11-20x2000 Wuxi Mechanical Hydraulic Plate Rolling MachineUS$ 3,880 - 30,800MOQ: 1 Set
-
SW11-20x1500 Hydraulic Iron Palte Rolling MachineUS$ 4,250 - 26,550MOQ: 1 Set
-
SW11-20x1500 Hydraulic 3 Rollers Sheet Metal Rolling MachineUS$ 3,250 - 25,550MOQ: 1 Set
Specifications
1.Hydraulic iron palte rolling machine2.Professional manufacturer
3.ISO, SGS & CE certification
4.PLC control system

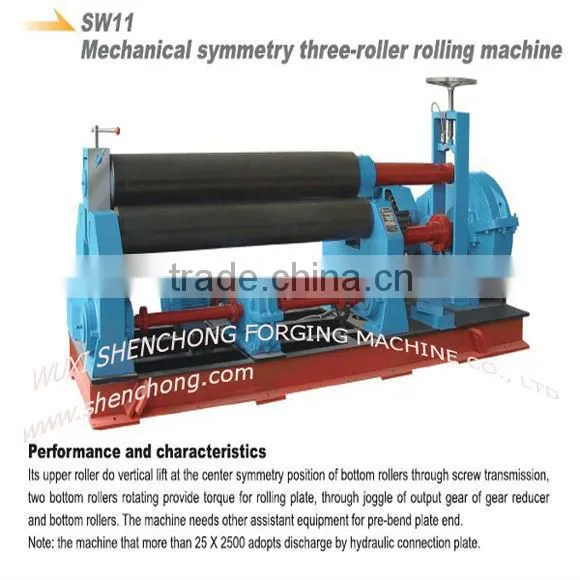

Performance and characteristics of SW11-25x1500 hydraulic iron palte rolling machine
1. The upper roller of the machine make vertical lifting movement at symmetry place of two bottom rollers center, through hydraulic oil in the hydraulic cylinder acting on piston pole, it is hydraulic transmission.
2. Two bottom rollers make rotation movement, motor join bottom roller through gear reducer and universal chain coupler, provide torque for rolling plate machine plate.
3. There are many sets of support rollers in the space from upper roller to two bottom rollers, which can improve rigidity of bottom roller, enables vertical adjustment.
4. On the top of the upper roller, there is a rigid beam.
5. There are many sets of support rollers in the space from beam to the upper roller, which can improve rigidity of upper roller.
6. The rolling plate machine suit for making wide arc type work piece.
Note: NC control or CNC control optional
Technical data of hydraulic iron palte rolling machine
Shenchong Certifications:
Shenchong Workshops:
Working Procedures:
Loading Photos:
Customers in Shenchong:
Our Exhibitions:
