SW11-12X2500 Roll Forming Machine,mechanical Symmetry Rolling Machine

FOB Price

US$ 5,000 - 100,000 / Set

1 Set(Min. Order)

Port Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	shenchong	Model Number	SW11-12X2500
Machine Type	Roller-Bending Machine	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Carbon Steel	Power	Hydraulic
Automation	Automatic	Extra Services	End Forming
Certification	ISO 9001:2000	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Feature of plate rolling machine

1. The machine consist of bottom base, up and bottom roller stand, main drive system, electrical system and so on. Bottom base and machine stand is welding structure, strictly control the welding quality and has steps of eliminating the inner force, to promise the machine have enough strength and rigidity under working condition, eventually guarantee the accuracy of the work piece.
Movement of bottom roller driven and upper roller vertical moving are controlled by electric. All operation adopts centralize electric control, easy for operation.

2. Working components
Upper roller sits in two oilless self-lubricating bearings, locate at inside of the stand, make vertical movement driven by worm wheel on both sides.
a. High accuracy pre-bending function
On certain extence, upper roller can pre-bending the job directly with high accuracy.
b. Excellent rolling work piece
Vertical movement of upper roller and horizental movement of bottom roller work together to make continuous bending, make ideal job, either thin or thick plate. :

Technical parameter:

Modal	Max. plate Thickness (mm)	Max. Pre- Bending thickness (mm)	Max. plate Width (mm)	Roll speed (m/min)	Min. diameter of Max. plate Thickness (mm)	Upper Roller Diamete (mm)	Bottom roller diameter (mm)	Main Motor power (KW)	Weight (ton)	Dimension L×W×H
SW11X-B-6×2000	6	4	2000	5.6	380	180	170	5.5	4.6	3600×980 ×1300
SW11X-B-6×2500	6	4	2500	5.6	450	230	200	7.5	5.3	5600×1380 ×1450
SW11X-B-8×2000	8	6	2000	5.6	450	230	200	7.5	5.7	5100×1380 ×1450
SW11X-B-8×2500	8	6	2500	5.5	500	240	220	11	7	5780×1490 ×1540
SW11X-B-8×3200	8	6	3200	5.8	650	260	230	15	8.6	6400×1490 ×1540
SW11X-B-12×2000	12	8	2000	5.5	500	240	220	11	6.7	5240×1490 ×1540
SW11X-B-12×2500	12	8	2500	5.8	650	260	230	15	7.7	5740×1485 ×1600
SW11X-B-12×3000	12	8	3000	5.8	750	300	260	22	12.1	6400×1770 ×1700
SW11X-B-16×2000	16	12	2000	5.8	650	260	230	15	7.6	5240×1485 ×1600
SW11X-B-16×2500	16	12	2500	5.8	750	300	260	22	9.4	5800×1770 ×1700
SW11X-B-16×3200	16	12	3200	5.6	900	340	300	22	16.8	6900×1900 ×1750

Certificate:

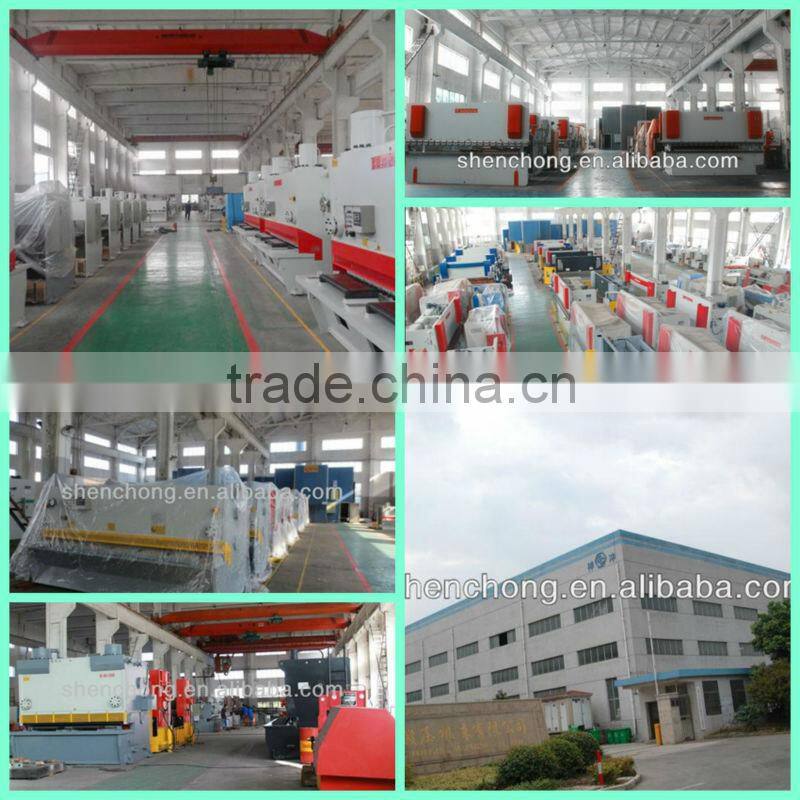

Factory:
