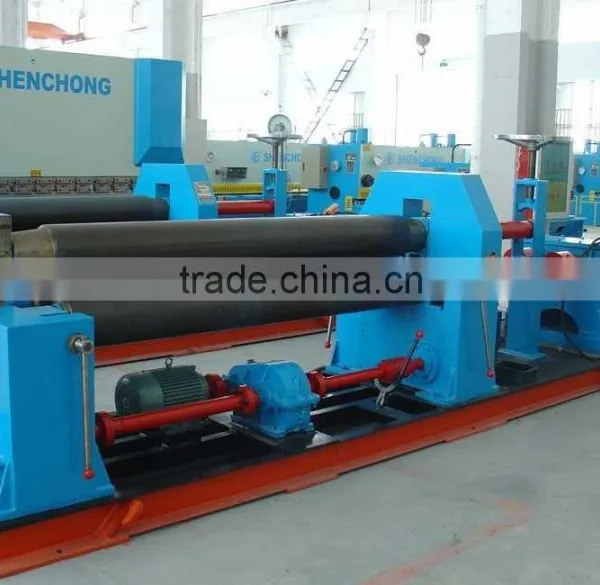

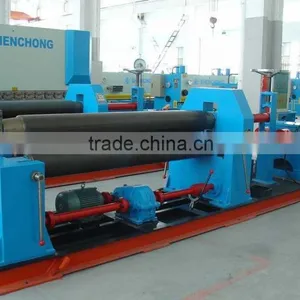

Help CenterSW11X-B-12X3000 Mechanical Level Down Three-Roller Roller Machine
Related Products
-
SW11X-B-6X2000 Plate Metal Coiling Machine 3 Rollers CE ApprovedUS$ 5,000 - 32,000MOQ: 1 Set -
Automatic High Speed Rolling Machine (SW11X-B-12X2500)mechanical Level Down Three Roller Rolling Machine Made in ChinaUS$ 15,000 - 75,000MOQ: 1 Set
-
SW11X-B-20x2500 High Quality Mechanical 3-roller Sheet Metal Bending MachineUS$ 2,000 - 30,000MOQ: 1 Set
-
SW11SNC-65X2500 Top Roller Universal Hydraulic Rolling Plate MachineUS$ 100,000 - 250,000MOQ: 1 Set
-
SW11-12X2500 Roll Forming Machine,mechanical Symmetry Rolling MachineUS$ 5,000 - 100,000MOQ: 1 Set
Feature
1. The machine consist of bottom base, up and bottom roller stand, main drive system, electrical system and so on. Bottom base and machine stand is welding structure, strictly control the welding quality and has steps of eliminating the inner force, to promise the machine have enough strength and rigidity under working condition, eventually guarantee the accuracy of the work piece.
Movement of bottom roller driven and upper roller vertical moving are controlled by electric. All operation adopts centralize electric control, easy for operation.
2. Working components
Upper roller sits in two oilless self-lubricating bearings, locate at inside of the stand, make vertical movement driven by worm wheel on both sides.
a. High accuracy pre-bending function
On certain extence, upper roller can pre-bending the job directly with high accuracy.
b. Excellent rolling work piece
Vertical movement of upper roller and horizental movement of bottom roller work together to make continuous bending, make ideal job, either thin or thick plate. :
Technical parameter:
Modal |
Max. plate Thickness (mm) |
Max. Pre- Bending thickness (mm) |
Max. plate Width (mm) |
Roll speed (m/min) |
Min. diameter of Max. plate Thickness (mm) |
Upper Roller Diamete (mm) |
Bottom roller diameter (mm) |
Main Motor power (KW) |
Weight (ton) |
Dimension L×W×H |
SW11X-B-6×2000 |
6 |
4 |
2000 |
5.6 |
380 |
180 |
170 |
5.5 |
4.6 |
3600×980 ×1300 |
SW11X-B-6×2500 |
6 |
4 |
2500 |
5.6 |
450 |
230 |
200 |
7.5 |
5.3 |
5600×1380 ×1450 |
SW11X-B-8×2000 |
8 |
6 |
2000 |
5.6 |
450 |
230 |
200 |
7.5 |
5.7 |
5100×1380 ×1450 |
SW11X-B-8×2500 |
8 |
6 |
2500 |
5.5 |
500 |
240 |
220 |
11 |
7 |
5780×1490 ×1540 |
SW11X-B-8×3200 |
8 |
6 |
3200 |
5.8 |
650 |
260 |
230 |
15 |
8.6 |
6400×1490 ×1540 |
SW11X-B-12×2000 |
12 |
8 |
2000 |
5.5 |
500 |
240 |
220 |
11 |
6.7 |
5240×1490 ×1540 |
SW11X-B-12×2500 |
12 |
8 |
2500 |
5.8 |
650 |
260 |
230 |
15 |
7.7 |
5740×1485 ×1600 |
SW11X-B-12×3000 |
12 |
8 |
3000 |
5.8 |
750 |
300 |
260 |
22 |
12.1 |
6400×1770 ×1700 |
SW11X-B-16×2000 |
16 |
12 |
2000 |
5.8 |
650 |
260 |
230 |
15 |
7.6 |
5240×1485 ×1600 |
SW11X-B-16×2500 |
16 |
12 |
2500 |
5.8 |
750 |
300 |
260 |
22 |
9.4 |
5800×1770 ×1700 |
SW11X-B-16×3200 |
16 |
12 |
3200 |
5.6 |
900 |
340 |
300 |
22 |
16.8 |
6900×1900 ×1750 |
