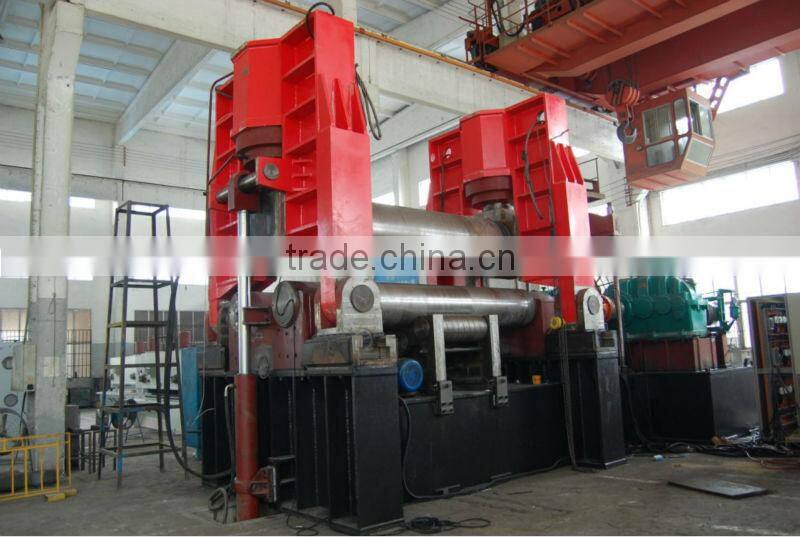

Help CenterSW11SNC-60X4000 Top Roller Universal Hydraulic Rolling Plate Machine
Related Products
-
ShenChong Brand SW11SNC-50/1500 Small Duty Rolling Machine With Low Price,roller Forming MachineUS$ 40,000 - 80,000MOQ: 1 Set -
SW11X-B-12X3000 Mechanical Level Down Three-Roller Roller MachineUS$ 5,000 - 32,000MOQ: 1 Set
-
SW11X-B-6X2000 Plate Metal Coiling Machine 3 Rollers CE ApprovedUS$ 5,000 - 32,000MOQ: 1 Set
-
Automatic High Speed Rolling Machine (SW11X-B-12X2500)mechanical Level Down Three Roller Rolling Machine Made in ChinaUS$ 15,000 - 75,000MOQ: 1 Set
-
SW11X-B-20x2500 High Quality Mechanical 3-roller Sheet Metal Bending MachineUS$ 2,000 - 30,000MOQ: 1 Set
Performance and characteristics
1. The upper roller can move horizontally and lift, the upper roller lift for changing curvature of plate,horizontal moves for symmetry of upper roller and two bottom rollers axes line vertical surface, realize technics requirement of plate end bend and other bend, there is no need of press machine in manufacture. The machine can finish two end of plate pre-bend and shape and straightenat the same time without return.
2. High precision end pre-bending
Setting length of vertical side freely, add press on upper roller for pre-bending, finishing high precision pre-bending.
High precision work piece
Upper roller is drum type, bottom rollers balance for cooperating adjustment, continual bend, which is used for sheet and thick plate.
3. Various bend shape;
It can roll O,U,R type work piece and stated taper through assistant taper device. O type bend: back bend method; U type bend: front bend method; R bend: Combination bend method.
Technical Parameter:
Model |
Max. Plate Thickness (mm) |
Max. pre- bending thickness (mm) |
Max. plate width (mm) |
Upper roller pressure (ton) |
Min. diameter of Max. plate thickness (mm) |
Upper roller diameter (mm) |
Bottom roller diameter (mm) |
Two Bottom rollers center space (mm) |
Motor power (KW) |
Weight (ton) |
Dimension L×W×H (mm) |
||
Roller rotate |
Hydraulic system |
Bottom roller move |
|||||||||||
SW11SNC-50×2500 |
50 |
40 |
2500 |
540 |
1800 |
610 |
320 |
580 |
55 |
15 |
11 |
44 |
6400×2650×3250 |
SW11SNC-50×3200 |
50 |
40 |
3200 |
610 |
2000 |
620 |
360 |
650 |
75 |
22 |
11 |
49 |
7400×2900×3550 |
SW11SNC-50×4000 |
50 |
40 |
4000 |
690 |
2000 |
700 |
380 |
700 |
75 |
30 |
11 |
|
|
SW11SNC-50×5000 |
50 |
40 |
5000 |
850 |
2500 |
790 |
420 |
780 |
45×2 |
37 |
15 |
|
|
SW11SNC-60×2500 |
60 |
50 |
2500 |
610 |
2000 |
650 |
380 |
700 |
75 |
30 |
15 |
|
|
SW11SNC-60×3200 |
60 |
50 |
3200 |
690 |
2300 |
710 |
420 |
780 |
75 |
30 |
15 |
|
|
SW11SNC-60×4000 |
60 |
50 |
4000 |
930 |
2500 |
780 |
440 |
820 |
45×2 |
37 |
15 |
|
|
SW11SNC-60×5000 |
60 |
50 |
5000 |
1050 |
3000 |
850 |
460 |
880 |
45×2 |
37 |
18.5 |
|
|
SW11SNC-70×3200 |
70 |
60 |
3200 |
930 |
2500 |
740 |
440 |
820 |
45×2 |
37 |
15 |
|
|
SW11SNC-80×4000 |
80 |
70 |
4000 |
1350 |
2800 |
880 |
520 |
1000 |
45×2 |
45 |
22 |
|
|
SW11SNC-100×4000 |
100 |
90 |
4000 |
1600 |
3500 |
940 |
560 |
1080 |
132 |
55 |
30 |
|
|
