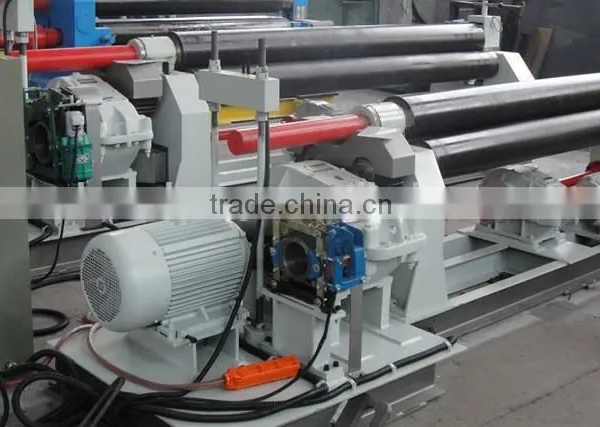

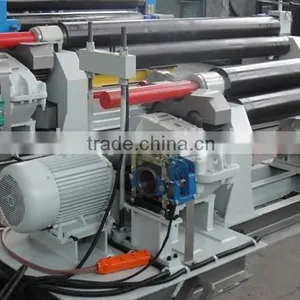

SW11-6x2000 rolls plate bending machine

SW11-6x2000 rolls plate bending machine

Performance and characteristics

The upper roller can move horizontally and lift,the upper roller lift for changing curvature of plate,horizontal moves for symmetry of upper roller and two bottom rollers axes line vertical surface,realize technics requirment of press machine in manufactrue.The machine can finish two end of plate pre-bend and shape and straighten at the same time without return.

High precision end pre-bending

Setting length of vertical side freely,add press on upper roller for pre-bending,finishing high precision pre-bending.

High precision work piece

Upper roller is drum type,bottom rollers balance for cooperating adjustment,continual bend,which is used for sheet and thick plate.

Various bend shape

It can roll O,U,R type work piece and stated taper through assistant taper device.O type bend:back bend method;U type bend:front bend method;R bend:Combinations bend method.

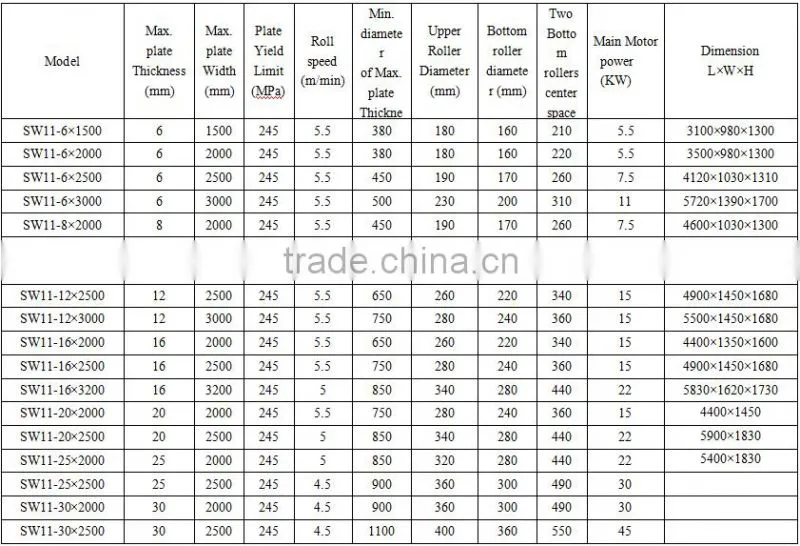

Technical parameter of SW11 series

MECHANICAL SYMMETRY THREE-ROLLER ROLLING MACHINE

Note: Plate yield limit 245Mpa is benchmark for design, the technical parameters for your reference, if product mend, parameter alter, we will not inform you in addition.
