Home > Electrical & Electronics > Sensor > Pressure Sensor > GPB132 1kg 3kg 5kg Small Scale Parallel Beam Load Cell

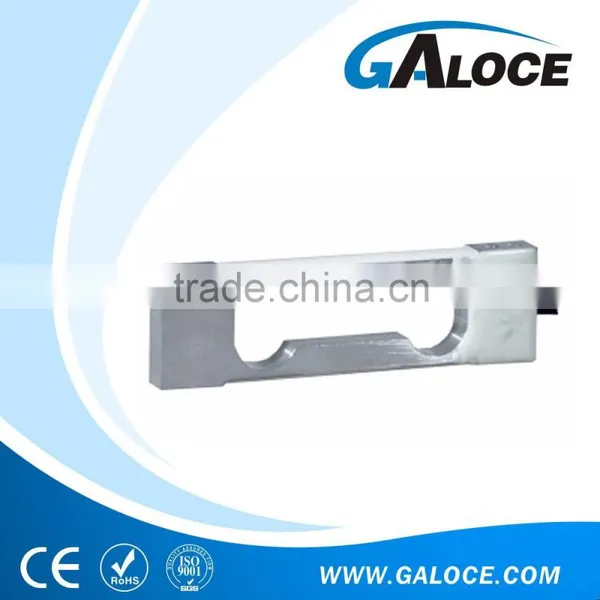

GPB132 1kg 3kg 5kg Small Scale Parallel Beam Load Cell

Name: GPB132 1kg 3kg 5kg Small Scale Parallel Beam Load Cell
Brand: GALOCE
SKU: 127699503
Availability: InStock

GPB132 1kg 3kg 5kg Small Scale Parallel Beam Load Cell thumbnail-1

GPB132 1kg 3kg 5kg Small Scale Parallel Beam Load Cell photo-1

US$ 12 - 15 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Shaanxi, China

Brand Name:

GALOCE

Model Number:

GPB132

Contact Supplier Request Quote Chat Now

Xi'an Gavin Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shaanxi, China

Brand Name GALOCE

Model Number GPB132

Usage Pressure Sensor

Theory Resistance Sensor

Output Analog Sensor

GPB132 1kg 3kg 5kg small scale parallel beam load cell

Related recommend

Product Description

Features

Range: 0.3kg-5kg
Material: aluminum alloy
Protection class: IP65
Application: electronic counting scales, platform scales and other
Small size electronic weighing devices.

Specification

Range	0.3-5kg
Rated sensitive	0.9±0.1 mV/V
Accuracy	C2 & C3
Combined error	±0.03 %FS & ±0.017 %FS
Creep	±0.03%FS/30min
Zero balance	±1.0%FS
Input resistance	405 ±6Ω
Output resistance	350 ±3Ω
Installation resistance	≥5000MΩ (50Vdc)
Compensated temp. range	-10~+40°C
Operating temp. range	-30~+60°C
Temp. effect on zero	0.02%FS/10°C
Temp. effect on span	0.02%FS/10°C
Excitation(recommended)	9~12Vdc
Recommended platform size	120mm x 120mm
Safe overload	120%FS
Ultimate overload	150%FS
Cable specification	φ3.8mm, cable length:0.45m

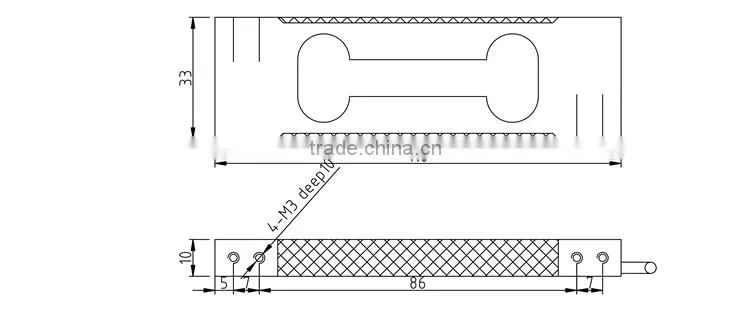

Dimension

Application

Process flowchart

Packaging & Shipping

Packing

Standard export package: each unit has individual box and all boxes are packed in standard packages.

Shipping

Products are shipped from China within 15 working days after payment had been received. Express could be used including DHL, Fedex, EMS, TNT etc. Orders could be tracked with reference we offered.

Our Services

Free consult support

24/7 free product relating consult through Alibaba Trade Manager, email, telephone, Skype, Whatsapp, Wechat and other measures.

All staffs of GALOCE are open, honest and communicative to customers with respect.

Customization

Provide OEM service, most products are customizable (please consult with us for details).

After sale service

One year warranty since product shipped out. Fully technical support for application.

FAQ

1. What essential information is needed for product selection?

Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.

2. How will you ensure quality of your products?
