GPB201 75kg 150kg 300kg micro luggage scale load cell
Feature
1. Aluminum alloy construction
2. Super low profile
3. Shall be used by set, one set contains four pcs
4. Widely used for low profile infant and adult medical scales, low profile platform scales, personal scales, airport baggage scales, postal scales etc.

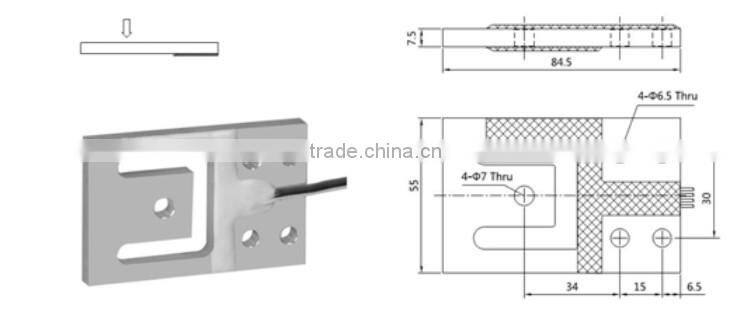

Dimension
Specifications: | |
Range (KG): 75, 150, 300 |
Input resistance (Ω): 1130±20 |
Accuracy: S |
Output resistance (Ω): 1000±10 |
Nonlinearity error (%F.S):±0.05 |
Insulation resistance (MΩ): ≥2000(50VDC) |
Repeatability error (%F.S):±0.05 |
Temp. effect on span (%F.S/10℃): ±0.05 |
Hysteresis error (%F.S):±0.05 |
Temp. effect on zero (%F.S/10℃): ±0.2 |
Rated output (mV/ V): 1.0±10% |
Operation temp. range (℃): -10~+40 |
Creep (%F.S/2min): ±0.05 |
Excitation voltage (V): ≤10 (DC) |
Zero balance (%F.S): ±1.0 |
Safe overload (%F.S): 150 |
Wiring information
Process flowchart
Free consult support |
|
24/7 free product relating consult through Alibaba Trade Manager, email, telephone, Skype, Whatsapp, Wechat and other measures.
All staffs of GALOCE are open, honest and communicative to customers with respect.
|
Customization |
|
Provide OEM service, most products are customizable (please consult with us for details).
|
After sale service |
One year warranty since product shipped out. Fully technical support for application. |
1. What essential information is needed for product selection? |
|
Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.
|
2. How will you ensure quality of your products? |
|
A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.
B. One year warranty and life time free consult to any needs related with our product.
|
3. What terms of payment is acceptable? |
|
T/T, L/C, trade assurance of Alibaba, Secure payment, West Union, Paypal, Money Gram, etc.
|
4. When production could be arranged? |
|
As soon as the payment was received.
|
