Home > Products > Shaft Pin Load Cells > GPL502 Hoist Scales Shaft Pin Load Cell 2 ton
GPL502 Hoist Scales Shaft Pin Load Cell 2 ton
- 10000 Piece / Pieces per Month
- Xi'an or any other port in China
- T/T Credit Card
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | GALOCE | Model Number: | GPL502 |
Usage: | Other, tension | Theory: | Resistance Sensor | Output: | Analog Sensor |
Product Description

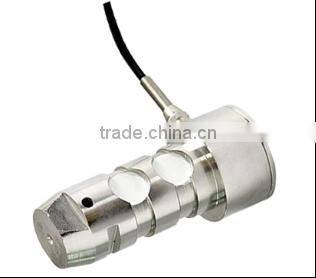

GPL502 Hoist Scales Shaft Pin Load Cell 2 ton
Features
1.Using bridge type double shear structure
2.High safety, good stability strong resistance to lateral force

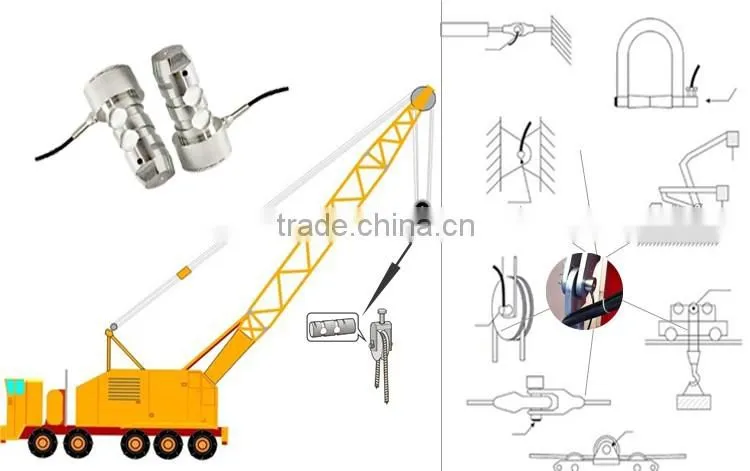

3.Applied for harbor, dock goods metering, hoist and cranes
Specification
Specifications | |
Capacity | 1~10t |
Accuracy | ±0.5% |
Sensitivity | 1.0~2.0±0.05mv/v |
Creep | ≤0.03%F.S /30min |
Zero output | ≤±1%F.S |
Temperature Effect on Zero | ≤0.03%F.S /10℃ |
Temperature Effect on Output | ≤0.03%F.S /10℃ |
Operating Temperature | -20℃~+70℃ |
Input impedance | 750±15Ω |
Output Impedance | 700±5Ω |
Insulation Resistance | >5000MΩ(50VDC) |
Safety overload | ≤150%F.S |
Ultimate overload | ≤200%F.S |

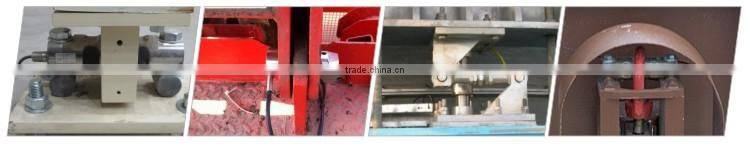

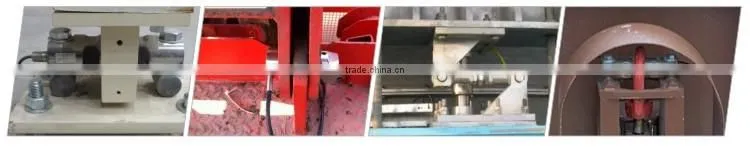

Application
Packing
Standard export package: each unit has individual box and all boxes are packed in standard packages.
Shipping
Products are shipped from China within 15 working days after payment had been received. Express could be used including DHL, Fedex, EMS, TNT etc. Orders could be tracked with reference we offered.
Free consult support |
24/7 free product relating consult through Alibaba Trade Manager, email, telephone, Skype, Whatsapp, Wechat and other measures.
All staffs of GALOCE are open, honest and communicative to customers with respect.
|
Customization |
Provide OEM service, most products are customizable (please consult with us for details).
|
After sale service |
One year warranty since product shipped out. Fully technical support for application.
|
1. What essential information is needed for product selection? |
Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.
|
2. How will you ensure quality of your products? |
A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.
B. One year warranty and life time free consult to any needs related with our product.
|
3. What terms of payment is acceptable? |
T/T, L/C, trade assurance of Alibaba, Secure payment, West Union, Paypal, Money Gram, etc.
|
4. When production could be arranged? |
As soon as the payment was received.
|
