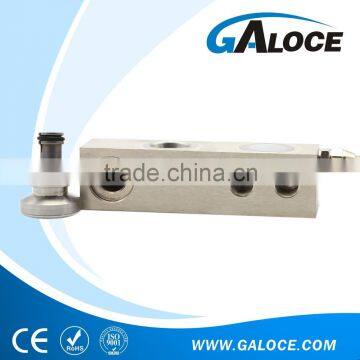

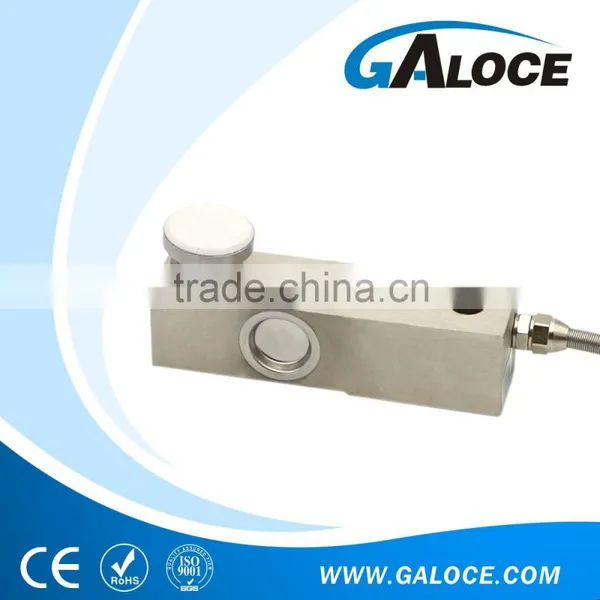

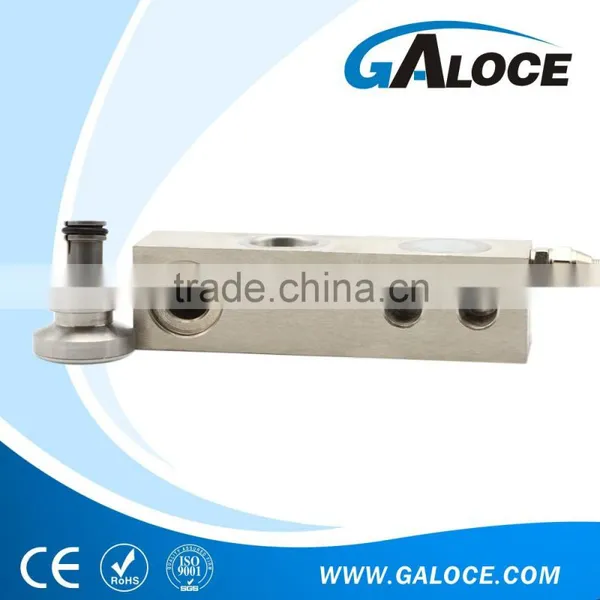

GSB213 IP68 2.5klb 5klb stainless steel load cell
Features
1. Wide range of capacities
2. Alloy steel construction
3. Environmental Protection IP68 with complete hermetic sealing
4. Unique blind loading hole
5. High input resistance
6. Calibration in mV/V/Ω
Specification
Specification | |||||
Maximum capacity (E max ) |
klb |
0.5 / 1 / 2.5 / 5 / 10 |
0.5 / 1 / 2.5 / 5 |
||
Metric equivalents (1 lb=0.45359 kg) |
kg |
227 / 454 / 1134 / 2268 / 4536 |
227 / 454 / 1134 / 2268 |
||
Accuracy class according to OIML R60 |
|
(GP) |
C3 |
C3 MI 6 |
|
|
Maximum number of verification intervals (n max ) |
|
n.a. |
3 000 |
3 000 |
|
Minimum load cell verification interval (v min ) |
|
n.a. |
E max /11 500 |
||
|
Temperature effect on minimum dead load output (TC 0 ) |
% * RO/10°C |
≤ ± 0.0400 |
≤ ± 0.0122 |
||
|
Temperature effect on sensitivity (TC RO ) |
% * RO/10°C |
≤ ± 0.0200 |
≤ ± 0.0100 |
||
Combined error |
% * RO |
≤ ± 0.0500 |
≤ ± 0.0200 |
≤ ± 0.0180 |
|
Non-linearity |
% * RO |
≤ ± 0.0400 |
≤ ± 0.0166 |
≤ ± 0.0166 |
|
Hysteresis |
% * RO |
≤ ± 0.0400 |
≤ ± 0.0166 |
≤ ± 0.0083 |
|
Creep error (30 minutes) / DR |
% * RO |
≤ ± 0.0600 |
≤ ± 0.0166 |
≤ ± 0.0083 |
|
|
Option |
Min. load cell verification interval (v min opt ) |
|
n.a. |
E max /23 000 |
|
|
Temp. effect on min. dead load output (TC 0 opt ) |
% * RO/10°C |
n.a. |
≤ ± 0.0061 |
||
Rated Output (RO) |
mV/V |
2 ± 0.1% |
|||
Calibration in mV/V/Ω (A...I classified) |
% |
≤± 0.05 (≤± 0.005) |
|||
Zero balance |
% * RO |
≤ ± 5 |
|||
Excitation voltage |
V |
5-15 |
|||
Input resistance |
Ω |
1100 ± 50 |
|||
Output resistance |
Ω |
1000 ± 2 |
|||
Insulation resistance (100 V DC) |
MΩ |
≥ 5000 |
|||
Safe load limit |
% * E max |
200 |
|||
Ultimate load |
% * E max |
300 |
|||
Safe side load |
% * E max |
100 |
|||
Compensated temperature range |
°C |
–10...+40 |
|||
Operating temperature range |
°C |
–40...+80 (ATEX –40...+60) |
|||
Load cell material |
|
stainless steel 17-4 PH (1.4548) |
|||
Sealing |
|
complete hermetic sealing; cable entry sealed by glass to metal header |
|||
Protection according EN 60 529 |
|
IP68 (up to 2 m water depth) / IP69K |
|||
|
The limits for Non-Linearity, Hysteresis, and TC RO are typical values. The sum of Non-linearity, Hysteresis and TC RO meets the requirements according to OIML R60 with p LC =0.7. | |||||

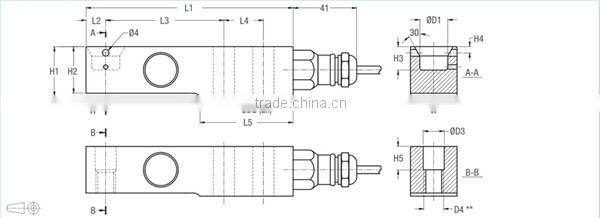

Dimension
Type |
L1 |
L2 |
L3 |
L4 |
L5 |
H1 |
H2 |
H3 |
H4 |
H5 |
W |
D1 |
D2 |
D3 |
D4 |
Mounting bolts |
Torque * |
|
500 lb/ 1000 lb |
133.4 |
12.7 |
76.2 |
25.4 |
59.9 |
31 |
28.8 |
15 |
4 |
15 |
30 |
18 |
13 |
13.5 |
M12 |
M12 8.8 |
90 Nm |
2500 lb |
133.4 |
12.7 |
76.2 |
25.4 |
59.9 |
31 |
30.5 |
15 |
4 |
15 |
30 |
18 |
13 |
13.5 |
M12 |
M12 8.8 |
90 Nm |
5000 lb |
133.4 |
12.7 |
76.2 |
25.4 |
59.9 |
31 |
30.5 |
15 |
4 |
15 |
30 |
18 |
13 |
13.5 |
M12 |
M12 10.9 |
120 Nm |
10000 lb |
177.8 |
19.1 |
95.3 |
38.1 |
92.7 |
43.6 |
38.1 |
20.5 |
8 |
20.1 |
43 |
25 |
21 |
21.5 |
M20 |
M12 8.8 |
400 Nm |
|
* Torque values assume oiled threads. ** Unified thread 1/2-20 UNF (500...5000 lb) and 3/4-16 UNF (10000 lb) is available. | |||||||||||||||||

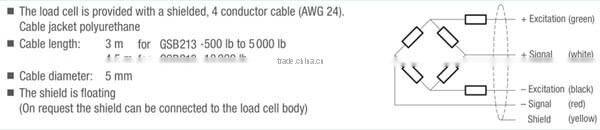

Wiring
