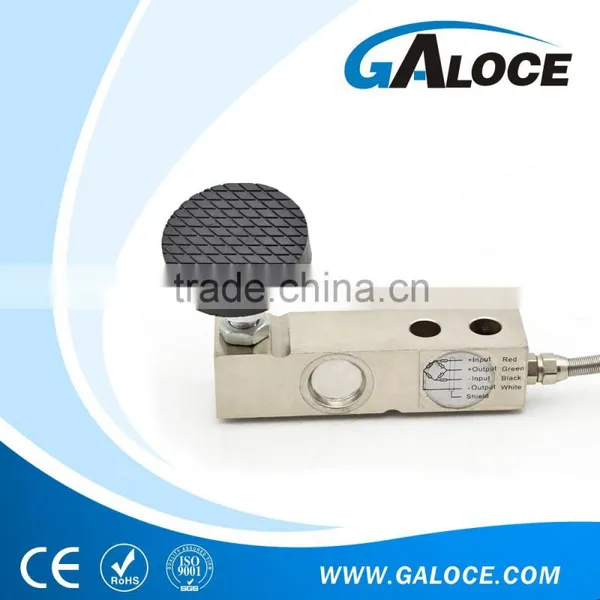

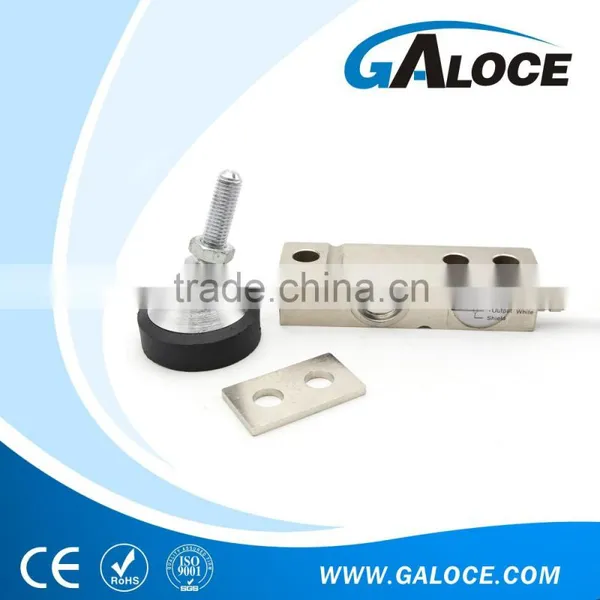

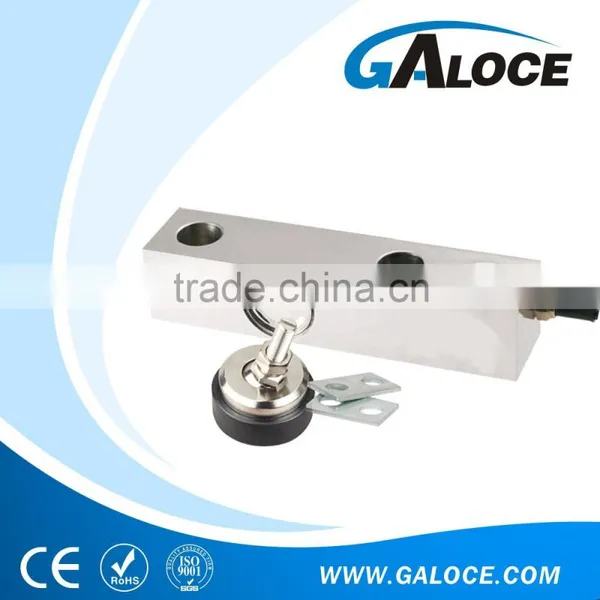

GSB205 Industrial 1 ton analog beam weight sensor
GSB213 GSB202 GSB200A GSB200 GSB211

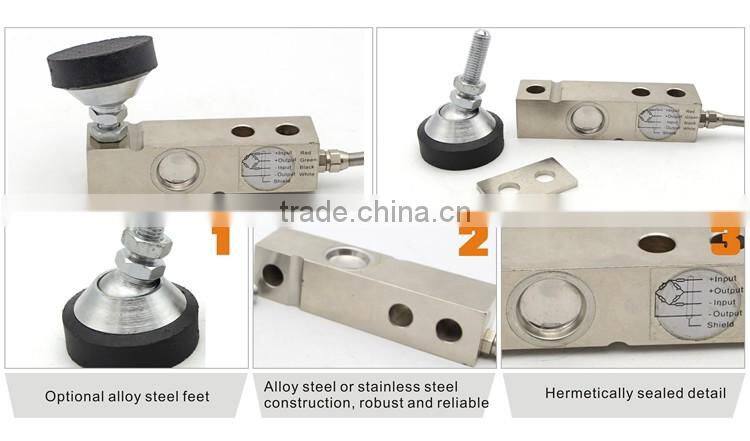

Features
1. Made of alloy steel or stainless steel
2. Suitable for truck scale, electronic scale and other weighing devices
3. Optional internal transmitter for 4-20mA or 0-5V output
Specification
Specification | |
Range (T): 0.5-10 |
Output resistance (Ω): 350±3 |
Accuracy: C3 |
Insulation resistance (MΩ): ≥5000 |
Comprehensive error (%F.S): ±0.02 |
Temp. effect on span (%F.S/10℃): ±0.02 |
Rated output (mV/ V): 2.0 |
Temp. effect on zero (%F.S/10℃): ±0.02 |
Creep (%F.S/30min): ±0.02 |
Operation temp. range (℃): -20~+65 |
Zero balance (%F.S): ±1.0 |
Excitation voltage (V): 10(DC) |
Input resistance (Ω): 380±10 |
Safe overload (%F.S): 150 |

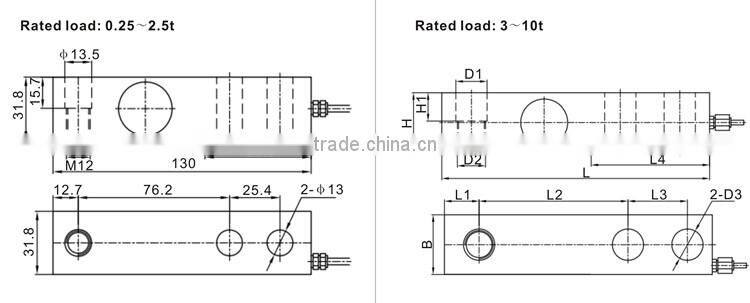

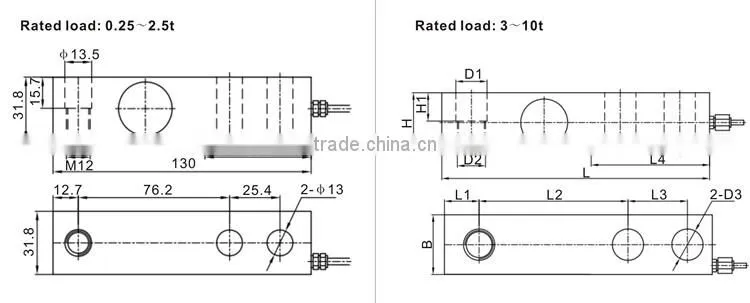

Dimension
Range |
Size (mm) |
||||||||||
kN |
T |
L |
L1 |
L2 |
L3 |
L4 |
H |
H1 |
D |
D1 |
W |
5-25 |
0.5-2.5 |
130 |
15.8 |
25.4 |
76.2 |
54 |
31.8 |
85-98 |
12.7 |
M12/M16 |
31.8 |
30-50 |
3-5 |
171 |
19.1 |
38.1 |
95.3 |
80 |
38.1 |
100-110 |
20 |
M18x1.5 |
38.1 |
100 |
10 |
222.5 |
25.4 |
50.8 |
123.8 |
110 |
50.8 |
110-120 |
26 |
M24x2 |
50.8 |
Product Details

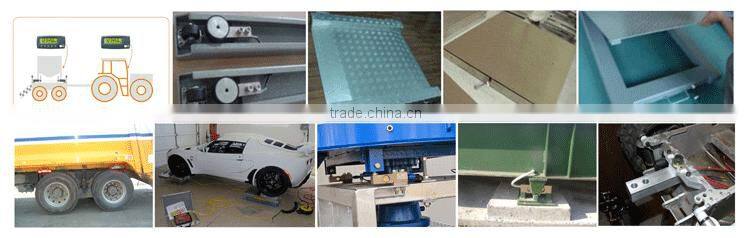

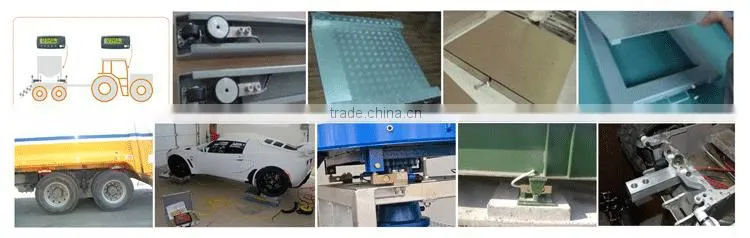

Applicaton
Free consult support |
|
24/7 free product relating consult through Alibaba Trade Manager, email, telephone, Skype, Whatsapp, Wechat and other measures.
All staffs of GALOCE are open, honest and communicative to customers with respect.
|
Customization |
|
Provide OEM service, most products are customizable (please consult with us for details).
|
After sale service |
|
One year warranty since product shipped out. Fully technical support for application.
|
1. What essential information is needed for product selection? |
|
Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.
|
2. How will you ensure quality of your products? |
|
A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.
B. One year warranty and life time free consult to any needs related with our product.
|
3. What terms of payment is acceptable? |
|
T/T, L/C, trade assurance of Alibaba, Secure payment, West Union, Paypal, Money Gram, etc.
|
4. When production could be arranged? |
|
As soon as the payment was received.
|
