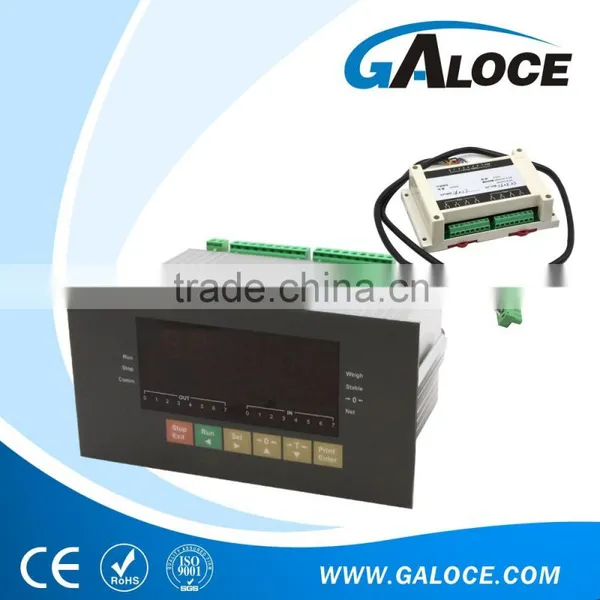

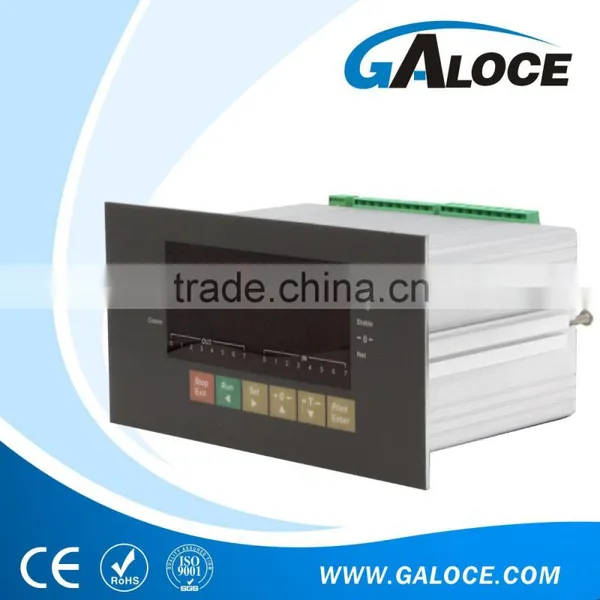

GSI302 Catch weigher weighing controller loadcell indicator
Features
Weighing indicator GSI302 adopts 32-bits ARM processor of core Cortex M3 and high precision of A/D conversion technology.
It displays to the conversion of weight signals. The max .conversion speed is over 200 times/sec.
This indicator can be composed to catch weigher, Automatic gravimetric filling instruments, etc. It is used in various fast speed and high precision requirement weighing control.
Standard function
* Selectable of four program mode: self-control or external-control catch weigher, plus or minus Automatic gravimetric filling instruments. The catch weigher can be set to be general catch weigher and peak-value maintenance scale. It can store 5 batching material used as fix-quantity scale or catch weigher
* Able to set digital filter intensity, A/D conversion speed
* Weighing data save, check and delete, protection in case of power off
* Real-time clock without effect on power off
* Standard: 8 input, 2 of them can be high speed counting input, coder input or interrupt(high speed reflection) input; 8 output(optional for relay box). Be able to fix-quantity control of two materials for standard program
* Input & output can be expanded, each IO expanding box can be expanded to 8 on/off input and 8 on/off output. The max. connection number of IO expanding box is four. Total quantity of IO is 40 input and 40 output
* 2 separate serial communication interface, one is RS232, another is RS232/RS422/RS485/Modbus for selection, with two communication ways by continuous sending or on command method
* Parallel/serial print interface, able to connect many kinds of printers
* Chinese/English weighing data, accumulation, batching material or calibration can be printed
* Optical isolation 20mA current loop scoreboard display interface
* Optical isolation 4~20mA/0~5V/0~10V analog output(optional)
Specification
Accuracy class |
III |
Max. verified counts |
n=3000 |
Min. input signal voltage of verified counts |
1μV |
Input signal range |
-15mV ~ 15mV |
Weighing load cell power supply DC |
5V;80mA |
Max. connection number of load cell |
4 at 350Ω |
Load cell connection mode |
6 wires, auto compensation for long distance |
Display | |
Main display |
6 bits LED, data height: 0.56inch |
Accessory display |
6 bits LED, data height: 0.4inch, 23 status instruction lights |
Real time clock |
Time and date can be displayed on the indicator panel |
Max. data storage |
8064 weighing data or 4032 time & weighing data |
Scoreboard display interface |
serial output, 20mA current loop signal |
Communication interface |
2 serial RS232C.one can be set to be RS422/RS485, baud rate 600-57600 for selection |
Parallel print interface |
able to connect with micro printer, wide-line printer model LT800, KX P1121 or LQ1600K |
Output |
8 optical isolation, open collector on/off output, be able to connect 8 relay box |
Input |
8 optical isolation input, input signal +12~+24V DC |
Input & output expand |
able to connect 4 expanding module, each module including 8 optical isolation input and 8 optical isolation relay output. |
Analog output |
4-20mA / 0-5V / 0-10V, three models for selection |
Power supply |
110~230V AC;50/60 Hz |
Operating temperature/humidity |
0℃~40℃;≤90%RH |
Storage temperature/humidity |
-20~50℃;≤90%RH |
Dimension of installation platform |
152×77 (mm) |
Weight |
0.8kg |
Packing
Standard export package: each unit has individual box and all boxes are packed in standard packages.
Shipping
Products are shipped from china. We will sent out within 15 working days after the payment. We usually sendthe parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach your side which depend on the country delivery to.
Service standards: we are committed to provide a high quality and responsive service to all clients
The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.
Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business
OEM available
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.
4.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
5. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
