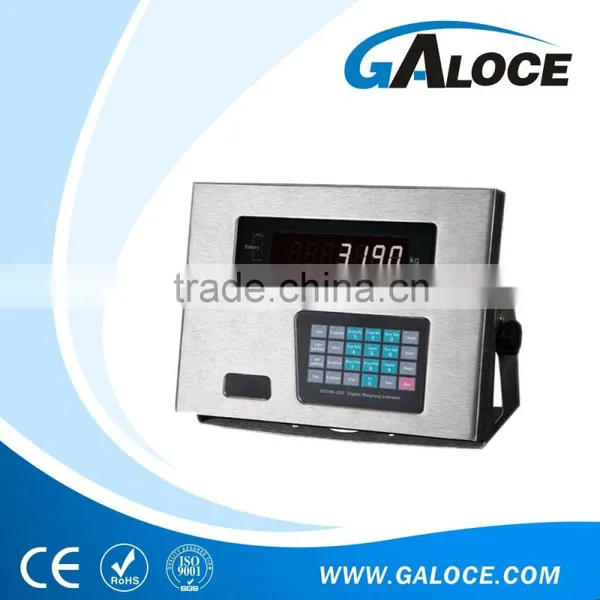

GSI102 12V Floor scale Digital weight indicator
Features
1.AC/DC Power supply
2.Interface adopts new magnet-proof technology
3.With optional interface
(a).Printing data separate module
(b).Digital output module
(c).4~20mA module
Standard function
Weighing indicator GSI102 is widely applied in electronic floor scale, electronic truck scale, static railway scale and so on alike static weighing system equipped with 1~16 digital load cells.
Standard Function:
1. Able to connect several sorts of digital load cells
2. Auto/semi- auto/manual angle correction
3. Digital load cell communication address modification function
3. Single load cell and single angle data checking function
4. With two divisions auto switch function
5. Non-linearity correction and calibration tolerance correction
6. Time power-off function
7. Weighing data save/ check/ delete/ protection in case of power off
8. Standard RS232C (RS422/ RS485 optional) communication interface
9. Standard parallel print interface
10. Able to save 1000 vehicle ID (including tare weight), 201cargo ID (including cargo name),1001 weighing records
11. Able to back up and calibrate various parameters of indicator, reliable and practical
Specification
Digital load cell connection | |
Connection method |
RS485, compatible for both four and six wires |
Connection distance |
About 1000 meters |
Connection quantity |
1-16 |
Load cell power |
DC 12V, 0.8A (MAX) |
| |
Display |
7 bits super bright LED display, 10 indications |
Clock |
real clock |
| |
Scoreboard interface | |
Signal |
20mA current loop, serial |
Baud rate |
600 |
Transmission distance |
≤2000 meters |
| |
Printer interface | |
Available for wide line printer |
LQ-300K,KX-P1131,KX-P1121 ,DS-300 |
Thermal micro-printer |
POS58, T58D |
| |
Serial communication interface | |
Standard interface |
RS232C (RS422/RS485 optional) |
Power supply |
AC187~242V; 49~51HZ |
DC power supply |
(outside) rechargeable 12V battery |
Packing
Standard export package: each unit has individual box and all boxes are packed in standard packages.
Shipping
Products are shipped from china. We will sent out within 15 working days after the payment. We usually sendthe parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach your side which depend on the country delivery to.
Service standards: we are committed to provide a high quality and responsive service to all clients
The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.
Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business
OEM available
1. What detailed information do I need to provide if I want to place an order?
We need to know the following information: Capacity, Usage and other related parameters you need.
2. Do you have any discount?
Yes, if you buy large QTY, please send us a email, we will give you a big discount.
3. What terms of payment are available?
We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.
4.When will you arrange the production?
We will arrange the production immediately after receiving your payment.
5. How do you ensure good product quality?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
