Help CenterALRSM 3-piece Aluminum Connecting Rod Bearing
Related Products
ALRSM 3-piece aluminum connecting rod bearing.
| |||||||||||||||||||||||||
 |
|||||||||||||||||||||||||
| MATERIALS | |||||||||||||||||||||||||
| BALL | BODY | RACE | |||||||||||||||||||||||
| 52100 STEEL | ALUMINUM | STEEL ALLOY, HEAT TREATED | |||||||||||||||||||||||
| Rc 56 MIN. HARD | 7075-T6 | ZINC PLATED | |||||||||||||||||||||||
| HARD CHROME PLATED | HARD ANODIZED RED | CHROMATE TREATED | |||||||||||||||||||||||

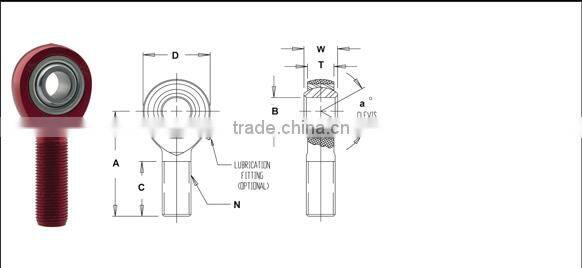

| MALE ROD | B | D | W | T | BALL | A | N | C | a° | ULT. | APPROX. | ||||||||||||||
| ENDS | DIA. | DIA. | WIDTH | WIDTH | DIA. | LGTH | THD. | LGTH | MIS | STATIC | WEIGHT | ||||||||||||||
| RIGHT | LEFT | ANGLE | RADIAL | (lbs.) | |||||||||||||||||||||
| HAND PART NO. | HAND PART NO. | 0.001 | 0 | -0.005 | 0 | REF. | 0 | UNF 3A | 0.031 | REF. | LOAD (lbs.) | ||||||||||||||
| ALRSM5 | ALRSML5 | 0.3125 | 1 | 0.437 | 0.344 | 0.625 | 1.938 | 2003/8/24 | 1.25 | 12 | 5,590 | 0.06 | |||||||||||||
| ALRSM6 | ALRSML6 | 0.375 | 1.125 | 0.5 | 0.406 | 0.719 | 2.125 | 7/16-20 | 1.375 | 10 | 7,718 | 0.088 | |||||||||||||
| ALRSM7 | ALRSML7 | 0.4375 | 1.312 | 0.562 | 0.437 | 0.812 | 2.438 | 2001/2/20 | 1.5 | 12 | 11,000 | 0.121 | |||||||||||||
| ALRSM8 | ALRSML8 | 0.5 | 1.5 | 0.625 | 0.5 | 0.937 | 2.625 | 2005/8/18 | 1.625 | 10 | 14,880 | 0.2 | |||||||||||||
| ALRSM8-6 | ALRSML8-6 | 0.375 | 1.5 | 0.625 | 0.5 | 0.937 | 2.625 | 2005/8/18 | 1.625 | 10 | 14,880 | 0.2 | |||||||||||||
| ALRSM10 | ALRSML10 | 0.625 | 1.75 | 0.75 | 0.562 | 1.125 | 2.875 | 2003/4/16 | 1.75 | 13 | 19,240 | 0.317 | |||||||||||||
| ALRSM10-8 | ALRSML10-8 | 0.5 | 1.75 | 0.75 | 0.562 | 1.125 | 2.875 | 2003/4/16 | 1.75 | 13 | 19,240 | 0.317 | |||||||||||||
1.Neutral packing (plastic bag/carton/pallet)
2.We can pack according to customer's request.
Free samples for customers if available in our stock,freight collect by customers.
For formal bulk order,lead time:within 25-30 days.
Q:What's the warranty for the products?
A:For the products,we have 2 years warranty.If any quality problems on our side occur in this period,we will compensate for the goods or make a replacement.
Q:Can you give me discounts?
A:Yes,if your order quantity nice ok,we can negotiate.
Q:Will you send me free samples?
A:Yeah,we would love to.
Q:Do you like to serve the client only with big orders?
A:We enjoy to grow up together with all our clients whatever big or small.
You will become bigger and bigger to be with us,I believe it for sure.
