Specifications

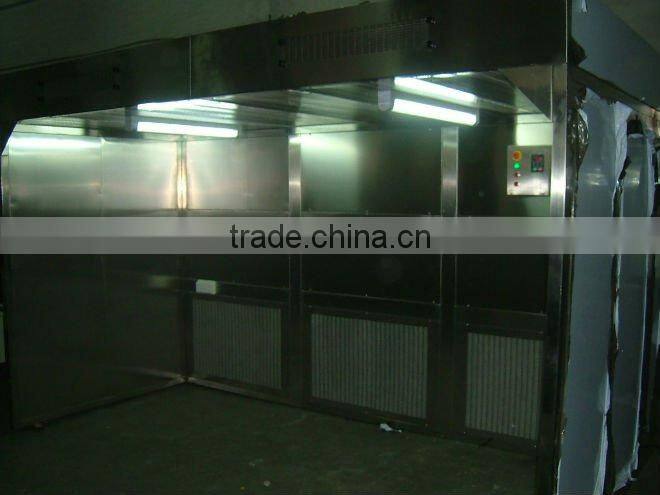

Clean BoothMay act according to the customer request design contour The purity achieved ISO3---ISO8DISPENSING BOOTH
DISPENSING BOOTH IS USED TO PERFORM DISPENSING OPERATIONS IN PHARMACEUTICAL INDUSTRIES.THE EQUIPMENTS SERVE AS SAFETY EQUIPMENT TO OPERATOR DOING THE DISPENSING OPERATION.IN DISPENSING BOOTH BIG PACKING OF DANGEROUS CHEMICALS ARE DISPENSED TO SMALL PACKING BY OPERATOR UNDER CLASS 100 ENVIRONMENT AND 10% EXHAUST SYSTEM ADOPTED.DISPENSING UNIT IS ALWAYS A MEGATIVE PRESSURE UNIT AND AIR IS CIRCULATED FROM OUTSIDE TO INSIDE OF THE EQUIPMENT.HENCE DURING DISPENSING OPERATION POWDER IS ALWAYS SUCKED AT PRE FILTER GIVEN AT THE BOTTON OF THE CABINET SO THAT CHENICALS DO NOT AFFECT THE OPERATOR.
DISPENSING BOOTH CONSISTS OF HEPA FILTER,PRE FILTER,EXHAUST FILTER WITH EFFICIENCY OF 99.997% DOWN TO 0.3μm AT RATED AIR FLOW AND PRESSURE DROP,VELOCITY OF 0.45M/S IS ADJUSTED TO GET LAMINAR FLOW IN THE EQUIPMENT.
SYSTEM IS EQUIPPED WITH INBUILT MOTOR BLOWER AND ARE DYNAMICALLY BALANCED FOR LOW NOISE AND VIERATIONS,WITH PRE FILTER AT SUCTION,10% AIR IS DISCHARGED THROUGH EXHAUST FILTER TO GENERATE NEGATIVE PRESSURE IN EQUIPMENT.
DESIGN
LOCATION :PRODUCTION AREA
OVER ALL SIZE :1524*1974*2330mm
WORK AREA :1424*1544*2130mm
CLASS REQUIRED :CLASS-100
REQUIRED VELOCITY :>0.45m/s
MOTOR :Germany ebm D4E225-CC01-02
IMPELLER :steel
HEPA FILTER :1465*475*69mm*3pc
EXHAUST HEPA : 760*150*50mm*1pc
