Stainless Steel #304 Climate Test Chamber for Electronics Testing

Stainless Steel #304 Climate Test Chamber for Electronics Testing thumbnail-1
Stainless Steel #304 Climate Test Chamber for Electronics Testing thumbnail-2
Stainless Steel #304 Climate Test Chamber for Electronics Testing photo-1
Stainless Steel #304 Climate Test Chamber for Electronics Testing photo-2
US$ 15,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KOMEG
Model Number:
KMHW
Contact Supplier Request Quote Chat Now
Guangdong KOMEG Technology Ind Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KOMEG
Model Number KMHW
Power Electronic
Usage Process Testing Machine


Stainless Steel #304 climate test chamber for electronics testing


1. Environmental Walk-In Test Chambers Advantages / Benefits:


Many standard configurations and sizes for precise application,  facility testing needs
Energy efficient and durable design, service time can be up to 10 years
Convenient access panel for easy maintenance
Quiet operation, advanced noise control technology

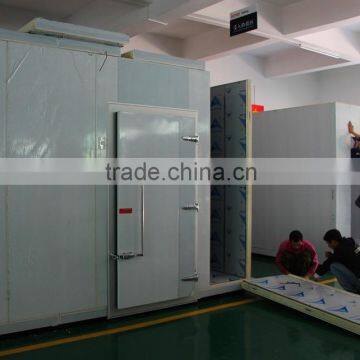

Modular structure for easy assembly and economical shipping
Alarm and shutdown circuit assures safe chamber and product temperatures in the KOMEG Environmental Walk In Chamber

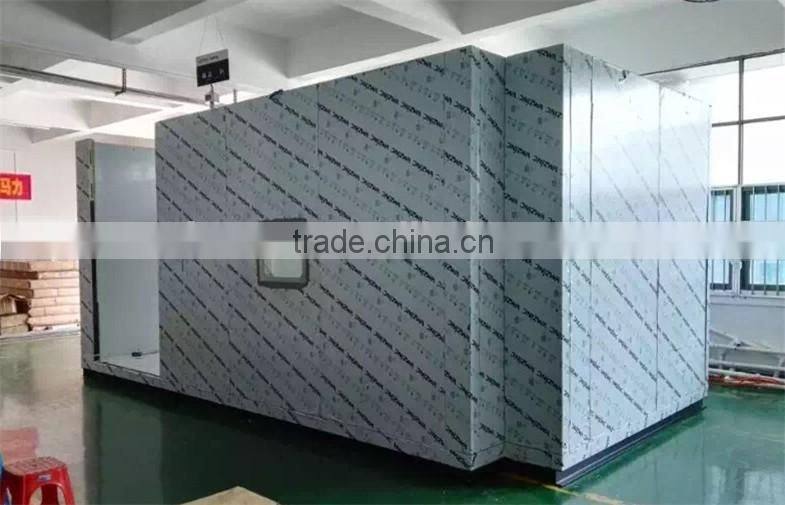

2. Walk-In Chamber Features:

Tongue and groove constructed chamber panels
Stainless steel interior walls and galvanized exterior walls
Purethane foam insulated wall panels, and insulated / heated window in chamber door
Interior lighting
Door standard, larger options available
High volume horizontal-down type air circulation
Two centrifugal type blower wheels
Single stage or cascade refrigeration system
Copper coil with expanded aluminum heat transfer fins
TEV type refrigerant control
One or two high quality, reciprocating type compressors
Refrigeration taps and pressure gauges
Open-air nichrome wire heater elements supported by ceramic insulators
Vent port with flexible, self-sealing, silicone diaphragm
Vapor Flow humidity system
Automated process control and data recording
PT-100 Ohm Platinum RTD sensors for temperature measurement
High-low pressure switch and oil pressure switch




3.  Main Technical Parameters


Model KMHW-17
Volume(m³) 35.2CBM
Interior Dimensions W3900 x H2100 x D4300mm
Exterior Dimensions W5050 x H2350 x D4500mm
Safety Devices(standard) No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Standard accessories Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator
Control System  Balanced Temperature & Humidity Control System
Refrigeration system Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )
Controller Panel 7-inch LCD Touch panel, Chinese or English display selectable
Operation model Program or fix point running
Memory capacity 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles
Accuracy Temp.:0.1% of F.S ± 1 digit  Humidity:0.1% of F.S ± 1 digit
Input Temp.: pt-100, Humidity: pt-100 or ~5V DCV
Comm.port  RS-232 or RS-485 ( Softawre is option)
Temp. range Maximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC
Humidity Range 10%, 20%, 30% ~ 95%
Temp. constancy ±0.5 ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0 ºC
Humidity uniformity ±5.0%R.H
Ambient Temp. +5 ºC~+35 ºC
Wiring method AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires
Heat up time  +20 ºC~+80 ºC, Within 60 min
Pull down time  +20 ºC ~ -55 º,  -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60  min
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel ( SUS304)
Insulation material Rigid polyurethane foam
Door size (mm) Single wing: W800 x H1800;  Double wing: W1600 x H1800;
Note:1. We reserve the right to change specifications without prior notice   2.Customized sizes and configurations available






4. Control method and characteristics:


Precision microcomputer control temperature and humidity system, with PID control the refrigerant flow to make the system’s heating / humidification reduction, to achieve low power consumption, energy saving, carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable use.

Flexibility for structure

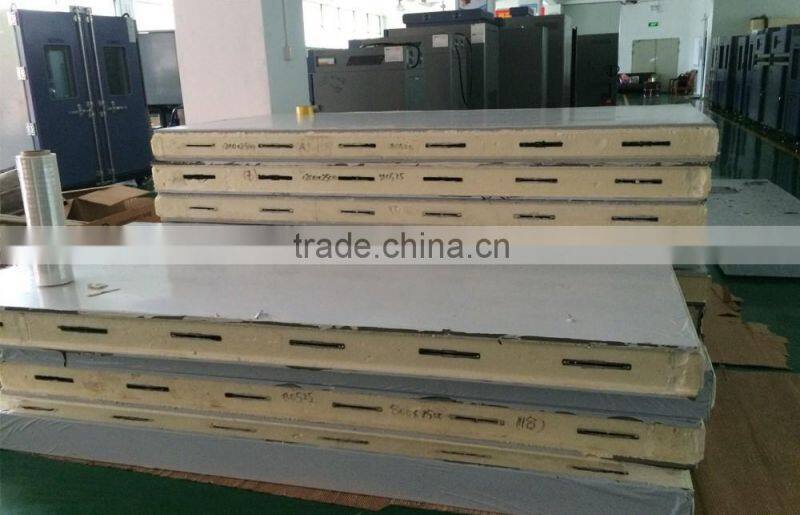

The panels used in our chamber are 4” (100mm or 150mm) Thick urethane-foam sandwiched between a stainless-steel interior wall and a coated-steel exterior. An assembled box is self-supporting. So that no heavy structural members are required. Different door sizes, flooring upgrades,access ports, and other modifications are possible.

Widest test range, most customizable



Stainless Steel #304 climate test chamber for electronics testingStainless Steel #304 climate test chamber for electronics testingStainless Steel #304 climate test chamber for electronics testing
