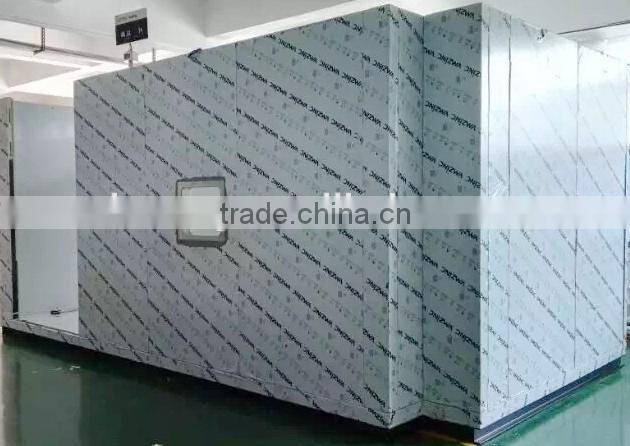

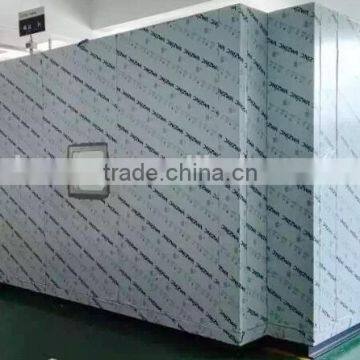

Customized Environmental Walk-In Chamber for Vehicle Automotive Components Testing

Customized Environmental Walk-In Chamber for Vehicle Automotive Components Testing thumbnail-1
Customized Environmental Walk-In Chamber for Vehicle Automotive Components Testing thumbnail-2
Customized Environmental Walk-In Chamber for Vehicle Automotive Components Testing photo-1
Customized Environmental Walk-In Chamber for Vehicle Automotive Components Testing photo-2
US$ 15,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KOMEG
Model Number:
KMHW
Contact Supplier Request Quote Chat Now
Guangdong KOMEG Technology Ind Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KOMEG
Model Number KMHW
Power Electronic
Usage Process Testing Machine


Customized Environmental Walk-In Chamber for vehicle automotive components Testing


Environmental Walk-In Test Chambers APPLICATION:



Walk-in Test Chambers are used for testing or storing products that require a large capacity chamber. Applications include full vehicle testing, automotive components, solar panels, electronic components, packaging, stability testing,biological research, industrial applications and more. KOMEG offers a broad selection of various types of walk-in chambers to meet almost any test requirement.






Offers flexibility for testing larger volumes at an economical price


Modular Walk-In chambers offer flexibility to meet virtually any size or configuration by using pre-fabricated / insulation panels.
Modular chambers are constructed of 4” /100mm thick polyurethane-foamed panels that lock together to form a tightly sealed
chamber with stainless steel interior and aluminum or white embossed exterior. Available in a variety of temperature
ranges to meet your specific testing needs





Modular Climate Conditioning Systems


KOMEG walk-In chambers feature our standard conditioning systems, which include refrigeration, air circulation,
electrical components, instrumentation and optional humidification needed to control your chamber environment.
A variety of different conditioning systems are available to meet your temperature and humidity requirements.
Our applications specialists will select the most appropriate, cost-effective system for your application.
These conditioning systems are designed to interface with an assembled Walk-In box without taking up valuable workspace in your chamber.
Each conditioning system unit includes hinged service panels for easy access and may be located on either side or the back of your walk-in box.
These systems may also be incorporated with existing Walk-In boxes. They can be ordered separately to replace
existing conditioning systems or add additional capacity to current walk-in chambers.








Walk-In Test Chambers Main Technical Parameters

Model KMHW-120
Volume(m³) 35.2CBM
Interior Dimensions W4000 x H5000 x D6000mm
Exterior Dimensions Actually design
Safety Devices(standard) No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Standard accessories Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator
Control System  Balanced Temperature & Humidity Control System
Refrigeration system Water Cooled
Semi-hermetic compressor, single stage or cascade refrigeration system,
CFC free refrigerant ( HFC-507 and HFC-23 )
Controller Panel 7-inch LCD Touch panel, Chinese or English display selectable
Operation model Program or fix point running
Memory capacity 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles
Accuracy Temp.:0.1% of F.S ± 1 digit  Humidity:0.1% of F.S ± 1 digit
Input Temp.: pt-100, Humidity: pt-100 or ~5V DCV
Comm.port  RS-232 or RS-485 ( Softawre is option)
Temp. range Maximum: 80 ºC,120 ºC;
Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC
Humidity Range 10%, 20%, 30% ~ 95%
Temp. constancy ±0.5 ºC
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0 ºC
Humidity uniformity ±5.0%R.H
Ambient Temp. +5 ºC~+35 ºC
Wiring method AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires
Heat up time  +20 ºC~+80 ºC, Within 60 min
Pull down time  +20 ºC ~ -55 º,  -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60  min
Interior material Stainless Steel Plate(SUS 304)
Exterior material Baked Painting Steel Or Stainless steel ( SUS304)
Insulation material Rigid polyurethane foam
Door size (mm) Single wing: W800 x H1800;  Double wing: W1600 x H1800;
Note:1. We reserve the right to change specifications without prior notice   2.Customized sizes and configurations available






Control method and characteristics:


Precision microcomputer control temperature and humidity system, with PID control the refrigerant flow to make the system’s heating / humidification reduction, to achieve low power consumption, energy saving, carbon reduction effect, cooling, heating, humidity control intelligent electronic control, long-term stable use.



Customized Environmental Walk-In Chamber for vehicle automotive components Testing






 The description is sourced from , for more detailes please refer to our website.
