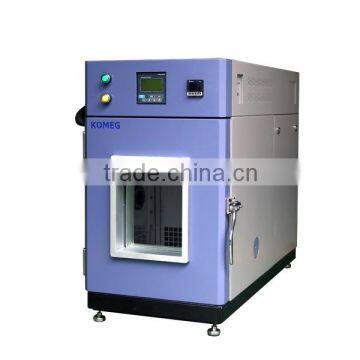

Unit Control System Temperature Humidity Environmental Chamber
An environmental chamber, also called climatic chamber or climate chamber, is an enclosure used to test the effects of specified environmental conditions on biological items, industrial products, materials, and electronic devices and components.
Model |
KMH-3600L |
KMH-3600L | |
Working Chamber Volume(L) |
W 1200 × H 2500 × D1200 mm |
Temp Rate of Change( ºC /Min) |
3.5 ºC /Min |
Temperature Range |
-40 ºC~+85 ºC( Rapid Temp Change -55 ºC~+85 ºC Full Linear Control) |
Humidity Constancy |
±0.5 ºC |
Temp Constancy |
±3.0 ºC |
Exterior Material |
Cold-rolled steel sheet (Rust proof & Plastic Spray treated )/ Stainless Steel |
Interior Material |
Stainless Steel Plate(SUS 304) |
Insulation Material |
Rigid Polyurethane Foam |
Safety Devices |
over pressure,over heat and over current protection for compressor, over temp. protection, |
Compressor |
Semi-Hermetic Compressor |
Cooling Mode |
Water Cooled |
Control system |
Balanced Temperature & Humidity Control System(BTC type) |
Heater |
Iron-chrome wire heater |
Blower |
Centrifugal Blower |
Observation Window |
Glass incorporating heat generator |
Temp Sensor |
Pt-100 |
Controller |
Touch screen programmable controller |
Ambient Temp. |
+5ºC~+35ºC |
Power |
AC 380V/50Hz 3phase 5 wires+ Ground wire |
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |
With solar panel holders and trolley optional.
1) Delicate touch and excellent user experience
2) Unique and compact design, top grade appearance, stable performance and easy operation.
3)Can simulate a wide range of temperature and humidity environments
4)Capable of testing large components, assemblies, and finished products
5)Customized sizes and configurations available
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Visiting our factory is highly welcomed.
After-Sales Service
* We will train you how to install, use and maintain the machine.
