Applicable to environmental adaptability and reliability testing in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc..
1. Dedicate touch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
6. One year warranties

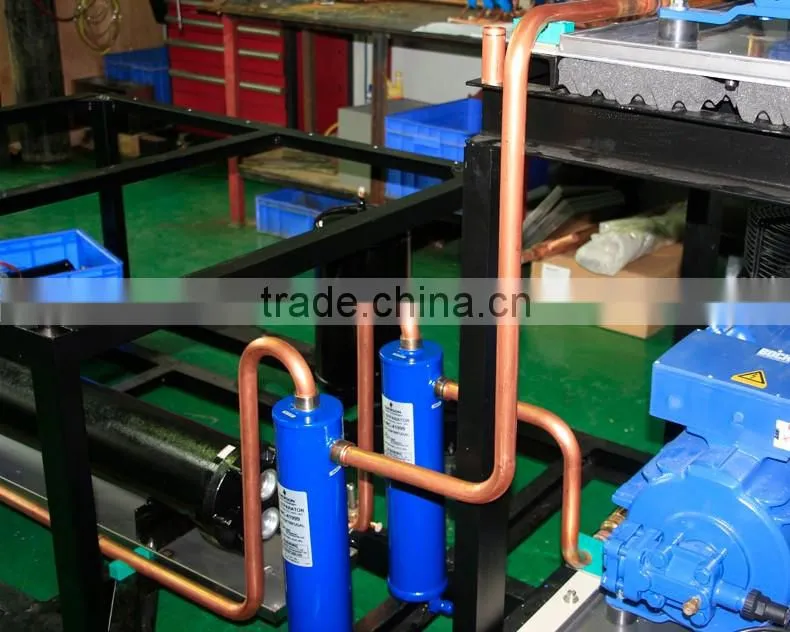

7. Japan imported UP-10D Seamless Welding Machine, especially for copper pipe welding

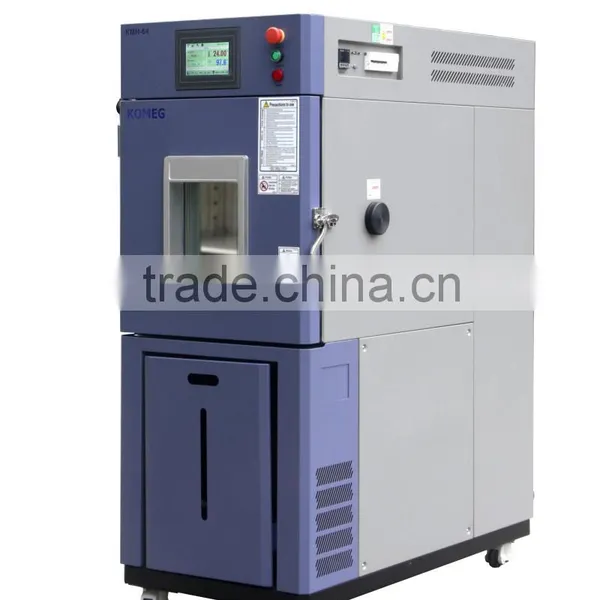

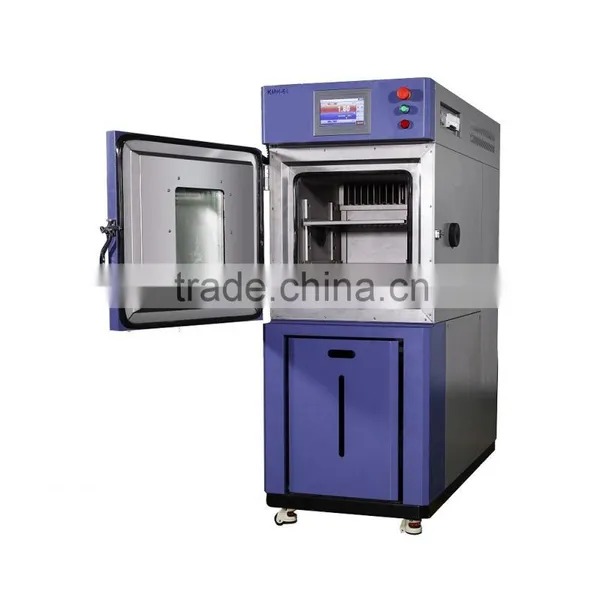

Simulate Real Environment Temperature Humidity Test Chamber Solar Module Tester
| Technical parameter: | ||||
| Model | KMH-1000R | |||
| 1000L chamber volume | ||||
| Temp. range | -20°C ~150°C | |||
| Display resolution | 0.1°C | |||
| Temperature stability | High±0.5°C ,low ±1.0°C | |||
| Temperature uniformity | ±2.0°C | |||
| Heat up time | -20°C ~+100°C,within 35 min | |||
| Pull down time | -20°C ~-20°C,within 45 min | |||
| Humidity range | 20~98%R.H,(standard), '10~98%R.H,(with humidifier) | |||
| Humidity constancy | ±2.5%R.H | |||
| Humidity uniformity | ±3.0%R.H | |||
| Interior Dimension(mm) | 1000W*1000H*1000D | |||
| Exterior Dimension(mm) | 1280W*2160H*1950D | |||
| Interior material | Stainless Steel Plate(SUS 304) | |||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | |||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | |||
| Total power | 14KW(heater 6KW included) | |||
| Max current | 30.3A | |||
| Water Consumption | 2.5L/hr | |||
| Ambient Temp. | +5°C ~+35°C | |||
| Power Supply | AC 380V±10%50Hz ,3 phase 4 wires +Ground Wires | |||
| Weight | 580KG | |||
| Sight window size | 460*560mm | |||
| Sample holder | 2 pcs | |||
| Fittings | cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m | |||

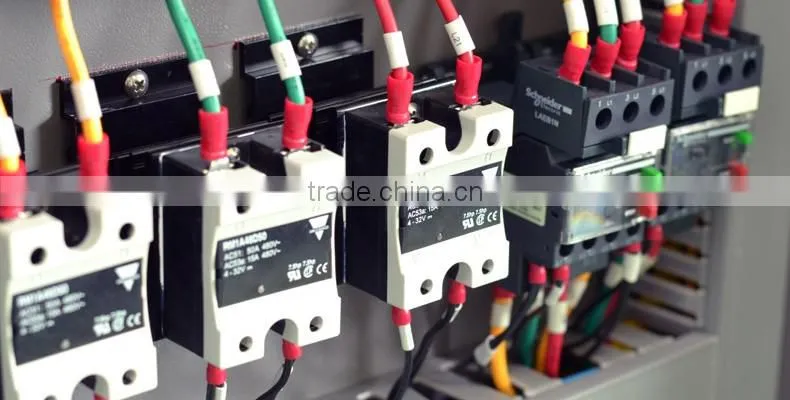

| Safety device (standard) | No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect | |||
| Control System | Balanced Temperature & Humidity Control (BTHC)System | |||

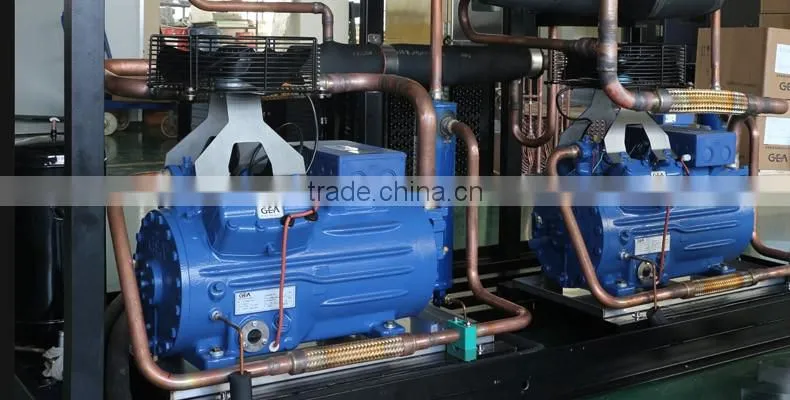

| Refrigeration system | Air Cooled (Water Cooled is option) | |||
| Hermetic compressor | ||||
| Single stage refrigeration system | ||||
| CFC-Free refrigerant(HFC-507/HFC-23) | ||||
| Controller | 7-inch LCD Touch Screen panel | |||
| Operation model :Program or fix point running | ||||
| Memory capacity :120programs,1200steps, | ||||
| All repeat 999 cycles, part repeat 99 cycles | ||||
|
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | ||||
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.

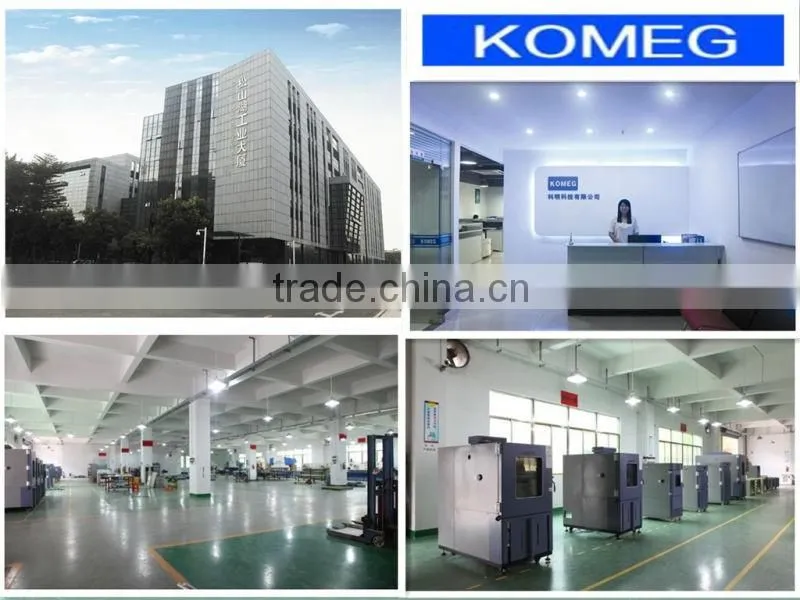

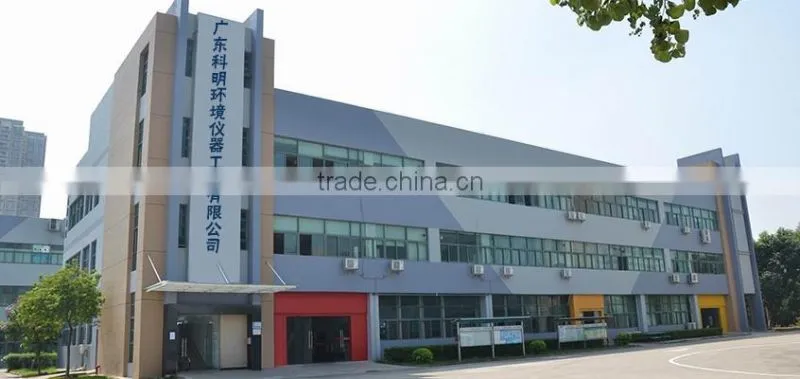

Komeg has been the brand of Komeg Technology Industrial since 1990. We manufacture environmental simulation test equipment for quality-conscious customers. Our factory is located in Dongguan, covering an area of 5,000 square meters, with over 52 employees including 26 R&D engineers.
Welcome to visit
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. and Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Vibration Testing Machine
