Help CenterFloorstanding Temperature Controller Climatic Test Chamber for Electronics Parts Testing
Related Products
-
Leading Provider Small Climate Cabinet AC 380V 50Hz IN Metal / Plastic / RubberUS$ 6,000 - 15,000MOQ: 1 Set -
Newest and Most Innovative Temperature & Climatic Test Chambers Advanced Laboratory SolutionsUS$ 6,000 - 15,000MOQ: 1 Set
-
High Precision and Reliability Constant Climate ChamberUS$ 6,000 - 15,000MOQ: 1 Set
-
Military Quality Compact Environmental & Vibration Testing EquipmentUS$ 6,000 - 15,000MOQ: 1 Set
-
Simulate Real Climate Temperature Chambers With Germany CompressorUS$ 6,000 - 15,000MOQ: 1 Set
1. KOMEG Temperature Humidity Test Chamber Controller Features:
Using company owned brand KOMEG KM-5166 LCD touch screen controller with PID control parameters setting
Flexible approach for data collection and recording
Temperature and humidity settings (SV) Practical (PV) value can be displayed directly,
Execution of the program can display numbers, paragraphs, remaining time and cycles, running time display,
Program editing and graphic curve display,
Fixed or program operation status display,
10-inch TFT display screen.
2. High temperature limits of test chambers
There are many types of test chambers, but they all high and low temperature limits. Let's take a look at the typical high temperatures thresholds and why they exist.
Test chambers usually have wire heaters made of a material called Nichrome. By placing successive loops of heater wire, a greater amount of heat that is generated. The result looks a lot like the inside of a toaster. Fans circulate the air past the heaters, so the samples in the chamber are not exposed to radiant heat. It is very easy to add heaters and increase the speed and / or high limit of a chamber.
KOMEG chambers typically have a high temperature limits under 200°C. Here is a break-down of why a chamber's high temperature limit exists:
3. Standard Met and Implemented:
GB/Bb T2423.2-89 high temperature test method
GB2423.1-89 test A: low temperature test method
GJB150.4-1986 test at low temperature
IEC60068-2-1 low temperature test method
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature
MIL - STD - 202G - 103B humidity test
IEC60068-2-30 humidity temperature cycle
GB/T2423.3 constant humidity heat test method
4. Temperature Humidity Test Chamber Parameter Specifications:
The specifications is measured in the environment of + 25 ℃, temperature and humidity performance measurement comply with related regulation of IEC60068-3 standard; Sensors placed in the air outlet.
| Model | KMH-150L | ||||
| 150L chamber volume | |||||
| Temp. range | -40°C ~150°C | ||||
| Display resolution | 0.1°C | ||||
| Temperature stability | High±0.5°C ,low ±1.0°C | ||||
| Temperature uniformity | ±2.0°C | ||||
| Heat up time | -40°C ~+100°C,within 45 min | ||||
| Pull down time | +20°C ~-40°C,within 60 min | ||||
| Interior Dimension(mm) | W 600 x H 600 x D 460mm | ||||
| Exterior Dimension(mm) | W 880 x H 1730 x D 1400mm | ||||
| Interior material | Stainless Steel Plate ( SUS 304) | ||||
| Exterior material | Baked Painting Steel Or Stainless steel ( SUS304) | ||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
| Total power | 7KW(heater 3KW included) | ||||
| Max current | 13.6A | ||||
| Ambient Temp. | +5°C ~+35°C | ||||
| Power Supply | AC 380V±10% 50Hz ,3 phase 4 wires +Ground Wires | ||||
| Weight | 420KG | ||||
| Sight window size | 370 X 450mm | ||||
| Sample holder | 2 pcs | ||||
| Fittings | cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m | ||||
| Safety device (standard) |
No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect |
||||
| Control System | Balanced Temperature & Humidity Control (BTHC)System | ||||
| Refrigeration system | Air Cooled (Water Cooled is option) | ||||

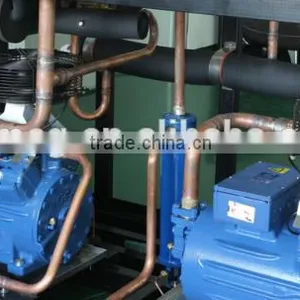

| Hermetic compressor | |||||
|
Single stage refrigeration system, CFC-Free refrigerant(HFC-507/HFC-23) | |||||
| Controller | 7-inch LCD Touch Screen panel | ||||
| Operation model :Program or fix point running | |||||
| Memory capacity :120programs,1200steps, | |||||
| All repeat 999 cycles, part repeat 99 cycles | |||||
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |||||
5. Advantages --- Why KOMEG IS Your Right Choice?
Benefits more than you can get from other supplier.
1 Delicate touch and excellent user experience
2. Large glass window design, viewing angle in all directions, hollow electric plating film and anti-condensation design; built-in LED lights to facilitate the test sample state of real-time observation in the course of testing; double door design, the inner big glass door with hand-in holes for the convenient operating.
3. Material quality of inner box is SUS304 # mounted stainless steel imported, and outer box is steel plate and the paint process applies automobile coating technology. Box body is processed shape using Triumph processing machine, its shape is nice and neat.
4. Large-size Full Color LCD touchscreen displayer, simple operation, easy to edit programs. PID with automatic calculation function; self-diagnostic function, show failure message and failure shot solutions step by step.
5. An RS-232 and RS-485 communication interface, matching recorder, strong expandability. We also support remote control by PC via wifi or wire (recommended).
1. Dedicate touch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
6. One year warranties
7. Japan imported UP-10D Seamless Welding Machine, especially for copper pipe welding
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Komeg has been the brand of Komeg Technology Industrial since 1990. We manufacture environmental simulation test equipment for quality-conscious customers. Our factory is located in Dongguan, covering an area of 5,000 square meters, with over 52 employees including 26 R&D engineers.
Welcome to visit
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. and Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Two wing Drop Tester
Vibration Testing Machine
