Home > Electrical & Electronics > Switch > Push Button Switch > ac Electronic on off Switch,12mm IP65 Micro Push Button Switch no Latching/momentary

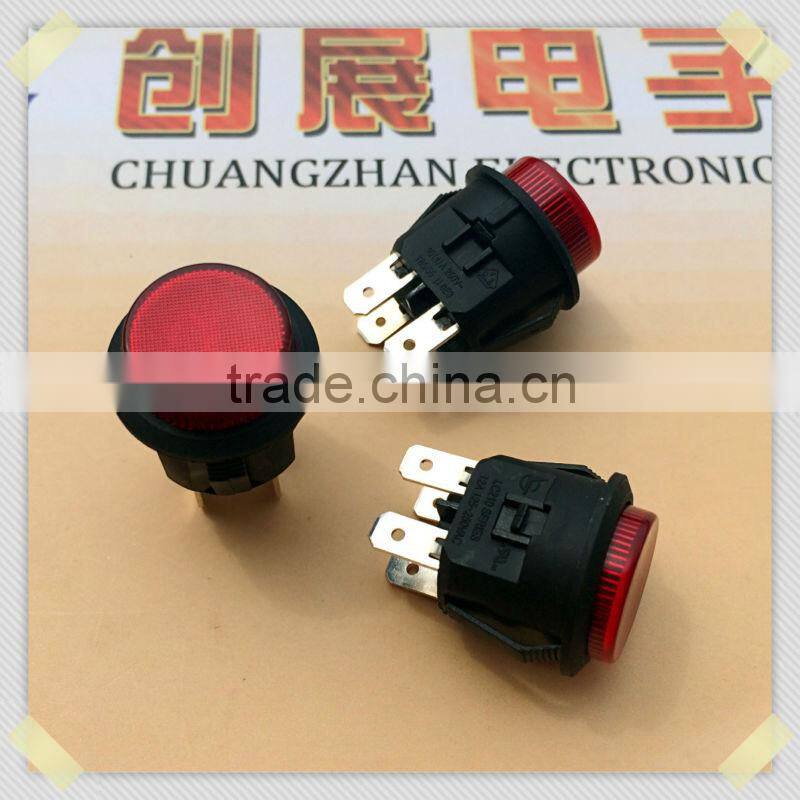

ac Electronic on off Switch,12mm IP65 Micro Push Button Switch no Latching/momentary

ac Electronic on off Switch,12mm IP65 Micro Push Button Switch no Latching/momentary thumbnail-1
ac Electronic on off Switch,12mm IP65 Micro Push Button Switch no Latching/momentary thumbnail-2
ac Electronic on off Switch,12mm IP65 Micro Push Button Switch no Latching/momentary thumbnail-3
ac Electronic on off Switch,12mm IP65 Micro Push Button Switch no Latching/momentary thumbnail-4
ac Electronic on off Switch,12mm IP65 Micro Push Button Switch no Latching/momentary thumbnail-5
ac Electronic on off Switch,12mm IP65 Micro Push Button Switch no Latching/momentary thumbnail-6
ac Electronic on off Switch,12mm IP65 Micro Push Button Switch no Latching/momentary photo-1

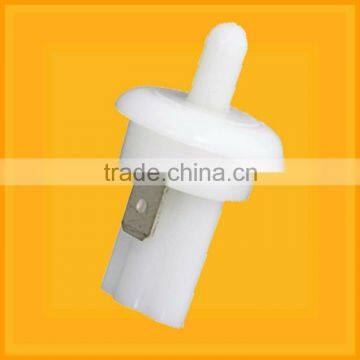

ac Electronic on off Switch,12mm IP65 Micro Push Button Switch no Latching/momentary photo-2

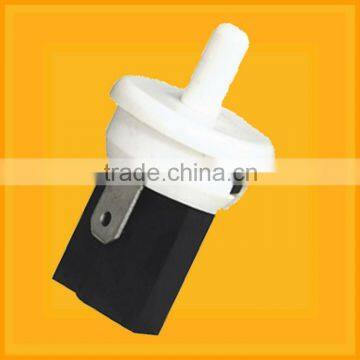

ac Electronic on off Switch,12mm IP65 Micro Push Button Switch no Latching/momentary photo-3

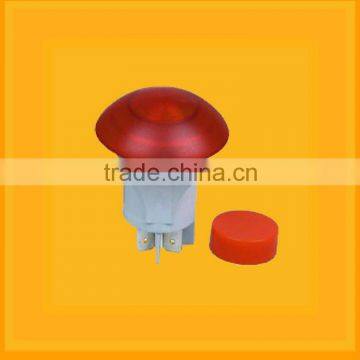

ac Electronic on off Switch,12mm IP65 Micro Push Button Switch no Latching/momentary photo-4

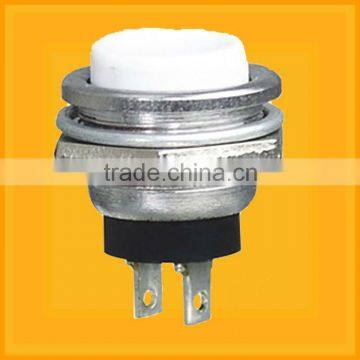

ac Electronic on off Switch,12mm IP65 Micro Push Button Switch no Latching/momentary photo-5

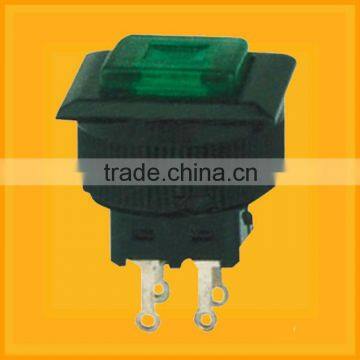

ac Electronic on off Switch,12mm IP65 Micro Push Button Switch no Latching/momentary photo-6
US$ 0.3 - 0.5 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CHZJCZ
Model Number:
LC-210
Contact Supplier Request Quote Chat Now
Yueqing Chuangzhan Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name CHZJCZ
Model Number LC-210
Protection Level IP44
Max. Current 1 A
Max. Voltage 250V







Product Description

ac electronic on off switch Details:



Technical Data for Push Button Switch:



Electrical rating

UL:12A125V/250VAC

ENEC/VDE:10(4)A250VAC

Actuating force

5~8N(dependent on different switch functions)





Mechanical life endurance

3x104 cycles

Flammability

UL94V-2



Electrical life endurance

1x104  cycles

Material of housing

PA66



Contact resistance

<20mΩ (initial)

Material of rocker

PC / PA66



Insulation resistance

>1000MΩ (500V DC between open contacts)

Contacts

Silver alloy



Dielectric strength

>1500V / minutes

Terminal

Brass Silver Plated



Ambient temperature

-10°C~+85°C

Temperature rise at the terminal

Max 30°C(UL1054)



Storage temperature

-10°C~+85°C

Solder ability of terminal

Max 350°C, 3s (no pressure may be Placed on the terminals when soldering by hand)







Atmospheric humidity

Max.85%

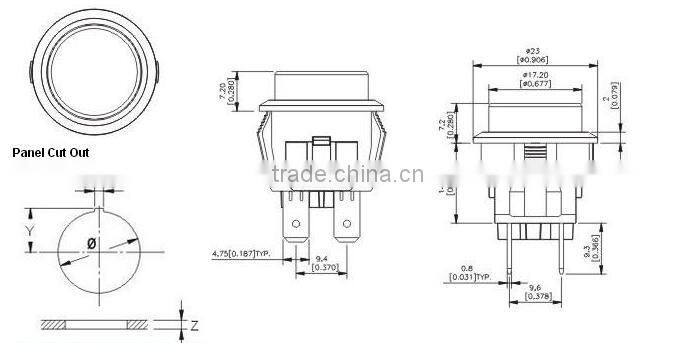

Drawing of this switch:

ac electronic on off switch,12mm IP65 micro push button switch no latching/momentaryac electronic on off switch,12mm IP65 micro push button switch no latching/momentary

...
