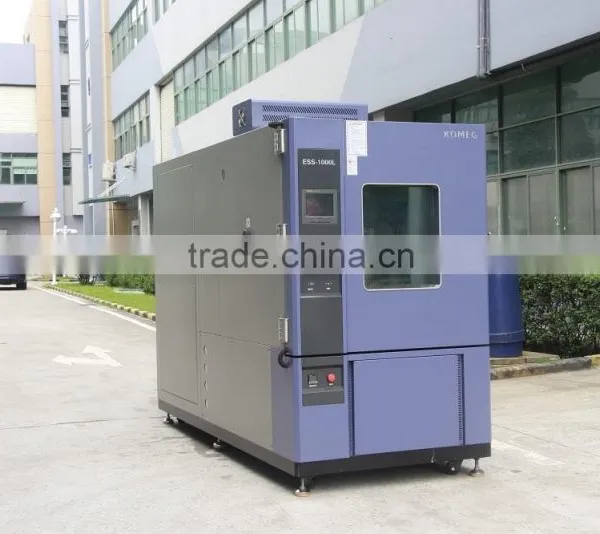

Professional Ess Rapid temperature change tester with Water Cooled
Environmental stress screening (ESS) is also known as Burn-in, AST (Accelerated Stress Testing), HALT (Highly Accelerated Stress Test), or HASS (Highly Accelerated Stress Screening). No matter what the name is, the idea is the same: create a test program that allows you to eliminate the infant mortality of your products.
KOMEG Environmental Stress Screening (ESS) Systems are specially designed to meet a range of ESS testing applications. ESS Systems consist of a test chamber, controller, product fixture, interconnect and wiring, and a functional tester.
Developed to help electronics manufacturers detect product defects and production flaws, Environmental Stress Screening forces infancy product failures that would otherwise occur after final assembly and product delivery. ESS Chambers’ goal is to improve profitability by eliminating defective products. ESS Systems can meet individual performance needs, product loading, and throughput requirements. KOMEG Technology has the experience to provide the best solution for ESS testing at your company.
Industrial Application
Automotive
Board Level
Chassis Level
Computer Technology
Consumer Products
Full System Level Testing
Networking
Packaging Applications
Pharmaceutical
Power Supply
Servers
Sub-Assembly Components
Sub-Assembly Modules
| Specifications | |||||||
| Model | ESS-SL | ||||||
| 225SL5 | 225SL10 | 408SL5 | 408SL10 | 1000SL5 | 1000SL10 | 1000SL15 | |
| Working Chamber Volume(L) | 225 | 408 | 1000 | ||||
| Temp Rate of Change( ℃/Min) | 5 | 10 | 5 | 10 | 5 | 10 | 15 |
| Performance | -70℃~+100℃ | ||||||
| Rapid Temp Change -55℃~+85℃ Full Linear Control | |||||||
| Humidity Constancy | ±0.5℃ | ||||||
| Temp Constancy | ±3.0℃ | ||||||
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated ) Stainless Steel | ||||||
| Interior Material | Stainless Steel Plate(SUS 304) | ||||||
| Insulation Material | Rigid Polyurethane Foam | ||||||
| Safety Devices | over pressure,over heat and over current protection for compressor,over temp. protection, | ||||||
| Compressor | Semi-Hermetic Compressor | ||||||
| Cooling Mode | Water Cooled | ||||||
| Control system | Balanced Temperature & Humidity Control System(BTC type) | ||||||
| Heater | Iron-chrome wire heater | ||||||
| Blower | Centrifugal Blower | ||||||
| Observation Window | Glass incorporating heat generator | ||||||
| Temp Sensor | Pt-100 | ||||||
| Controller | Touch screen programmable controller | ||||||
| Ambient Temp. | +5℃~+35℃ | ||||||
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire | ||||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |||||||
Structure:
Overall structure, new test chamber designed very easy to operation and maintenance:
Water and electricity system separation design;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Material:
TRUMPF machines for sheet metal processing;
Tecumseh, Bock Compressor;
High quality electronic components (e.g. DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Standard Water cooled systems
Copper tubing cooling coils with aluminum fins;
Solder-in-place components minimize leakage;
High temperature silphosed or silver soldered joints
Stainless steel drip pans in both compressor and cascade compartments contain condensate;
HFC refrigerants;
Electrical Features
Nichrome wire heating elements;
Fail safe fusible link high heat limit protection;
Door interlocks to prevent test interruption;
Air Flow Systems Features
Externally mounted fan motors;
Jackshaft assemblies on all systems to provide maximum reliability and flexibility;
Aluminum backwards-inclined blower wheels;
Vertical or horizontal air flow systems;
High velocity air provides optimum air flow across your product;
Standards Implemented and met
GB10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
Machine Parts
Name: Bock Compressor
Brand: Bock
Original: Germany
Compressor rack, high efficiency low energy consumption, low noise;
Electronic components
Name: Electric cabinet
Brand: Schneider, DANFOSS, Omron, Panasonic
Original: Germany, France, Japan
Top brand electronics, with full range of protection include overheat of blower fan motor, earth leakage protection, load short circuit protection, over temperature protection, over pressure protection and so on.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Visiting our factory is highly welcomed.
After-Sales Service
* If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Being a first-class supplier and reliable partner, we are certified to ISO 9001 and got CE approval for all our products. All equipment are 7 x 24 hours tested before delivery. That explains why Komeg is the private brand of choice for many well-known brand enterprises, and also one of the very few designated suppliers who were recognized by many top 500 enterprises. Let Komeg's 26 years of professional experience work for you too.
1. Dedicatetouch and excellent user experience
2. Unique and compact design, top grade appearance, stable performance and easy operation
3. Can simulate a wide rang of temperature and humidity environments
4. Capable of testing large components, assemblies, and finished products
5. Customized sizes and configurations available
6. One year warranties
