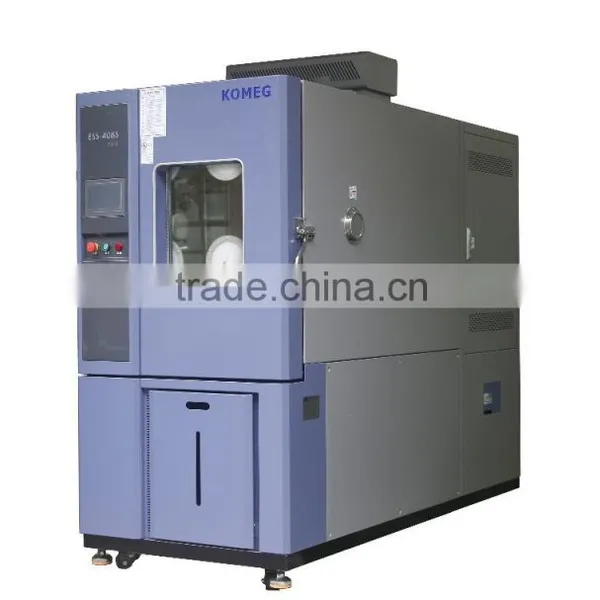

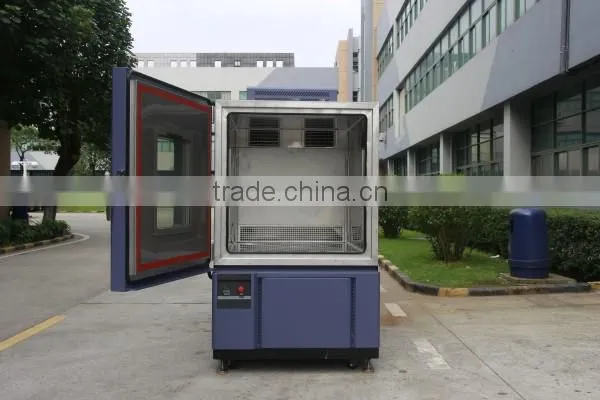

Rapid, precise and energy-saving rapid Environmental Climatic ESS Chamber
Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spare parts, particularly applies to environmental stress screening test (ESS)
Environmental stress screening (ESS) refers to the process of exposing a newly manufactured or repaired product or component (typically electronic) to stresses such as thermal cycling and vibration in order to force latent defects to manifest themselves by permanent or catastrophic failure during the screening process. The surviving population, upon completion of screening, can be assumed to have a higher reliability than a similar unscreened population.
ESS can be performed as part of the manufacturing process or it can be used in new product qualification testing.
| Specifications | temperature thermal cycling testing chamber manufacturer | ||||||
| Model | ESS-SL | ||||||
| 225SL5 | 225SL10 | 408SL5 | 408SL10 | 1000SL5 | 1000SL10 | 1000SL15 | |
| Working Chamber Volume(L) | 225 | 408 | 1000 | ||||
| Temp Rate of Change( ℃/Min) | 5 | 10 | 5 | 10 | 5 | 10 | 15 |
| Performance | -70℃~+100℃ | ||||||
| Rapid Temp Change -55℃~+85℃ Full Linear Control | |||||||
| Humidity Constancy | ±0.5℃ | ||||||
| Temp Constancy | ±3.0℃ | ||||||
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated ) Stainless Steel | ||||||
| Interior Material | Stainless Steel Plate(SUS 304) | ||||||
| Insulation Material | Rigid Polyurethane Foam | ||||||
| Safety Devices | over pressure,over heat and over current protection for compressor,over temp. protection, | ||||||
| Compressor | Semi-Hermetic Compressor | ||||||
| Cooling Mode | Water Cooled | ||||||
| Control system | Balanced Temperature & Humidity Control System(BTC type) | ||||||
| Heater | Iron-chrome wire heater | ||||||
| Blower | Centrifugal Blower | ||||||
| Observation Window | Glass incorporating heat generator | ||||||
| Temp Sensor | Pt-100 | ||||||
| Controller | Touch screen programmable controller | ||||||
| Ambient Temp. | +5℃~+35℃ | ||||||
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire | ||||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |||||||
Standard Water cooled systems
Copper tubing cooling coils with aluminum fins;
Solder-in-place components minimize leakage;
High temperature silphosed or silver soldered joints
Stainless steel drip pans in both compressor and cascade compartments contain condensate;
HFC refrigerants;
Electrical Features
Nichrome wire heating elements;
Fail safe fusible link high heat limit protection;
Door interlocks to prevent test interruption;
Air Flow Systems Features
Externally mounted fan motors;
Jackshaft assemblies on all systems to provide maximum reliability and flexibility;
Aluminum backwards-inclined blower wheels;
Vertical or horizontal air flow systems;
High velocity air provides optimum air flow across your product;
Standards Implemented and met
GB10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
We use PP Film wrapping the test chamber to protect the test chamber from moisture or being scratched first, then use strong plywood case for easyload and transport, and to keep the chambers from potential crash or impact.
Why Choose KOMEG?

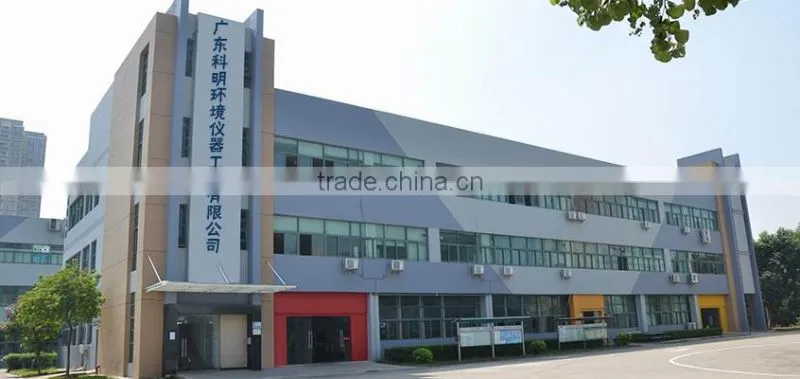

Company information:
Being a first-class supplier and reliable partner, we are certified to ISO 9001 and got CE approval for all our products. All equipment are 7 x 24 hours tested before delivery. That explains why Komeg is the private brand of choice for many well-known brand enterprises, and also one of the very few designated suppliers who were recognized by many top 500 enterprises. Let Komeg's 26 years of professional experience work for you too.
Better Idea, Design and Quality
We strive for continuous innovation, releasing no less than five new designs each year. Our strong R&D team and skilled workers is the key to our success. No matter it is standard or custom-made project, we have rich experience in handling such so that customers worldwide can benefit more when working with us. And to ensure your specific test standards are met, the key components and parts we are using are imported famous brands. That's why SGS, Konica Minolta, Senko, Midea, TCL and Huawei are among our long-term clients.
Establish a cultural KOMEG, Build a century brand.
Quality conscious enterprise for quality conscious people.
We'd rather explain for the price than apologize for the Quality life long
Experienced and skilled staff;
High precision & reliability performance;
Prompt after-sale service;
Persist on the philosophy all the time
Besides this, we have a lot of other chamber for your reference:
3-zone/ 2-zone Thermal Shock Chamber
Walk-in Constant Temp. And Humidity Chamber
Rapid Temp. Change Chamber
Precise Drying Test Chamber
Temperature/ humidity/ vibration three integrated Chamber
Precise Drying Chamber
Vacuum oven/ no oxidation oven
Air Exchange Type Aging Oven
Burn-in Room
Salt spray Chamber
Vibration Testing Machine( mechanical and electromagnetic)
