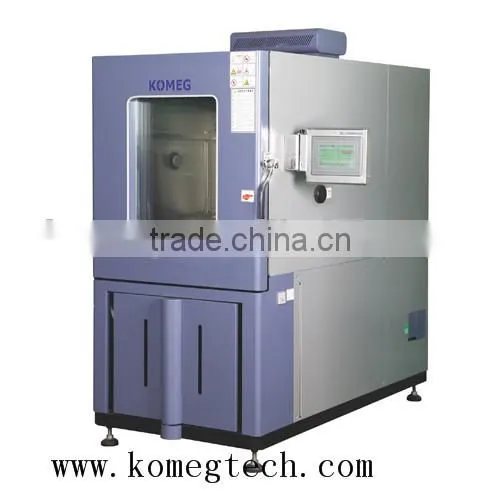

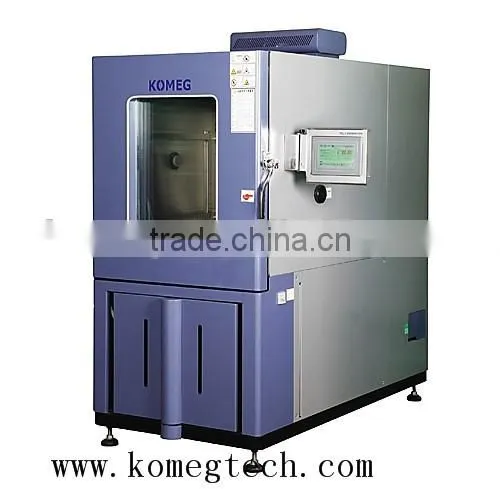

programmable high and low high and low temperature and humidity change test chamber for filter
Environmental Test Chamber for Rapid Temperature Changes / ESS Chamber is applied to find hidden mechanical weaknesses in electronic components when test specimens are exposed to rapid temperature change conditions
| Specifications | ESS Papid temperature change chamber for Lab test | ||||||
| Model | ESS-SL | ||||||
| 225SL5 | 225SL10 | 408SL5 | 408SL10 | 1000SL5 | 1000SL10 | 1000SL15 | |
| Working Chamber Volume(L) | 225 | 408 | 1000 | ||||
| Temp Rate of Change( ℃/Min) | 5 | 10 | 5 | 10 | 5 | 10 | 15 |
| Performance | -70℃~+100℃ | ||||||
| Rapid Temp Change -55℃~+85℃ Full Linear Control | |||||||
| Humidity Constancy | ±0.5℃ | ||||||
| Temp Constancy | ±3.0℃ | ||||||
| Exterior Material | Cold-rolled steel sheet (Rust proof & Plastic Spray treated ) Stainless Steel | ||||||
| Interior Material | Stainless Steel Plate(SUS 304) | ||||||
| Insulation Material | Rigid Polyurethane Foam | ||||||
| Safety Devices | over pressure,over heat and over current protection for compressor,over temp. protection, | ||||||
| Compressor | Semi-Hermetic Compressor | ||||||
| Cooling Mode | Water Cooled | ||||||
| Control system | Balanced Temperature & Humidity Control System(BTC type) | ||||||
| Heater | Iron-chrome wire heater | ||||||
| Blower | Centrifugal Blower | ||||||
| Observation Window | Glass incorporating heat generator | ||||||
| Temp Sensor | Pt-100 | ||||||
| Controller | Touch screen programmable controller | ||||||
| Ambient Temp. | +5℃~+35℃ | ||||||
| Power | AC 380V/50Hz 3phase 5 wires+ Ground wire | ||||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |||||||
Rational Construction and fast cooling rate
Frequency conversion control of wind speed.
Adopts international brand of imported parts for cooling system to improve operation reliability
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
1. Rapid Temperature Change Test Chamber Manufacturing standard :
GB/T10586-2006 Specifications for damp heat chambers
GB/T10592-1989 Specification for low/high temperature test chambers
2. Rapid Temperature Change Test Chamber Inspection Standard :
GB/T5170.2-1996 Inspection methods for basic parameters of environmental testing equipments for electric and electronic products. Temperature testing equipments;
GB/T5170.5-1996 Inspection on methods for basic parameters of environmental testing equipments for electric and electronic products--Damp heat testing equipments
3. Rapid Temperature Change Test Chamber Testing Standard Compliance :
GB/T5170.2-2008 Inspection methods for environmental testing equipments for electric and electronic products-Temperature testing equipments
GB/T2423.1-2008(IEC60068-2-1:2007)Environmental testing - Part 2: Test methods - Tests A: Cold
GB/T2423.2-2008(IEC60068-2-2:2007)Environmental testing for electric and electronic products Test methods - Tests B:Dry Heat
GB/T2423.22 Environmental testing for electric and electronic products-Part 2:Test methods-Test N:Change of temperature
IEC 60068-2-14 2009 Environmental testing -- Part 2-14: Tests -- Test N: Change of temperature
GB/T5170.2-2008 Inspection methods for environmental testing equipments for electric and electronic products-Temperature testing equipments
3. Rapid Temperature Change Test Chamber Applications
This equipment is widely applied for electronic and electric products, components and materials by constant high low temperature, temperature change , rapid rate temperature change ,damp heat etc environmental simulation reliability test .
Machine Parts
Name: Bock Compressor
Brand: Bock
Original: Germany
Compressor rack, high efficiency low energy consumption, low noise;
Electronic components
Name: Electric cabinet
Brand: Schneider, DANFOSS, Omron, Panasonic
Original: Germany, France, Japan
Top brand electronics, with full range of protection include overheat of blower fan motor, earth leakage protection, load short circuit protection, over temperature protection, over pressure protection and so on.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Visiting our factory is highly welcomed.
After-Sales Service
* We will train you how to install, use and maintain the machine.
* If needed, we will arrange our engineer to assemble the machine for you.
