CBB65 series AC motor run capacitor
Features:
The capacitor takes heavy-edge metallized. AI/Zn PP film as dielectre.
The elecents are tight winded by velocity winders and camed in aluminum cases.
Refined castor oil is adopted as impregnation agent in which the capactior are soaked in vacuum
and high temperature condition,
Meanwhile the second generation of mechanical anti-explosion design is selected as blast proof secure measure for our capacitors. The reliability is more afirmativel ebgabced.
Applications:
Broadly applied to starting and running of singlephase AC motors at 50Hz(60Hz) frequency for air conditioners and high power illuminators for the sake of power factor compensation.
Technical Specifications:
| Standard | GB3667-1997, same as IEC60252;1993 |
| Climate type | 40/70/21, 40/85/21 |
| Insulation resistence | ≥3000s |
| Capacitance tolerance | ± 5% |
| Dielectric dissipation factor | tg& ≤ 0.002(50HZ~100HZ) |
| Safety standard | P1 |
| Life expectancy | 3000h(Class C) Or 10000h(Class B) |
Application requirements:
Alititude: No more than 2000m
Residual voltage in application: less than 10% of rated voltage
Allowed maximum voltage: less than 1.1times of rated voltage
Permissible maximum current: less than 1.3times of rated current.
Pictures for reference:

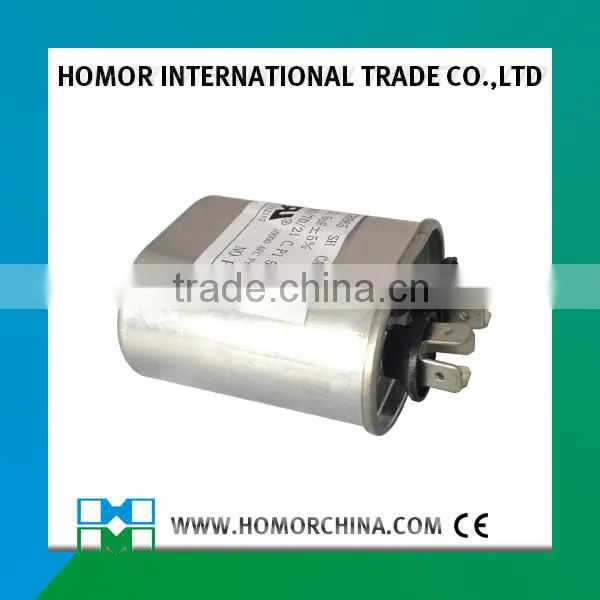

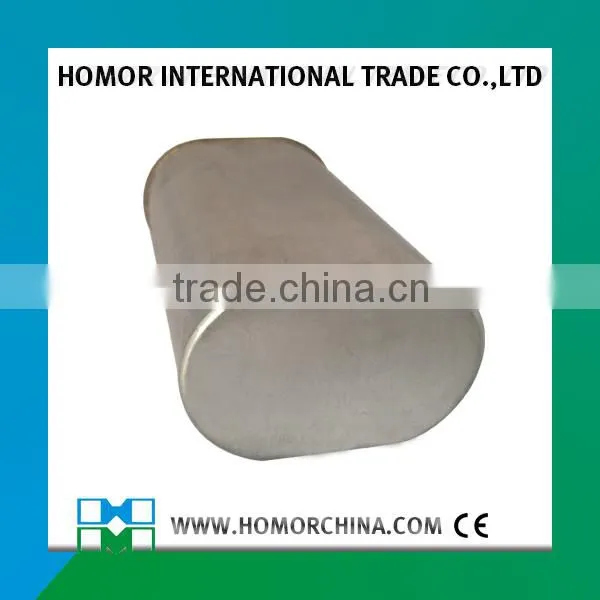

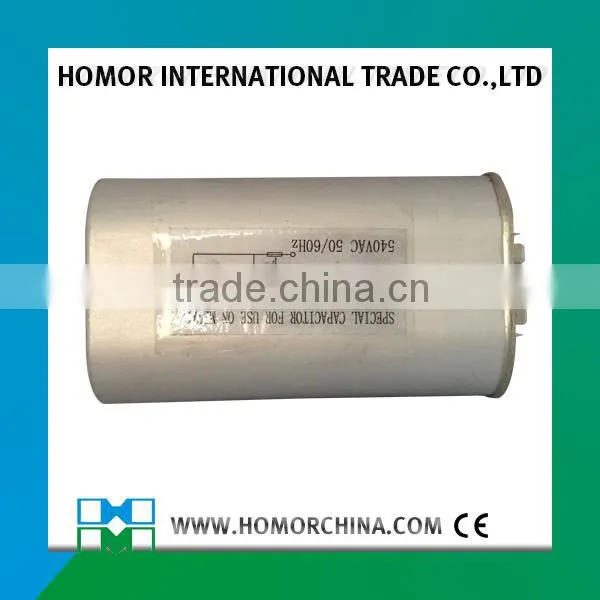

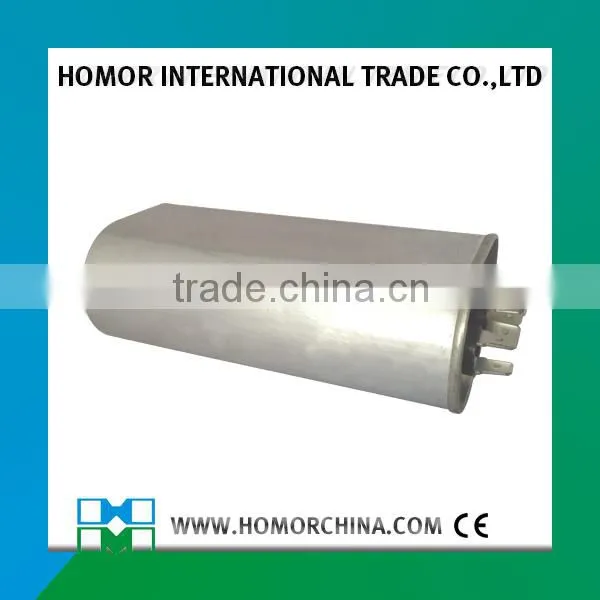

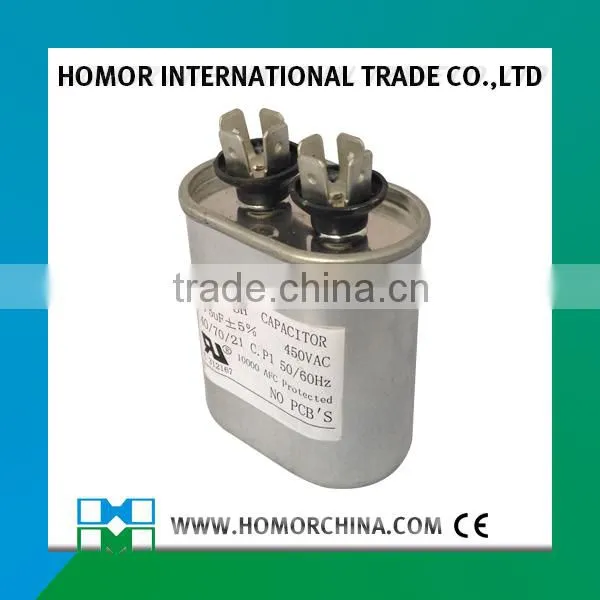

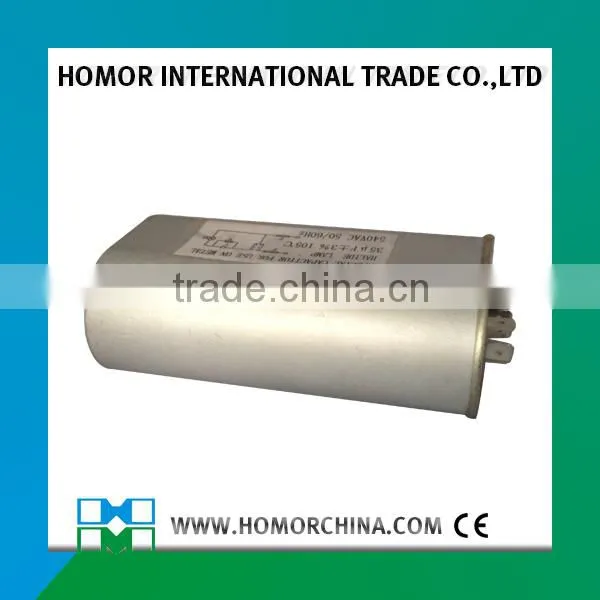

The main images of CBB65 capacitor:
2 Types of CBB65 images:
Packaging and Shipping:
| MOQ | 500PCS |
| Packing details | Standard Packing Cartons |
| Delivery Time | 10-25days after receipt the payment |
| Payment Term | T/T or L/C at sight |
| Supply Ability | 100000pcs per month |
Factory images:
Our series
Customer logo:Acceptable
Changing on material :color ,shape,construction:Acceptable
General inspection on fixing before packing
Third party inspection:Acceptable
Quality Control:
All product must go through five checks before manufacturcing process
Revelant material check before production
Full check after every individual process finshed
Full check after production half-done
Sprots check after production packed before shipping
Guarantee:
Cuatomer's interestes can be full quaranteed
Every defective product or quality problem(besides the damage during transporation can be replace in the next order)
Any defective product or quality problem which cause customer's losses can be compensated in their next order.
