Product Details
| Place of Origin | Zhejiang, China | Brand Name | Homor | |
| Model Number | CBB60 | Type | Polypropylene Film Capacitor | |
| Application | AC / Motor | Package Type | Through Hole | |
| Capacitance | 3uf | Rated Voltage | 400V/500V | |
| Operating Temperature | 40/70/21 |
Product Description

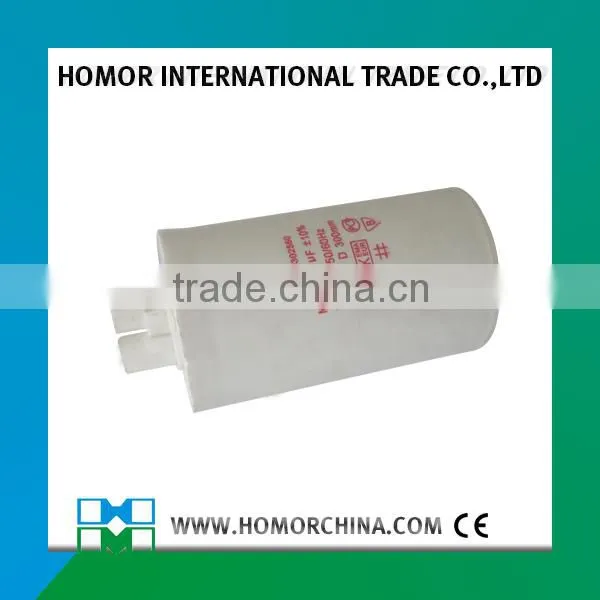

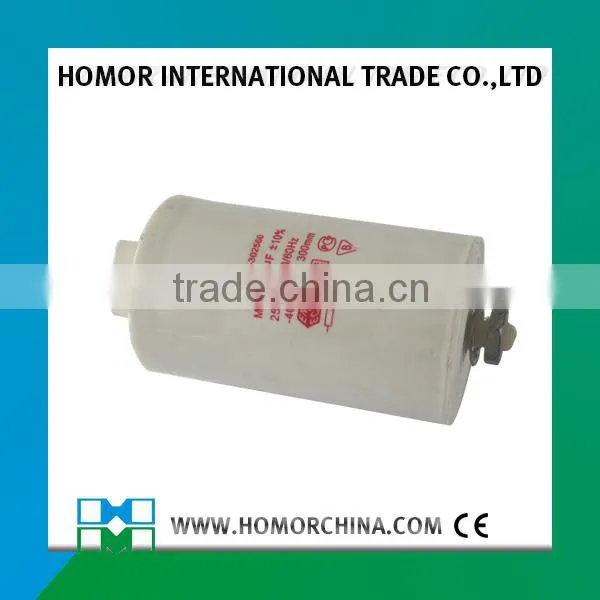

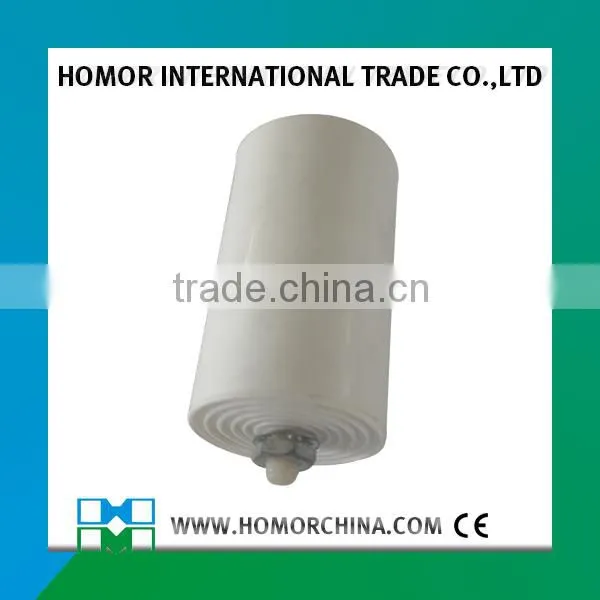

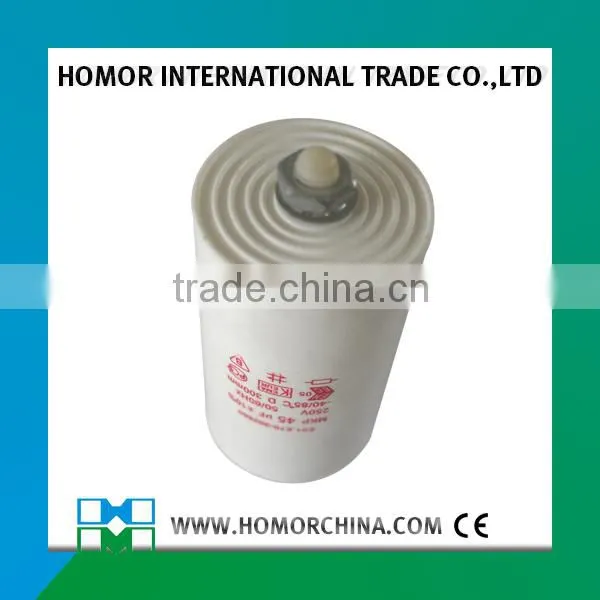

CBB60 series AC motor capacitor
General description:
Broadly applied to running of single-phase AC motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators ete.
Features:
The capacitor takes heavy-edge metallized. AI/Zn PP film or web-like fuse metallized PP film as dielectrie,
Its components are assembled in flame-retardant ABS or PBT square crust, impregnated with flame-retatdant epoxy resin.
It has high reliablity and stability.
Technical parameter:
| Standard | GB3667-1997, same as IEC60252;1993 |
| Climate type | 40/70/21, 40/85/21 |
| Insulation resistence | ≥3000s |
| Capacitance tolerance | ± 5% |
| Dielectric dissipation factor | tg& ≤ 0.002(50HZ~100HZ) |
| Safety standard | P1 |
| Life expectancy | 3000h(Class C) Or 10000h(Class B) |
Service condition:
Alititude: No more than 2000m
Residual voltage in application: less than 10% of rated voltage
Allowed maximum voltage: less than 1.1times of rated voltage
Permissible maximum current: less than 1.3times of rated current.
| MOQ | 500PCS |
| Packing details | Standard Packing Cartons |
| Delivery Time | 10-25days after receipt the payment |
| Payment Term | T/T or L/C at sight |
| Supply Ability | 100000pcs per month |
Our series
Customer logo:Acceptable
Changing on material :color ,shape,construction:Acceptable
General inspection on fixing before packing
Third party inspection:Acceptable
Quality Control:
All product must go through five checks before manufacturcing process
Revelant material check before production
Full check after every individual process finshed
Full check after production half-done
Sprots check after production packed before shipping
Guarantee:
Cuatomer's interestes can be full quaranteed
Every defective product or quality problem(besides the damage during transporation can be replace in the next order)
Any defective product or quality problem which cause customer's losses can be compensated in their next order.
