GT-A Dry-type Laminating MachineIt is ideal Laminating Machine .

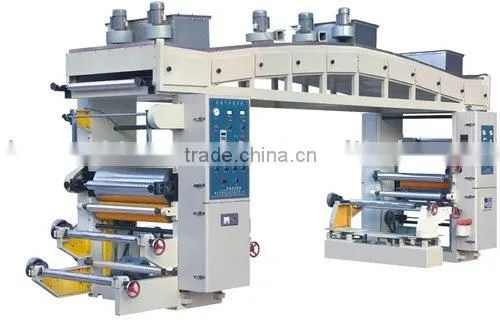

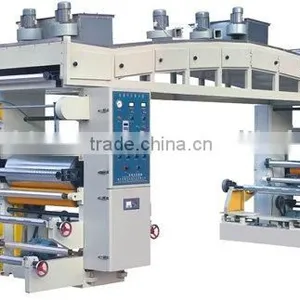

GT-A Dry-type Laminating Machine
Application:
This machine is suitable for laminating plastic-plastic, paper-plastic, paper-paper and aluminum foils and other laminated materials in the packing industry.
Performance and Features:
1.The glue coating and laminating motor adopts imported double variable frequency synchronous speed regulating to change the past shaft driving structure.
2.Smooth material feeding and synchronous linear speed.
3.The bridge-type three-segment drying tunnel heating increases temperature and the drying system makes laminating speed even higher.
4.Gluing and laminating adopt pneumatic pressing rollers and imported pneumatic components.
5.The two kinds of doctor blade type and pressing-type gluing ways can be chosen at will according to different processes.
6 Unwinding and Rewinding adopts power tension control.
7.The interlocking and subsection temperature control temperature at the best state.
8.First unwinding adopt automatic EPC system.
9. Second unwinding adopt duplex turret.
Main technical variables:
Type |
GT-600A |
GT-800A |
GT-1000A |
Max. Laminating Width |
600mm |
800mm |
1000mm |
Max. Web Width |
620mm |
820mm |
1020mm |
Max. Laminating Speed |
80m/min |
80m/min |
80m/min |
Max. Mechanical Speed |
90 m/min |
90 m/min |
90 m/min |
Max. Diameter Of Material Roll |
500mm |
500mm |
500mm |
Internal Diameter of Roll Core |
76mm |
76mm |
76mm |
Length of Drying Channel |
7500mm |
7500mm |
7500mm |
Power for Drying Channel |
23.4mm |
31.2mm |
39mm |
Total Power |
37mm |
46.3mm |
56mm |
Weight Of Machine |
6000kg |
7000kg |
8000kg |
Over all Dimension |
L8300×W1600×H3000mm |
L8300×W1800×H3000mm |
L8300×W2000×H3000mm |
