Help CenterMotor Start Capacitor 10uf 10v
Related Products
1.FEATURES:

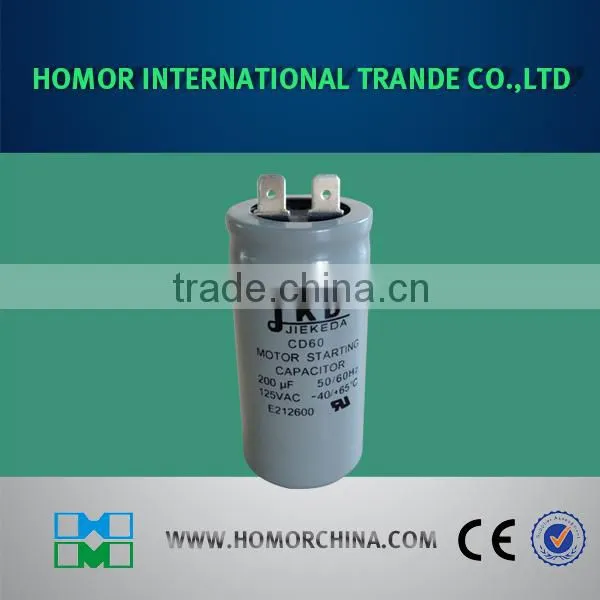

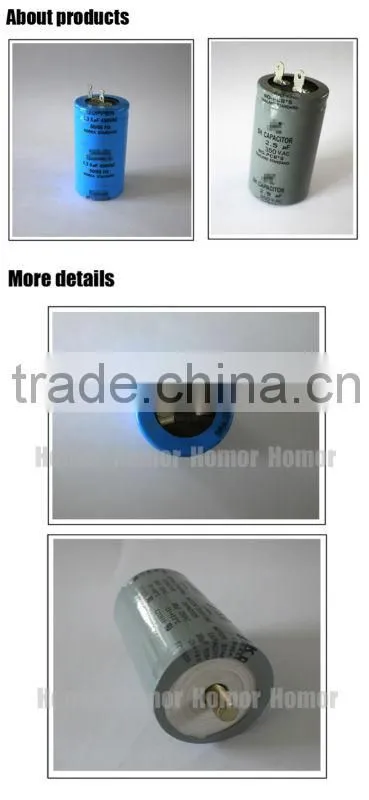

CD60B basic type is a renewed product researched and developed according to ANSI/EIA 463-A/B Standard. The case is founded and pressed with Bakelite and resin. The characters of product: good insulating, strong strength, not easy to damage, well sealed terminals solid, without leakage, being able to withstand large outside force each direction, beautiful appearance, easy to operate, long life-span, stable parameters, reliable quality. It applies to A.C. motors with frequency 60Hz(50Hz), rated voltage 110V-330V for starting. And other fields in science and technology.
2.TECHNICAL PARAMETER:
Working temperature range |
-25~+55°C |
Rated voltage range |
110~330VA |
Rated capacitance range |
21~1536μF |
Rated permissible tolerance of capacitance |
0~+20% |
Tangent of loss angle |
tg&≤0.10,tg&≤0.15 |
Enduring performance |
+55°C,110~165VAC,on 1 sec.off 59 sec,3000times +55°C,220~330VAC,on 1 sec.off 59 sec,15000times Changing rate of capacitance:±15% within original measuring value Tangent of loss angle:≤0.20 |
Withstand voltage between terminals |
applied 1.2 times working volatage,for 2 sec,without breakdown |
Withstand voltage between terminal and Case |
2000VAC,for 10 sec,without breakdown |
