High-density Rigid PU Foam Insulation temperature and climate test chambers for solar panel
1 Application:
Climatic chamber is also called climate chamber, is an enclosure used to test the effects of specified environmental conditions on industrial products, electronic devices and components, materials, and biological items.
Such a chamber can be used:
1) As a stand-alone test for environmental effects on test specimens
2) As preparation of test specimens for further physical tests or chemical tests
3) As environmental conditions for conducting testing of specimens
Large Observation Window Hnad-in Hole Temperature Humidity Test Chambers Technical Parameter:
| Model | KMH-800L | ||||
| 800L chamber volume | |||||
| Temp. range | -40°C ~150°C | ||||
| Display resolution | 0.1°C | ||||
| Temperature stability | High±0.5°C ,low ±1.0°C | ||||
| Temperature uniformity | ±2.0°C | ||||
| Heat up time | -40°C ~+100°C,within 45 min | ||||
| Pull down time | +20°C ~-40°C,within 60 min | ||||
| Humidity range | 20~98%R.H,(standard), '10~98%R.H,(with humidifier) | ||||
| Humidity constancy | ±2.5%R.H | ||||
| Humidity uniformity | ±3.0%R.H | ||||
| Interior Dimension(mm) | 1000W*1000H*800D | ||||
| Exterior Dimension(mm) | 1280W*2160H*1750D | ||||
| Interior material | Stainless Steel Plate(SUS 304) | ||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
| Total power | 14KW(heater 6KW included) | ||||
| Max current | 30.3A | ||||
| Water Consumption | 2.2L/hr | ||||
| Ambient Temp. | +5°C ~+35°C | ||||
| Power Supply | AC 380V±10% 50Hz ,3 phase 4 wires +Ground Wires | ||||
| Weight | 500KG | ||||
| Sight window size | 460*560mm | ||||
| Sample holder | 2 pcs | ||||
| Fittings | cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m | ||||
| Safety device (standard) | No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect | ||||
| Control System | Balanced Temperature & Humidity Control (BTHC)System | ||||
| Refrigeration system | Air Cooled (Water Cooled is option) | ||||
| Hermetic compressor | |||||
| Hermetic compressor Single stage refrigeration system, CFC-Free refrigerant(HFC-507/HFC-23) | |||||
| CFC-Free refrigerant(HFC-507/HFC-23) | |||||
| Controller | 7-inch LCD Touch Screen panel | ||||
| Operation model :Program or fix point running | |||||
| Memory capacity :120programs,1200steps, | |||||
| All repeat 999 cycles, part repeat 99 cycles | |||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |||||
2. Programmable Temperature Humidity Test Chambers Technical Detailes Features
1. Heat preservation material, we use high-intensity PU foam with flame retardant material and high density glass fiber cotton, which can assure high precise and better uniformity and avoid unnecessary energy loss. Meanwhile, our design can better assure personnel safety when operating a Walk-in Chamber.

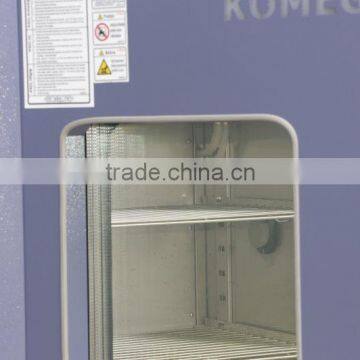

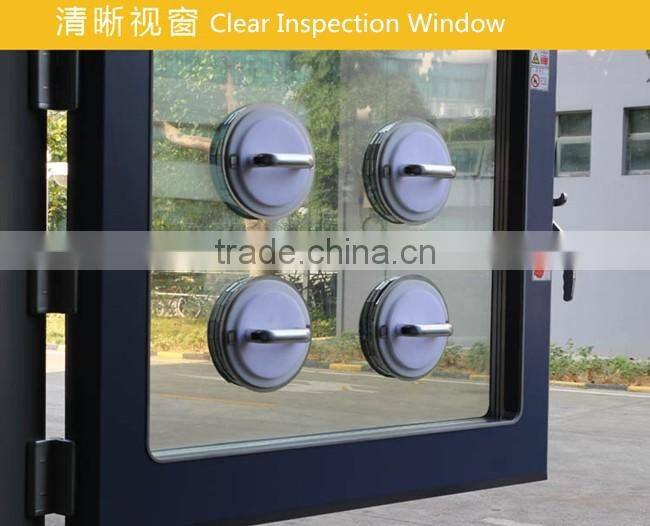

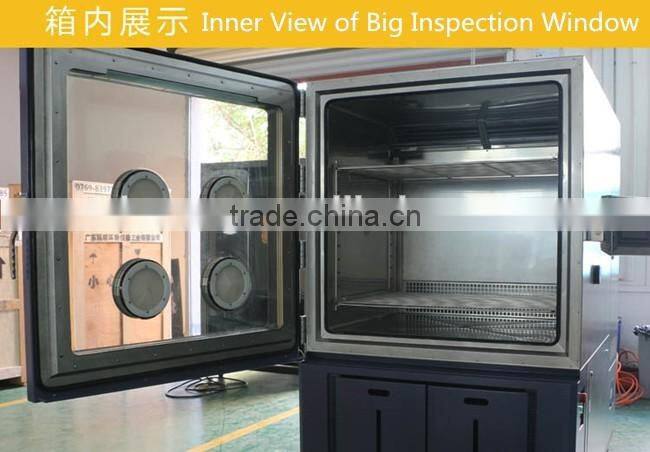

2. Large glass window design, viewing angle in all directions, hollow electric plating film and anti-condensation design; built-in LED lights to facilitate the test sample state of real-time observation in the course of testing; double door design, the inner big glass door with hand-in holes for the convenient operating.
3. Material quality of inner box is SUS304 # mounted stainless steel imported, and outer box is steel plate and the paint process applies automobile coating technology. Box body is processed shape using Triumpbend CNC machine, its shape is nice and neat.

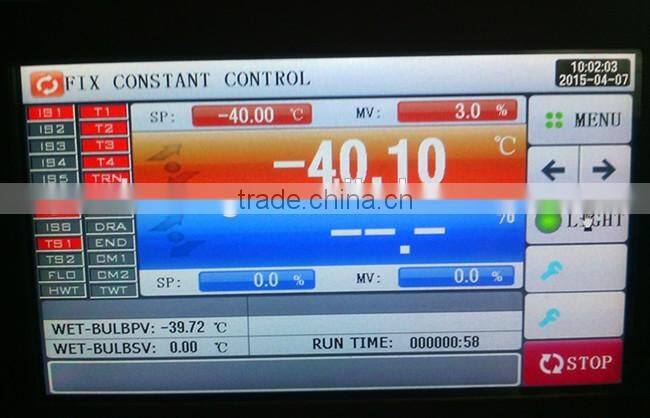

4. Large-size Full Color LCD touchscreen displayer, simple operation, easy to edit programs. PID with automatic calculation function; self-diagnostic function, show failure message and failure shot solutions step by step.
5. An RS-232 and RS-485 communication interface, matching recorder, strong expandability. We also support remote control by PC via wifi or wire (recommended).
6. With timing contact, and be able to cope with dynamic testing and measure test.
7. The system-wide multi-security protection, two steps password to ensure the chamber’s smooth running and power-cut memory. General running mode: programmable running, constant running and booking boot.
8. Freezer/Compressor imported by the French original armored warrior Tecumseh compressor or GEA, and use environmental-friendly refrigerant (R404a, R23).
Manufactured samples, specimens, or components are placed inside the chamber and subjected to one or more of these environmental parameters to determine reliability or measure after-effects such as corrosion. In the case of machinery such as internal combustion engines, byproducts such as emissions are monitored.
An environmental chamber can be a small room used both to condition test specimens and to conduct the test. It can be a smaller unit that's used for conditioning test items. Also, some chambers are small enough to be placed onto a universal testing machine or other test apparatus.
Many chambers are set at a certain set of conditions. Others can be programmed to cycle through specified sequences of conditions.
3 Design
As test requirements may be relatively simple or complex, environmental test chambers vary widely in size, ranging from small units designed for placement on bench tops to large walk-in chambers. Test chambers generally have viewports or video feeds to allow for visual inspection of the sample during the test. Reach-in chambers provide an opening that technicians may use to handle test samples. Chambers providing interior visual lighting must take into account the heat generated and compensate accordingly.
As with the wide variance in size, a number of user control options are available, ranging from simple analog indicators up to more modern digital readouts with LCD displays. Chambers may be computer programmable, and networked or Web-enabled test chambers are also available.[1]
4 Types of test chambers
1) Mechanically cooled test chambers
2) Liquid nitrogen cooled test chambers
3) Modular Walk-in Chambers
5 Test chamber standards
Several standards organizations provide standards and guidance on environmental test chamber construction, temperature control standards, and engineering tolerances.
Institute of Environmental Sciences and Technology
Air Conditioning, Heating and Refrigeration Institute (formerly the American Refrigerant Institute)
American Society of Heating, Refrigerating, and Air-Conditioning Engineers Air conditioning American Society of Heating, Refrigerating, and Air-Conditioning Engineers
ASTM International
Underwriters Laboratories
NSF International
Factory Mutual
Canadian Standards Association
International Organization for Standardization
6 About KOMEG:
As a professional manufacturer and the best brand climatic chamber in China, KOMEG specialized in Environmental testing equipment for quality conscious people since 1990. Our products are CE approved and we are the supplier for ,UL, and world top 500 companies.
7 What are KOMEG’s Customers?
Our customers are the most important people ever in KOMEG Company. Our customers are not dependent on us KOMEG; We KOMEG are dependent on them. Our customers are not an interruption of our work; there are the purposes of it. We are not doing our customers a favor by serving them, there are doing us a favor by giving us an opportunity to do so. Our customers are not an outsider to our business, there are parts of it. Our customers are not someone to argue with; nobody ever won an argument with a customer. Our customers are not people who bring us their wants; it is our job to fill them profitably to them and to ourselves.
