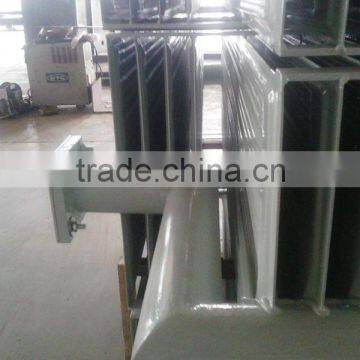

pressed steel gooseneck type radiator for power transformer usage

Specifications

PC (PG) type radiator for distribution transformer :
1.remove burrs
2.acid cleaning
3.painting or spraying
4.drying

  pressed steel  gooseneck type radiator  for power transformer usage



• About us---- Elolam Group :

Elolam Group,initiated and established by Shandong Elolam Electric Power Technology Company,is the short of Elolam Electric Group.

Elolam Group is in the business of designing, producing and selling of high magnetic oriented silicon steel,fold iron steel ,roll iron steel,cable ,transformer ,and switch.Eloam aims to provide all-round comprehensive supporting services for the  large power companies.





Eloalm Group successively established transformer manufacturing enterprises and

selling companies in the form of joint venture or cooperation in Africa,East, south

and west of Asia countries and regions .

Eloam Group therefore become a real multinational group enterprise in the power

transmission and transformation supporting industry.



                                         Elolam Group . Jiahua Electric Power Equipment Transformer Co.,ltd

• Panel radiator performance description:

1,Product application:

Panel radiator is exclusive cooling device,which is mainly used to large,medium size power equipments,such as power transformer, reactor and so on. It can be connected on the flange of above mentioned power equipments or independently installed the neighbou ring support

2,Product components:

Panel radiator consists of radiating llecting pipe,gas relief(oil discharge)plug,rings,connecting plates and flange plates,etc

3,Product features:

The two ends of panel radiator adopt small angle to transit towards collecting pipe,which have advantages of smooth backflow,no dead-ends of oil collecting,no oil stain remain and beautifuI shape, etc. It adopt the design of 7 oiI ducts,each duct has 2 reinforced channels , which have advantages of strong fit,small stresses afte r welding and high strength,etc.







• Cooling Finned Radiator technical specification sheet:

Power transformer cooling Finned radiator
Structural style	PC type
	PG type
	gooseneck type
Cooling Model	ONAN
	ONAF
	OFAF
Internal processing	Transformer oil flushing
Surface treatment	Painting, hot galvanizing
Fin width	310mm,320mm,460mm,480mm,520mm,535mm
Center distance	500mm-4500mm
Fin quantity	5-35
Connection mode	Round flange/flange connection , Flange dimensions according to the requirements of customers drawings or national standard
Various technical indicators of products meet the radiator industry standard “JB/T5347-1999”regulation





•  Trade Terms:



1.Payment: 1) 30% in advance, balanced 70% to be paid before dispatch.       2) L/C



2.Port of loading: Qindao  Port, Tianjin Port , Ningbo Port and Shanghai Port



3. Delivery time:10-30 days according to order quantities.

• Other related accessories for oil immersed power transformer   :





                                                                  corrugated oil tank





                                    electromagnetic wire





                               S11 series 100kva  oil immersed power  transformer





              dry type transformer shell with green painting
