Specifications
electric power transformer oil tank :1.remove burrs
2.acid cleaning
3.painting or spraying
4.drying
electric power transformer tank
- About us---- Elolam Group :
Elolam Group,initiated and established by Shandong Elolam Electric Power Technology
Company,is the short of Elolam Electric Group.
Elolam Group is in the business of designing, producing and selling of high magnetic
oriented silicon steel,fold iron steel ,roll iron steel,cable ,transformer ,and switch.
Eloam aims to provide all-round comprehensive supporting services for the large
power companies.
Eloalm Group successively established transformer manufacturing enterprises and
selling companies in the form of joint venture or cooperation in Africa,East, south
and west of Asia countries and regions .
Eloam Group therefore become a real multinational group enterprise in the power
transmission and transformation supporting industry.
Elolam Group annual meeting in 2013
- Elolam Group tranformer tank product description:

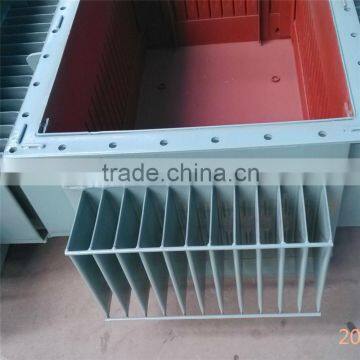

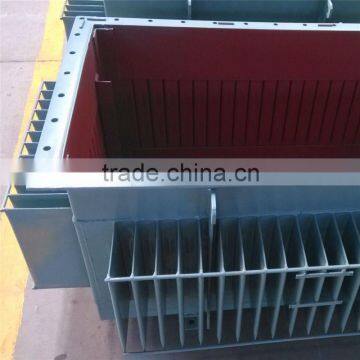

Transformer tank with corrugated walls:Tanks with corrugated walls and conservators
are tight welded and produced according to customer 's design and relevant welding
standards by experienced welders. Leak tightness tests are carried out by means of
penetrometer under pressure by using of penetration liquid.
- Corrugated tank performance description :
1. Product application
Corrugated tank is mainly used in exclusive cooling equipment of medium and small size power transformer equipment.
2. Product components
Corrugated tank mainly consists of corrugated fins, tank bottom and flange, etc.
3. Product features:
Corrugated tank adopts the corrugated cooling method which has the advantages of smooth backflow, no dead-ends of oil collecting, no oil stain remain and beautiful shape, etc. The corrugated fins number and height can be produced as per customer’s requirements.
- Detailed transformer tank technical data:
Capacity (kVA) |
Voltage |
Connection group |
No-load loss (W) |
Load loss (W) (75°C) |
Impedance voltage (%) |
No-load current (%) |
Gross Weight (kg) |
Dimension L*W*H (mm) |
||
High (kV) |
Tapping range (%) |
Low (kV) |
||||||||
30 |
20 |
±5%,±2×2.5% |
0.4 |
Yyn0 Dyn11 |
90 |
630 |
5.5 |
1.7 |
500 |
700*650*900 |
50 |
120 |
910 |
1.9 |
600 |
730*690*950 |
|||||
80 |
170 |
1300 |
1.7 |
700 |
770*720*1000 |
|||||
100 |
190 |
1570 |
1.5 |
750 |
820*715*1030 |
|||||
125 |
230 |
1880 |
1.4 |
820 |
1005*635*1045 |
|||||
160 |
270 |
2300 |
1.3 |
855 |
1080*690*1095 |
|||||
200 |
320 |
2720 |
1.2 |
1050 |
1230*815*1110 |
|||||
250 |
380 |
3180 |
1.1 |
1090 |
1260*825*1160 |
|||||
315 |
460 |
3810 |
1 |
1280 |
1270*830*1205 |
|||||
400 |
540 |
4500 |
0.9 |
1455 |
1385*895*1260 |
|||||
500 |
650 |
5380 |
0.9 |
1850 |
1435*945*1300 |
|||||
630 |
770 |
6480 |
6 |
0.8 |
2135 |
1560*1015*1335 |
||||
800 |
930 |
7840 |
0.7 |
2550 |
1625*1060*1400 |
|||||
1000 |
1090 |
10760 |
0.6 |
2700 |
1800*1200*1700 |
|||||
1250 |
129 |
12540 |
0.5 |
3000 |
1820*1265*1580 |
|||||
1600 |
1560 |
15150 |
0.5 |
3400 |
1860*1290*1730 |
|||||
2000 |
1850 |
18180 |
0.5 |
4050 |
1950*1290*1900 |
|||||
2500 |
2220 |
21100 |
0.5 |
5500 |
2190*2450*2500 |
|||||

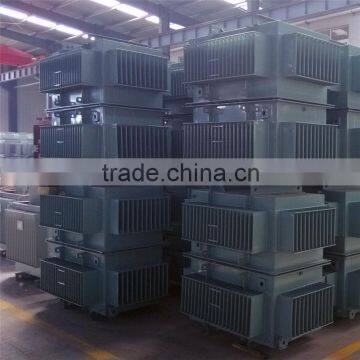

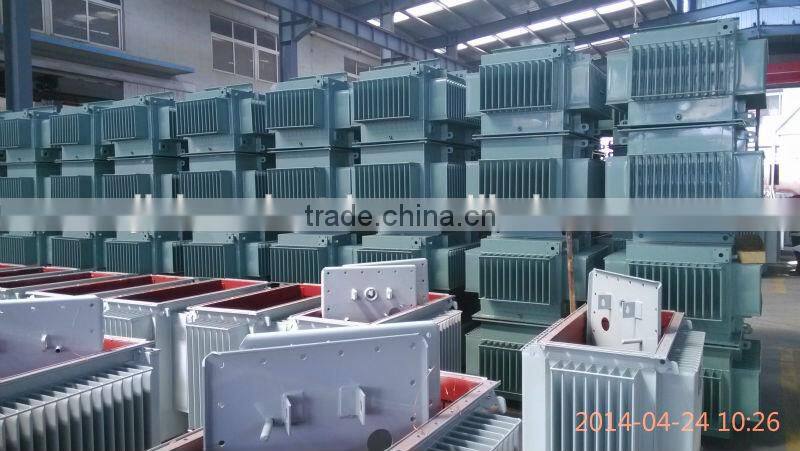

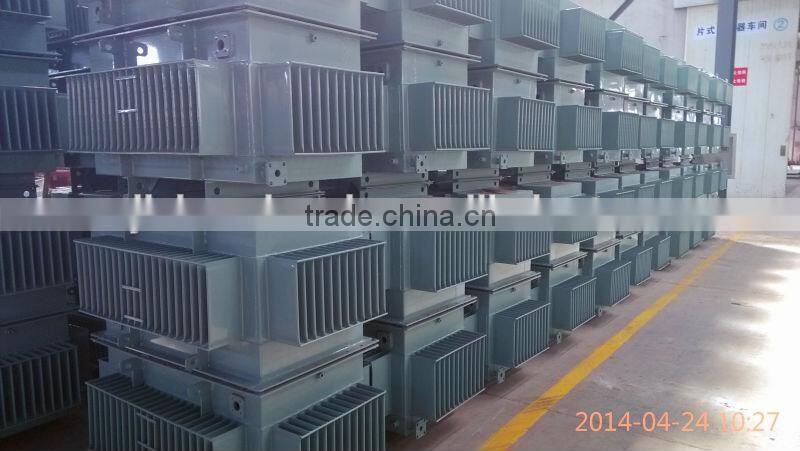

- corrugated oil tank for transformer products working place :
- Trade Terms:
1.Payment: 1) 30% in advance, balanced 70% to be paid before dispatch. 2) L/C
2.Port of loading: Qindao Port, Tianjin Port , Ningbo Port and Shanghai Port
3. Delivery time:10-30 days according to order quantities.
- Other related accessories for oil immersed power transformer :
cooling finned radiator
electromagnetic wire
S11 series 100kva oil immersed power transformer

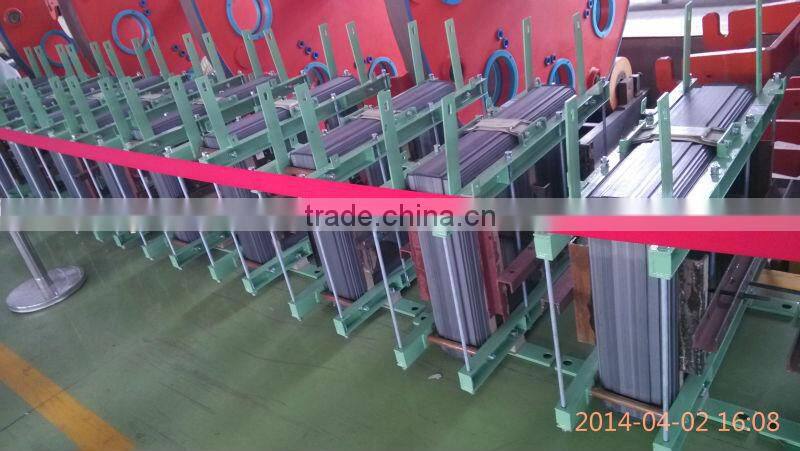

iron silicon core
