Specifications
high and stable quality and good serviceCooling Finned Radiator For Transformer for sale
- About us---- Elolam Group :
Elolam Group,initiated and established by Shandong Elolam Electric Power Technology
Company,is the short of Elolam Electric Group.
Elolam Group is in the business of designing, producing and selling of high magnetic
oriented silicon steel,fold iron steel ,roll iron steel,cable ,transformer ,and switch.
Eloam aims to provide all-round comprehensive supporting services for the large
power companies.
Eloalm Group successively established transformer manufacturing enterprises and
selling companies in the form of joint venture or cooperation in Africa,East, south
and west of Asia countries and regions .
Eloam Group therefore become a real multinational group enterprise in the power
transmission and transformation supporting industry.
Elolam Group annual meeting in 2013

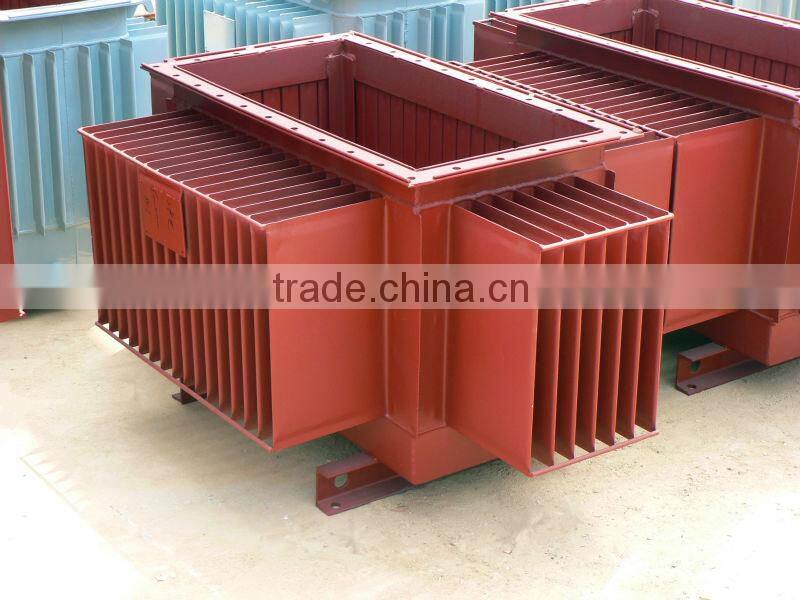

- Panel radiator performance description:
1,Product application:
Panel radiator is exclusive cooling device,which is mainly used to large,medium size power equipments,such as power transformer, reactor and so on. It can be connected on the flange of above mentioned power equipments or independently installed the neighbou ring support
2,Product components:
Panel radiator consists of radiating flns.collecting pipe,gas relief(oil discharge)plug,rings,connecting plates and flange plates,etc
3,Product features:
The two ends of panel radiator adopt small angle to transit towards collecting pipe,which have advantages of smooth backflow,no dead-ends of oil collecting,no oil stain remain and beautifuI shape, etc. It adopt the design of 7 oiI ducts,each duct has 2 reinforced channels , which have advantages of strong fit,small stresses afte r welding and high strength,etc.
- Cooling Finned Radiator technical specification sheet:
Finned radiator | |
Structural style | PC |
PG | |
Cooling Model | ONAN |
ONAF | |
OFAF | |
Internal processing | Transformer oil flushing |
Surface treatment | Painting, hot galvanizing |
Fin width | 310mm,320mm,460mm,480mm,520mm,535mm |
Center distance | 500mm-4500mm |
Fin quantity | 5-35 |
Connection mode | Round flange/flange connection , Flange dimensions according to the requirements of customers drawings or national standard |
Various technical indicators of products meet the radiator industry standard “JB/T5347-1999”regulation | |
- Trade Terms:
1.Payment: 1) 30% in advance, balanced 70% to be paid before dispatch. 2) L/C
2.Port of loading: Qindao Port, Tianjin Port , Ningbo Port and Shanghai Port
3. Delivery time:10-30 days according to order quantities.
- Other related accessories for oil immersed power transformer :
corrugated oil tank

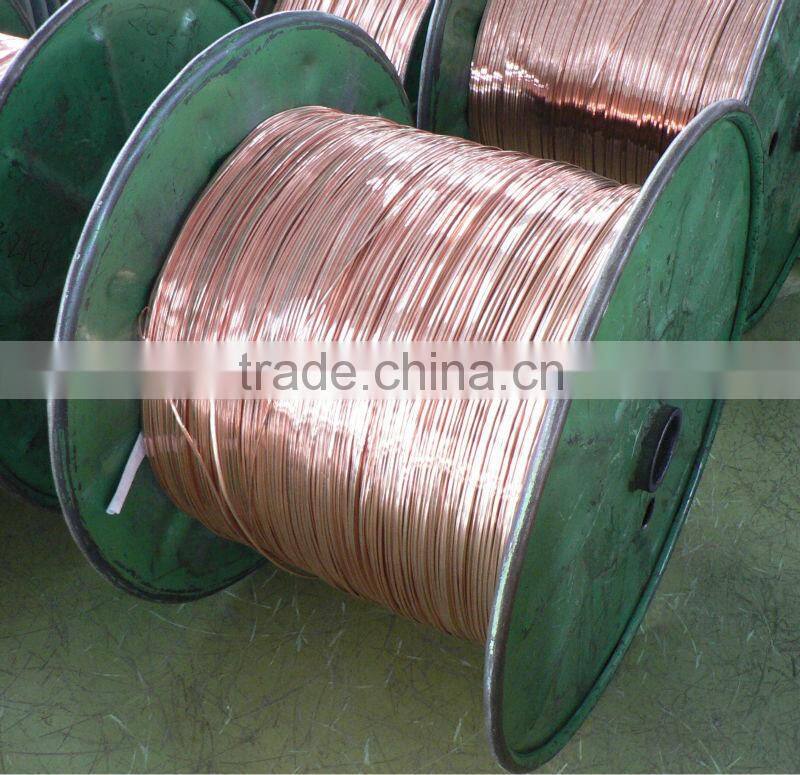

electromagnetic wire
power transformer body

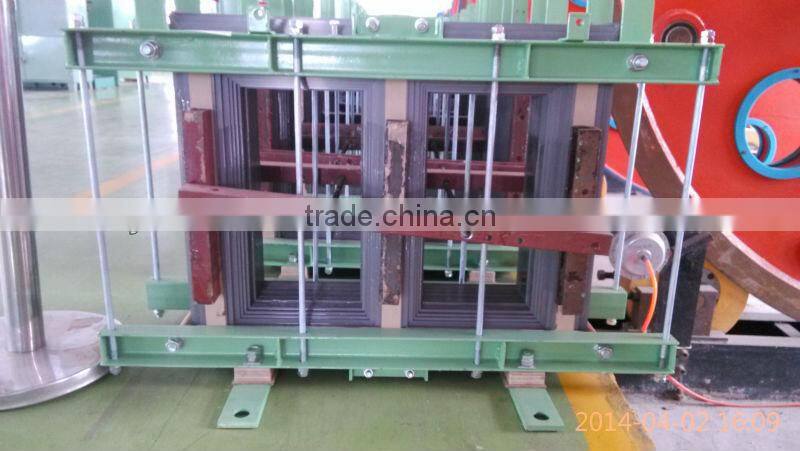

iron silicon core
