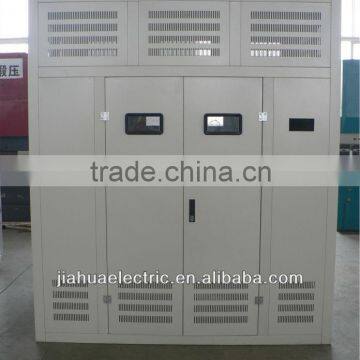

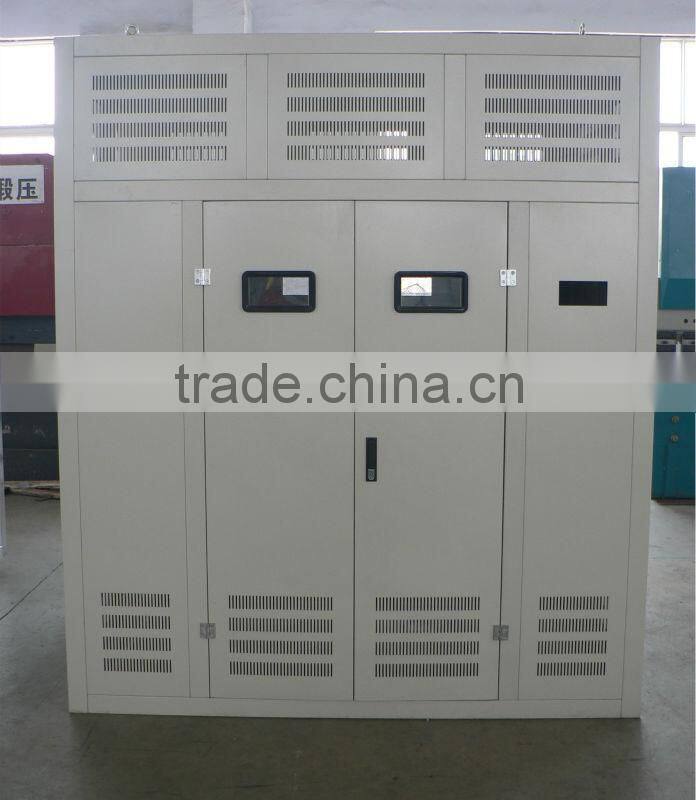

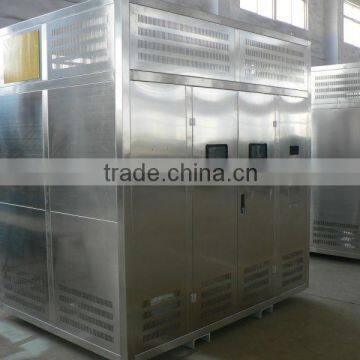

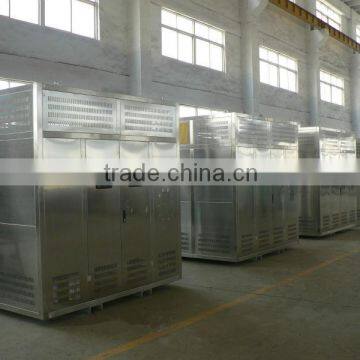

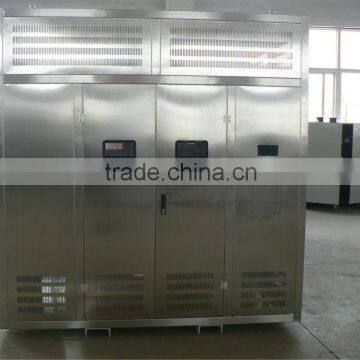

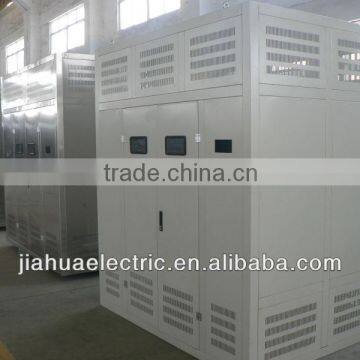

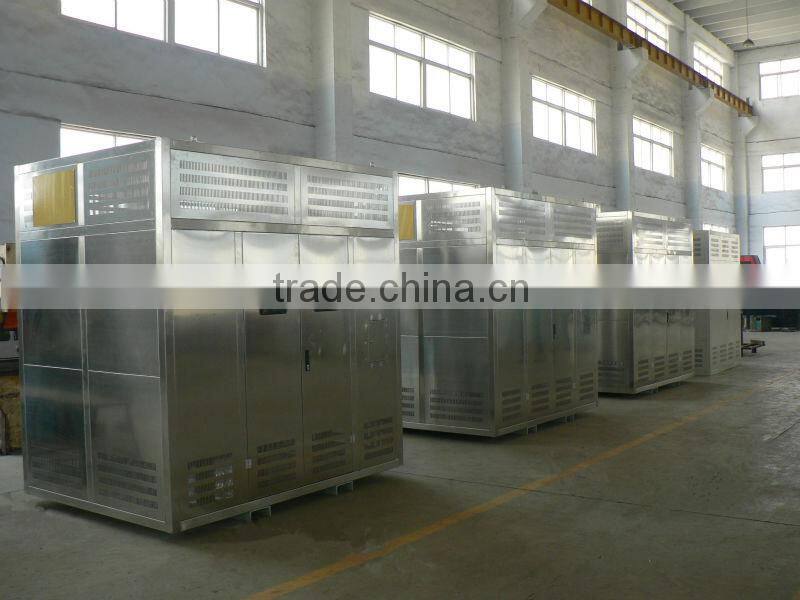

Power Distribution Cabinet for transformer

Specifications

All kinds of power distribution cabinet, good quality and best cost performance. Made by your special speciafications...

                    Power Distribution Cabinet for transformer

• About us---- Elolam Group :

Elolam Group,initiated and established by Shandong Elolam Electric Power Technology

Company,is the short of Elolam Electric Group.

Elolam Group is in the business of designing, producing and selling of high magnetic

oriented silicon steel,fold iron steel ,roll iron steel,cable ,transformer ,and switch.

Eloam aims to provide all-round comprehensive supporting services for the  large

power companies.



Eloalm Group successively established transformer manufacturing enterprises and

selling companies in the form of joint venture or cooperation in Africa,East, south

and west of Asia countries and regions .

Eloam Group therefore become a real multinational group enterprise in the power

transmission and transformation supporting industry.





                                              Elolam Group annual meeting in 2013

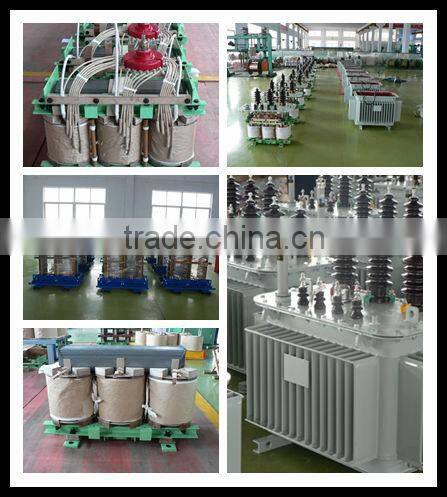

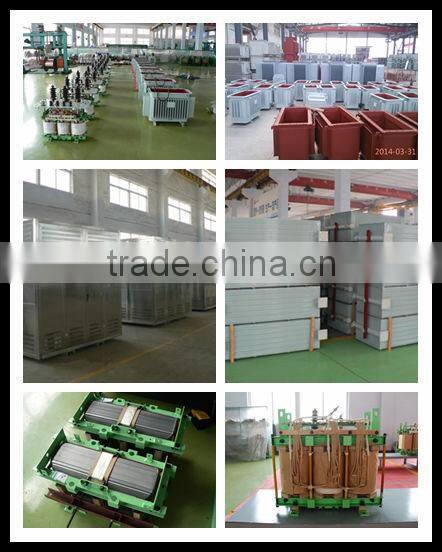

•  Elolam Group tranformer tank product description:

Transformer tank with corrugated walls:Tanks with corrugated walls and  conservators

are tight welded and produced according to customer 's design and relevant welding

standards by experienced welders. Leak tightness tests are carried out by means of

penetrometer under pressure by using of penetration liquid.







• Detailed transformer tank technical data:



Capacity (kVA)	Voltage			Connection group	No-load loss (W)	Load loss (W) (75°C)	Impedance voltage (%)	No-load current (%)	Gross Weight (kg)	Dimension L*W*H (mm)
	High (kV)	Tapping range (%)	Low (kV)
30	20	±5%,±2×2.5%	0.4	Yyn0 Dyn11	90	630	5.5	1.7	500	700*650*900
50					120	910		1.9	600	730*690*950
80					170	1300		1.7	700	770*720*1000
100					190	1570		1.5	750	820*715*1030
125					230	1880		1.4	820	1005*635*1045
160					270	2300		1.3	855	1080*690*1095
200					320	2720		1.2	1050	1230*815*1110
250					380	3180		1.1	1090	1260*825*1160
315					460	3810		1	1280	1270*830*1205
400					540	4500		0.9	1455	1385*895*1260
500					650	5380		0.9	1850	1435*945*1300
630					770	6480	6	0.8	2135	1560*1015*1335
800					930	7840		0.7	2550	1625*1060*1400
1000					1090	10760		0.6	2700	1800*1200*1700
1250					129	12540		0.5	3000	1820*1265*1580
1600					1560	15150		0.5	3400	1860*1290*1730
2000					1850	18180		0.5	4050	1950*1290*1900
2500					2220	21100		0.5	5500	2190*2450*2500





































































•  Trade Terms:



1.Payment: 1) 30% in advance, balanced 70% to be paid before dispatch.       2) L/C



2.Port of loading: Qindao  Port, Tianjin Port , Ningbo Port and Shanghai Port



3. Delivery time:10-30 days according to order quantities.



4.Minimum order quantity: 5 tons
