Black Face White Lens Green Emitting Color 2.5 mm Pitch 8*8 Dots 20*20 mm LED Dot Matrix Display

Black Face White Lens Green Emitting Color 2.5 mm Pitch 8*8 Dots 20*20 mm LED Dot Matrix Display thumbnail-1
Black Face White Lens Green Emitting Color 2.5 mm Pitch 8*8 Dots 20*20 mm LED Dot Matrix Display thumbnail-2

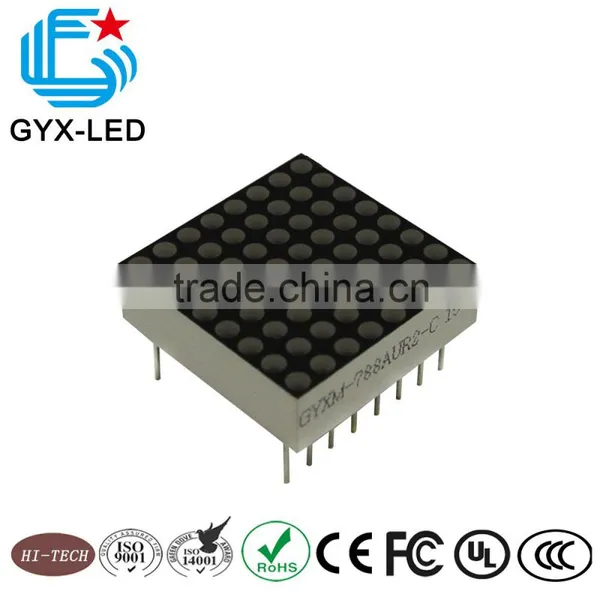

Black Face White Lens Green Emitting Color 2.5 mm Pitch 8*8 Dots 20*20 mm LED Dot Matrix Display photo-1

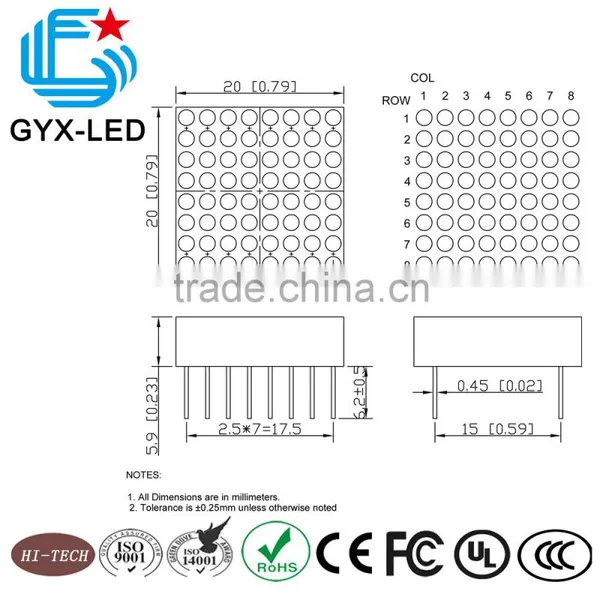

Black Face White Lens Green Emitting Color 2.5 mm Pitch 8*8 Dots 20*20 mm LED Dot Matrix Display photo-2
US$ 0.1 - 3 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GYX
Model Number:
GYXM-788AG
Contact Supplier Request Quote Chat Now
Shenzhen GYX Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GYX
Model Number GYXM-788AG
Usage Indoor
Tube Chip Color Green
Display Function Graphics
Pixels Other, 2.5mm
Screen Dimension 20*20mm
Product Description

Dot Matrix LED Displays are capable of displaying a full range of alphanumeric characters and simple graphics when assembled in panels.





Specifications:



Standard products are available for choose with different size, dot array, dot size, color, also the custom products are available for design and produce.



Dot size: Φ2.1, Φ2.97, Φ3.0,Φ3.7, Φ4.8, Φ5.0,Φ7.62, Φ10

Dot array: 5 x 8, 5 x 7, 8 x 8

Display size: 23.4*37.4mm, 25.19*42.79mm, 32*32mm, 37.7*37.7mm,38.1*53.3mm, 47.8*47.8mm, 48*48mm, 50.7*50.7mm, 60.5*60.5mm (0.7 inch, 1.3 inch, 1.5 inch, 1.9 inch, 2.3 inch, 5.1 inch )

Color: red, green, yellow, blue, orange, amber, bi-color, tri-color

Pitch:  2.5mm, 4.0mm, 4.6mm, 4.7mm, 4.75mm, 6.0mm, 6.35mm, 7.62mm

Surface: white, black or gray surface

Face Point Color: Gray or black

Polarity: Common Anode/Cathode

Emitting colors: Red / Yellow green / Yellow / Amber / Blue / White / Pure green





Features:

  • Viewable up to 12 meters
  • X-Y stackable
  • Industry standard pin out, dual in line (DIP) leads on 2.54mm (0.1 in.) centers
  • Low forward voltage
  • Low power consumption
  • High luminous intensity output
  • Categorized for luminous intensity
  • High efficiency
  • Uniform brightness
  • Easy mounting on printed circuit board and sockets
  • IC compatible
  • Good display and wide visual angle
  • Rohs and Reach compliant
Product Details

General Information

Part No.

Chip Material

Emitting Color

Lens Type

Description



InGaAlP/GaN/InGaN

 Red/ orange/yellow/green/ blue / purple.

Water clear/Diffused





Electrical / Optical Characteristics at TA=25ºC

Parameter

Symbol



Value



Units



TestConditions



Forward Voltage

VF



V

IF=20mA

Peak Wavelength

λp



nm

IF=20mA

Dominate Wavelength

λD



nm

IF=20mA

Spectral Line Half-width

Δλ



nm

IF=20mA

Reverse Current

IR



uA

VR=5V



Absolute Maximum Ratings at TA=25ºC

Parameter

Symbo

Maximum Rating

Units

Power dissipation

Pd

70-90

mW

Forward Current

IF

20-30

mA

Peak Forward Current (1)

IF(Peak)

100-130

mA

Reverse Voltage

VR

5

V

Operating Temperature

Topr

-35ºC  To  +80ºC

Storage Temperature

Tstg

-35ºC  To  +80ºC

Lead Solder Temperature(2)

Tsol

260ºC for 3 seconds

Note:

  1. 1.       1/10 Duty Cycle, 0.1ms Pulse Width.
  2. 2.       2mm below package base.


black face white lens green emitting color 2.5 mm pitch 8*8 dots 20*20 mm LED dot matrix display

Application
  • Airport, train and bus station display panels
  • Electronic message centers – Stock market, department stores, stadiums, banks and cafes
  • Safety Signage – Factories and Hospitals
  • Automotive advertising screen
  • Audio equipment or instrument panels
  • Multimedia products
  • Indoor and outdoor display
  • General use for digital indicators
