Hot sale longspan shelving

Specifications

Longspan shelving consist of upright,beams,panel brackets and panels
Easily adjustable in 50mm step distance, widely usage

Hot sale longspan shelving

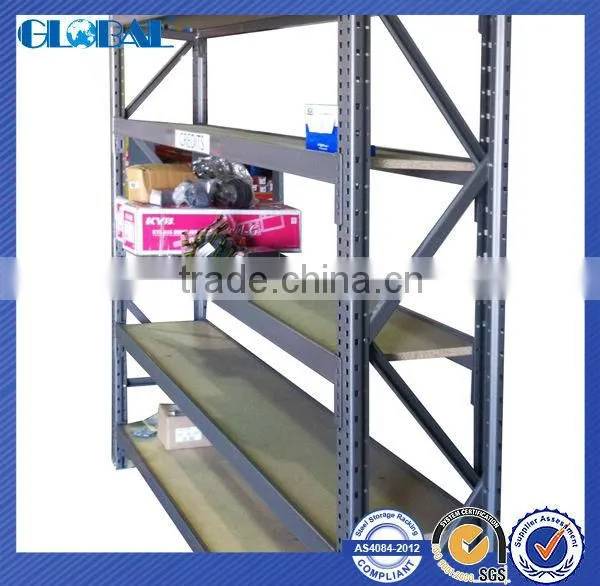

Warehouse longspan shelving



Shelf structure:

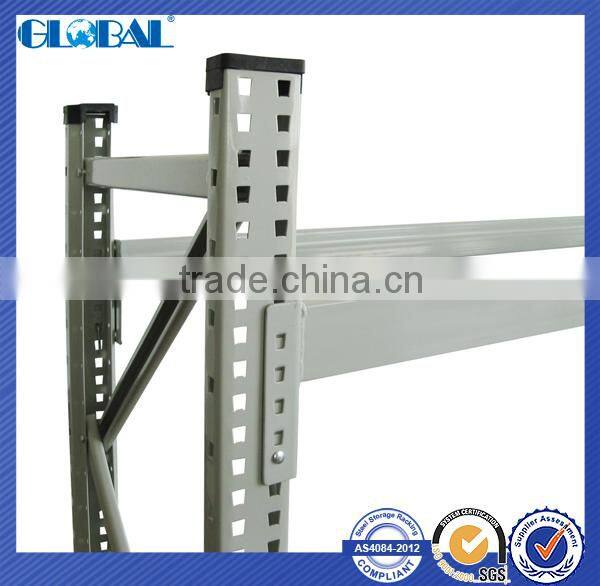

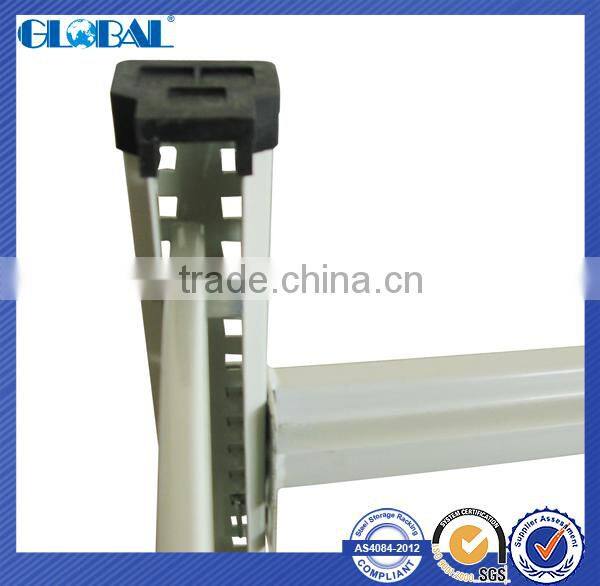

1, columns made from cold rolled steel, its positive double punch holes, hole distance 50mm, hole used to mount the beam columns for use; column connecting pipe pieces include horizontal, inclined connecting pipe, the two column and all the bolt root.

2, beams with "P"-type pipe, commonly known as "ladder beam", step height and the height of laminate to match.

3, the steel plate cold rolled steel plate bending forming four sides of the desired size.

4, the beams and columns into the framework of the film mount assembly, and finally the laying of steel plate

5, the shelf parts good shape after processing all polished, acid, phosphate, automatic powder coating, drying process finished after assembly .

     The surface of the shelf products to produce clean, beautiful; shelves up and down by 50mm pitch layer can be adjusted, to facilitate entry

MainFrame:

two frames (one frame: Add a few horizontal pull the two cable-stayed columns.)

Beam (one layer have two beams.) Shleves (shelves are placed on top of two beams.)

Subframe:

one frame (a frame: Add a few horizontal pull the two cable-stayed columns.) beam (layer have two beams.) Shleves (shelves are placed on top of two beams.)

Longspan shelf Scope:

1, It usually for small parts, heavy goods storage, the default load-bearing layer in the 150kg-600kg range.

2,It is widely used in human, manual handling, storage and selection operations based on various occasions such as storage and display.
