High Quality China Warehouse Rivet Shelving

Specifications

High quality and light-load-capacity Shelving system suitable for low cost situations, fast assembly, safe&strong, adjustable

 High Quality China Warehouse Rivet Shelving

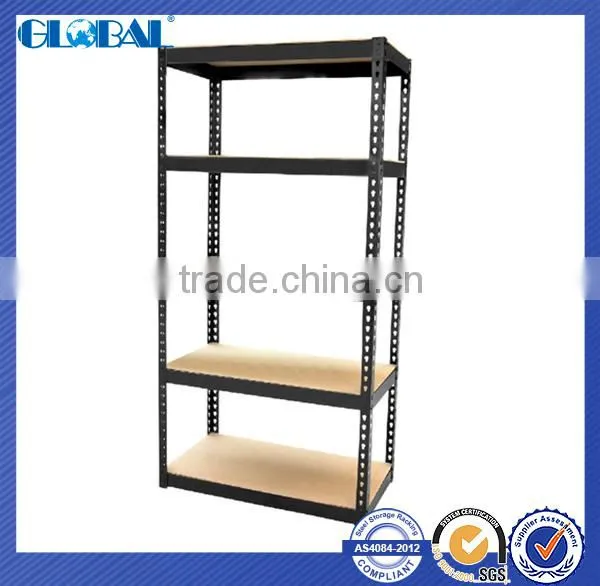

GLOBAL Rivet Shelving is a high quality, light-load-capacity Shelving system suitable for low cost situations .The boltless design ensures fast assembly .Featuring Z-formed Beams incorporating a 16mm step ,the edge of the board is hidden behind the steel beam, making the shelving safe and strong.

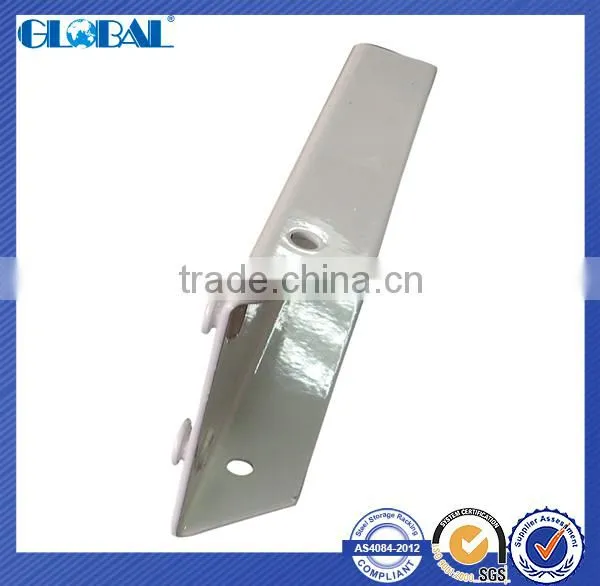

An angle post upright is used in each corner of the shelving bay,allowing beams to be fitted in the left-to-right and front-to-back directions. This enables the shelving to be built as single bay units, for ease of relocation at a later date if necessary.The decking panel is supported on four edges, giving greater strength with less deflection.



• Steel Components are powder coated light grey or darker grey
• Standard height of many types,with beam adjustment at 38.1mm centres.
• Shelf widths (left-to-right Direction) of 720mm,900mm,1200mm,1500mm and 1800mm
• Shelf Depths ( front-to-back Direction) 300mm,450mm,600mm,900mm and 1200mm
• Although designed as stand-alone bays, units can be joined for continuity
• Other Sizes are available .



GLOBAL can Design the Package

For rivet shelving systems, we provide pre-packaged service to distributors, to supply rivet shelving and timber board pre-packaged together. Each unit would be packed in an individual carton.Carton would contain uprights, beams,and shelves,together with timber board.We will offer assembly instructions on each carton.We feel this offers our distributors the ideal solution to brand these products for your region without the hassle of doing it yourself.

List of Parts in a carton :

8 x Angle Posts

4 x Leg Joiners

4 x MDF Shelves

8 x Plastic Feet

8 x Long Z Beams

8 x Short Z Beams
