Die board laser cutting machine for sale
OEM available& Factory price
Co2 laser cutting and engraving machine-----DX-L1290
perfectly cut, engraved and marked with CO2 lasers
- perfectly clean, smooth and precise edges for difficult geometries
- extremely high cutting speed
- easy handling of machine
- feature "nesting" guarantees most efficient use of materials
- highly economical
high precision , stable performance, simple operation , convenient maintenance, no sawdust contamination, no tool wear and also no need to replace the tool, no noise pollution
Applicable Materials:
Leather,cloth,wool,fur,acrylic,Plexiglas,wooden board,plastic,resin,rubber,bamboo product,double color board,marble,paper,and other non-metal materials.
Applicable Industry:
Advertising,construction,building decoration,furniture,toys,vessel mould,textile,packaging and paper,leather industry etc.
Parameter:
Laser Power |
80W (optional) |
Laser Type |
Hermetic CO2 glass tube |
Power Supply |
AC220±10% 50HZ / AC110±10% 60HZ |
Working Area |
1200*900mm |
Max Moving Speed |
0-25000mm/min |
Worktable |
honeycomb worktable/ up&down worktable/ aluminium knife(optional) |
Locating Precision |
<0.01mm |
Min Shaping Character |
Character 3×3mm Letter:2×2mm |
Operating Temperature |
5°C-35°C |
Resolution ratio |
≤4500dpi |
Control Configuration |
DSP |
Data transfer Interface |
USB(offline) |
System Environment |
WINDOWS 2000/ WINDOWS XP/Visa/win7 |
Cooling Way |
Water Cooling and Protection System |
Graphic Format Supported |
files which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,etc.) |
Compatible Software |
CorelDraw, AutoCAD |
Cutting Thickness |
0–20mm(depends on different material) |
Color Separation |
Separation of cutting up to 256 colors |
Sloping Engraving |
Yes, slope can be designed discretionarily |
|
Cuts off the water supply the protection |
Yes |
Packing |
plywood case or according to customer’s request |
Net Weight/Gross Weight |
380/430kg |
Machine Dimension |
1980*1300*1120mm |
Package Dimension |
2100*1700*1300mm |
Optional parts |
High-grade cooling system/imported focus lens/double head/cylinder rotary attachment/irregular rotary attachment |
Products samples:
Other products sample of the model:

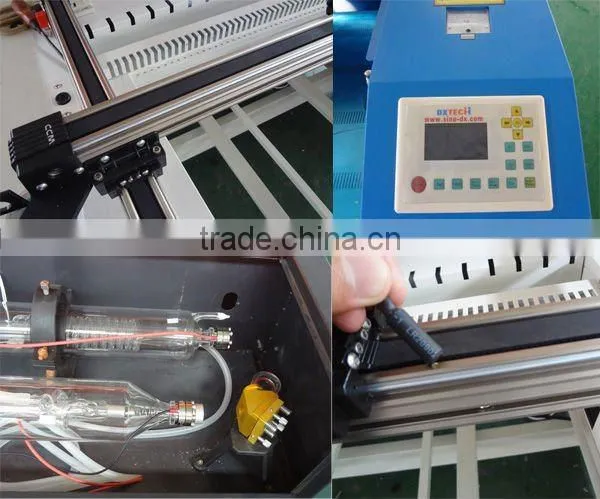

We have equipped each machine with high quality parts:
Our service
A Guarantee:
18 months for the whole machine.
Within 18 months under normal use and maintenance, if something is wrong with machine, you will get spare part for free.;
Out of 18 months, you will get spare part at cost price. You will also get technical support and service all the lifetime.
B Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
C After sales services:
Normal machine is properly adjusted before dispatch.You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.
We are looking for agents from all over the world, welcome to be one of us!!
