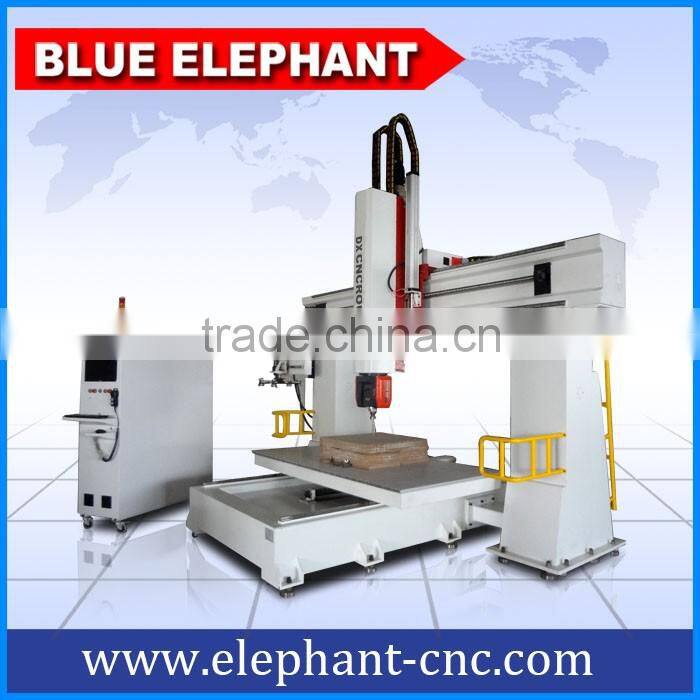

OSAI controller 5-axis machining center with italy spindle
5 axis cnc router, 4 axis cnc router, hot sale type for 3d/4d moulds making. hot sale!
5 axis cnc router machining features:
1, With OSAI numerical control system, high machining accuracy and high speed. The Japan THK rails.and the
Germany original rotating arm ensure the accuracy and strength of the mechanical
2, Z-axis travel can be heightened to 2.1 meters, so that very suitable for processing large-scale three-dimensional
surface.. Intelligent processing cross-border protection function can prevent mechanical collision due to excessive
processing of design file.
3, Diversified control processing speed can control the working speed, traveling speed, dropping tool speed, lowering
tool speed, greatly improve the quality and efficiency
5-axis cnc routers machine technical datas
NO | Parameters | Description | |
01 | Model | DX-1224 5 Axis cnc | |
02 | Movement type | Movable table | |
03 | X axis travel(mm) | 2440 | |
04 | Y axis travel(mm) | 1220 | |
05 | Z axis travel(mm) | 900 | |
06 | C traveling | ±180° | |
07 | A traveling | ±112.5° | |
08 | Beam spacing(mm) | 4260 | |
09 | Beam height(mm) | 2150 | |
10 | Vacuum pump | Germany Becker pump | |
11 | Supplier for double pendulum head | 12kw Italy HSD spindle | |
12 | Range of speeds | 24000RPM | |
13 | Servo motor brand | Japan YASKAWA servo motor | |
14 | Table size (mm) | 1220x2440 | |
15 | Product fixed form | Vacuum table | |
16 | Tool magazine | Round tool magazine (with 8 positions) | |
17 | Control system | OSAI | |
18 | Machine size | 4260x2150x3300mm | |
19 | Total weight | 12T | |
20 | Total power (kw) | 24KW | |
21 | Voltage | AC 380V 60Hz | |
22 | Max lifting weights | 20T | |
23 | File exchange | G code | |
24 |
Maximum speed | X axis | 45m/min |
Y axis | 45m/min | ||
Z axis | 20m/min | ||
C axis | 20m/mim | ||
A axis | 20m/min | ||
25 | Guarantee time | One year of guarantee in case of non-human damage | |
26 | Option items | Change 3kw double packet dust collector to 5.5kw double bag | |
Original Alphacam software | |||
Rotary device | |||
27 | Color | For your option | |
Applicable industries Mold industry:( OSAI controller 5-axis cnc machining center for DX 1224 )
OSAI controller 5-axis machining center with italy spindle is suitable for various large metalloid mould, especially suitable for automotive foam mold,
wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.Instrument industry, 3D surface
engraving and shape cutting of large-scale instruments.
Our company has obtained CE, FDA and ISO certificates. 10 years' professional cnc router manufacturer in China
We promise to provide high quality product with competitive price!! welcome to visit our factory!
Free training in our factory!!!
-------------------------------------------------------------------------------------
